[Guide] Install Diagnostics - ADA Board Not Detected

Updated

  1. Open the door.

    • If the door is not already open, touch “Open Door” in the upper right corner of the screen.

  2. Remove the cover from the Restock Board on the door.

    • Remove the single phillips screw at the bottom of the cover.
    • Gently remove the cover and place to the side.

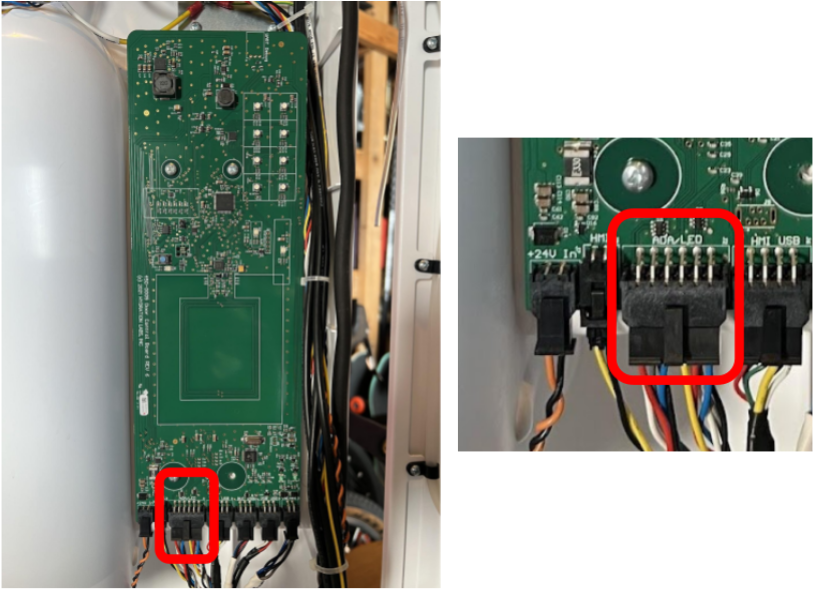

  1. Inspect the ADA/LED connector on the Door Board.

    • The black plastic ADA/LED cable connector is at the bottom of the Door Board, third from the left.
    • Verify that the cable connector is fully seated into the connector on the Door Board.
    • Inspect the connector and entire cable length for any damage.
    • Carefully disconnect, and reconnect the ADA/LED cable.

  1. Check connection at the ADA board

    • The ADA Board connector is located on the inside of the door, directly below the dispense area.
    • Verify that the cable is fully seated into the connector on the Door Board.
    • Inspect the connector and along the entire length of the cable for any damage.
    • Carefully disconnect, and reconnect the ADA cable.

  1. Restart the Diagnostic Test.

    • ✔️If the test passes, continue with installation.
    • ✖️If the LED board is still not detected, please contact Bevi Support at 866-704-2384.
    • Note: This will not block install, you will still be able to proceed with installation.
