[Guide] Bevi Standup 2.0 - Remove & Replace Buffer Tank

In this Article (click to jump):

• Required Tools & Materials
• Removing the Buffer Tank
• Installing the new Buffer Tank
• Testing Function & Completing Service

Required Tools & Materials

• Buffer Tank with 3/8” Fittings (FRU P/N #720-0060)
• 24” replacement tie wraps (included in the FRU order)
• Snips to clip existing tie wraps
• #2 Stubby Phillips Screwdriver
• #3 Phillips Screwdriver or 3/8" Wrench

Removing the Buffer Tank

Task 1: Access the Service Panel

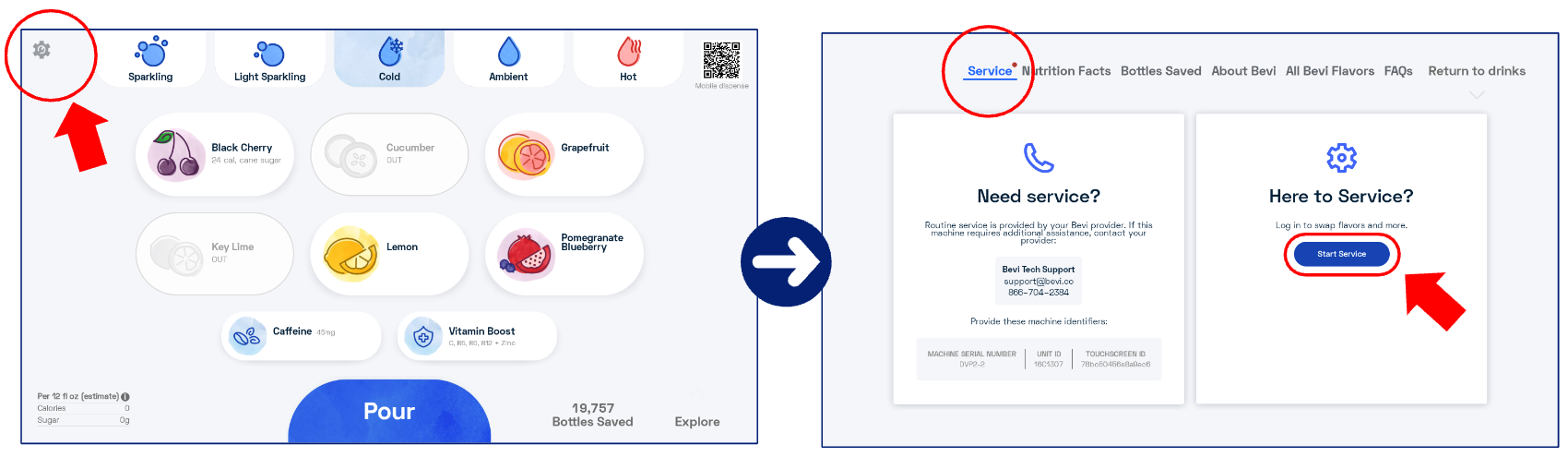

1. Tap the Service Icon in the upper left corner of the main dispense screen.
2. Tap “Start Service”
3. Enter the PIN (1986) to access the service panel. The door should automatically open.
   • If on another screen, select the “Service” tab.
4. Door will open automatically. You can also press the “open door” button onscreen if needed.

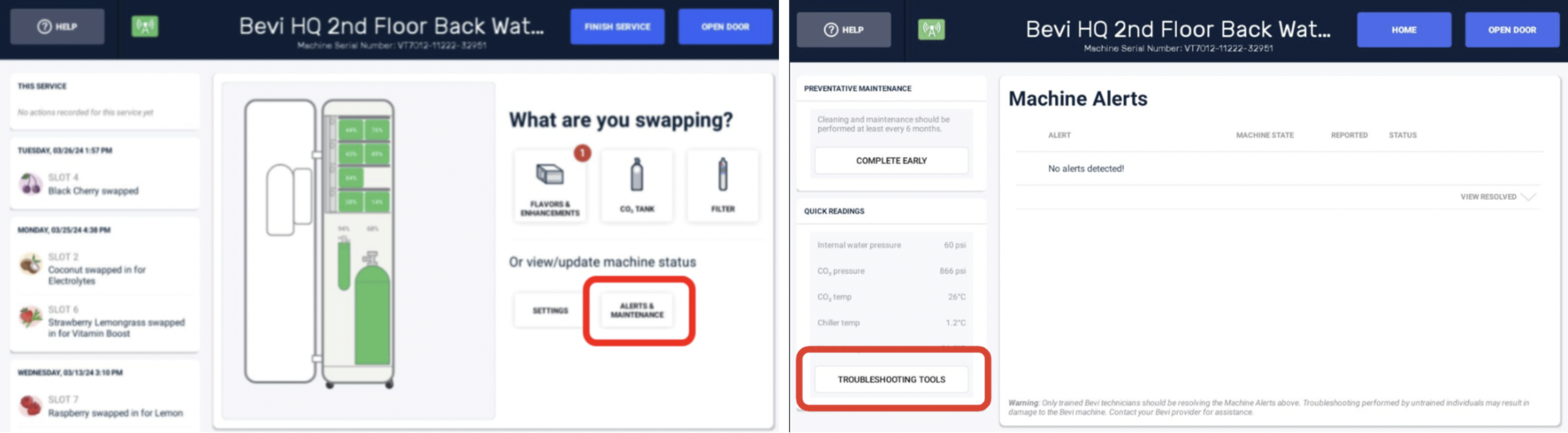

5. From the service panel, access the Troubleshooting Tools screen.
   • Tap “Alerts and Maintenance”
   • Tap “Troubleshooting Tools”

Task 2: Turn off the Water Supply.

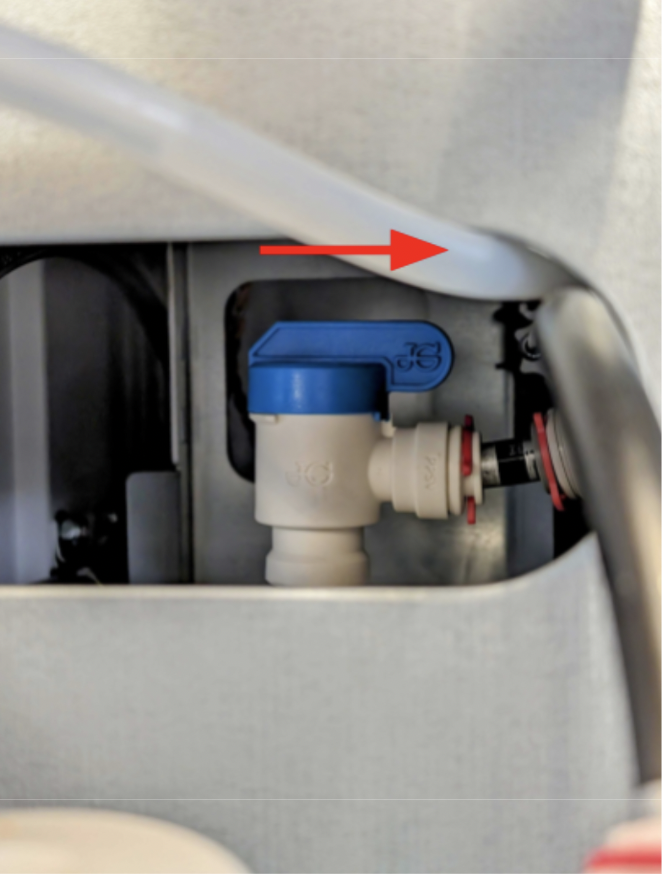

1. Locate the shutoff valve on the water supply behind the Bevi.
2. Close the shutoff valve by turning the blue handle 90 degrees.

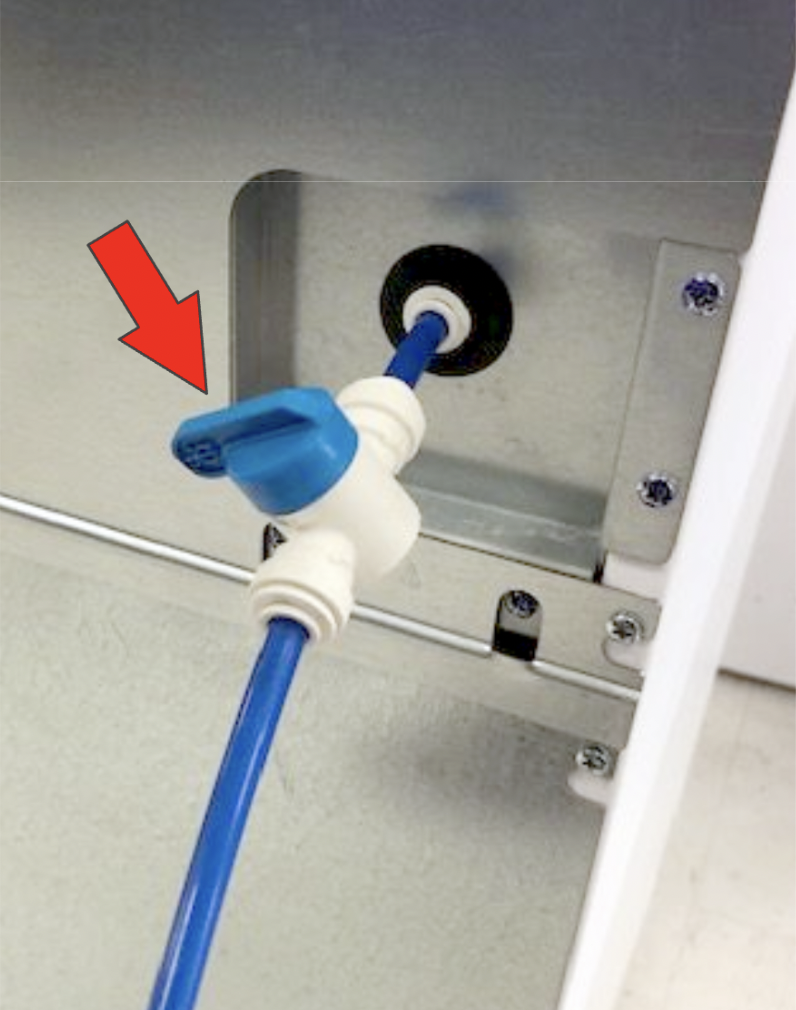

Shutoff shown in closed position.

Task 3: Drain the Buffer Tank and Depressurize the Water Line.

1. With the door open, ensure the Buffer Tank valve is in the open position.

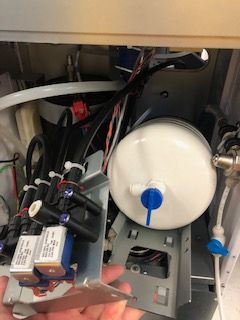

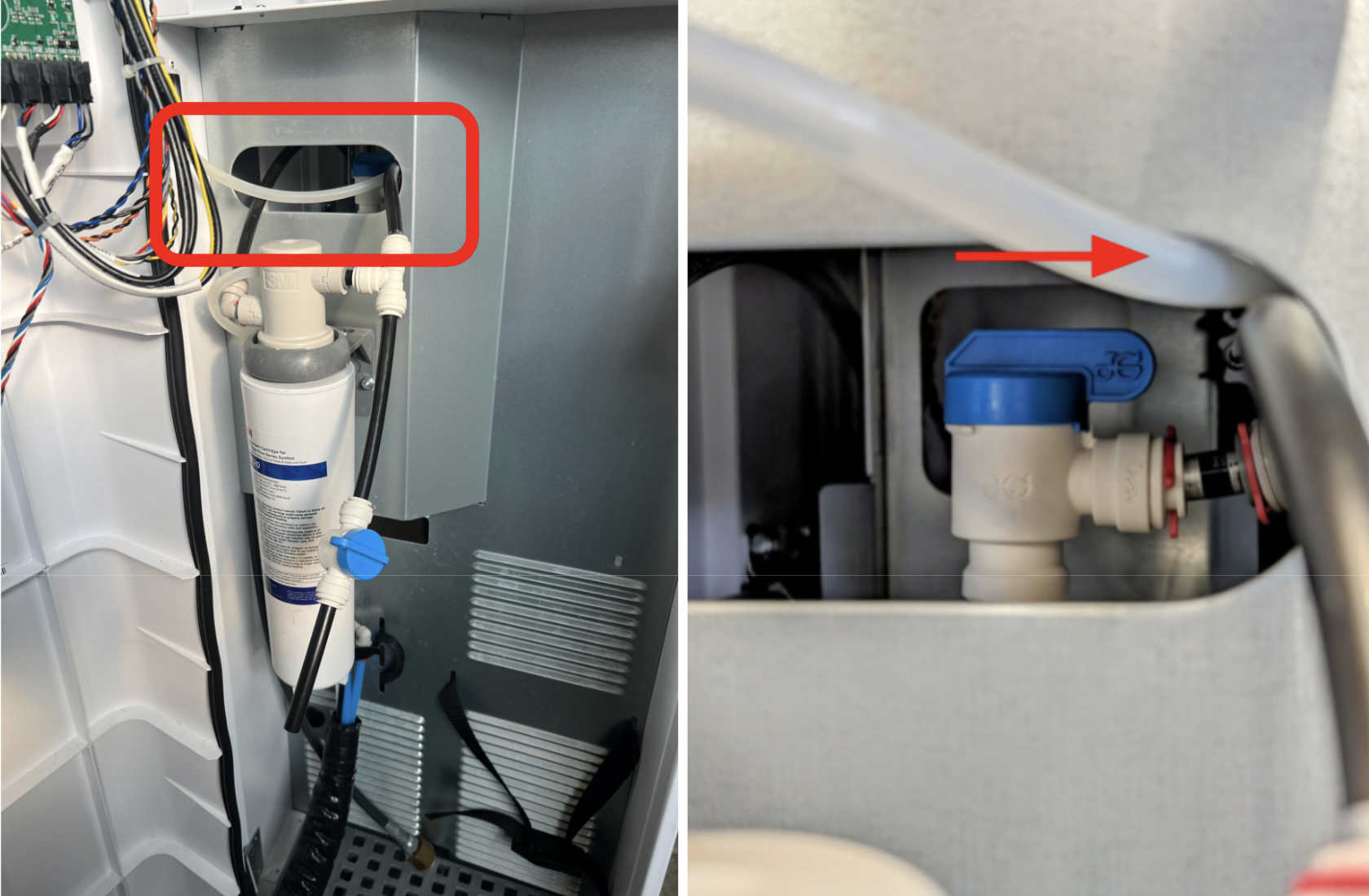

   • The Buffer Tank can be accessed through the hole just above the filter head.
   • The valve should be pointing to the RIGHT when open.

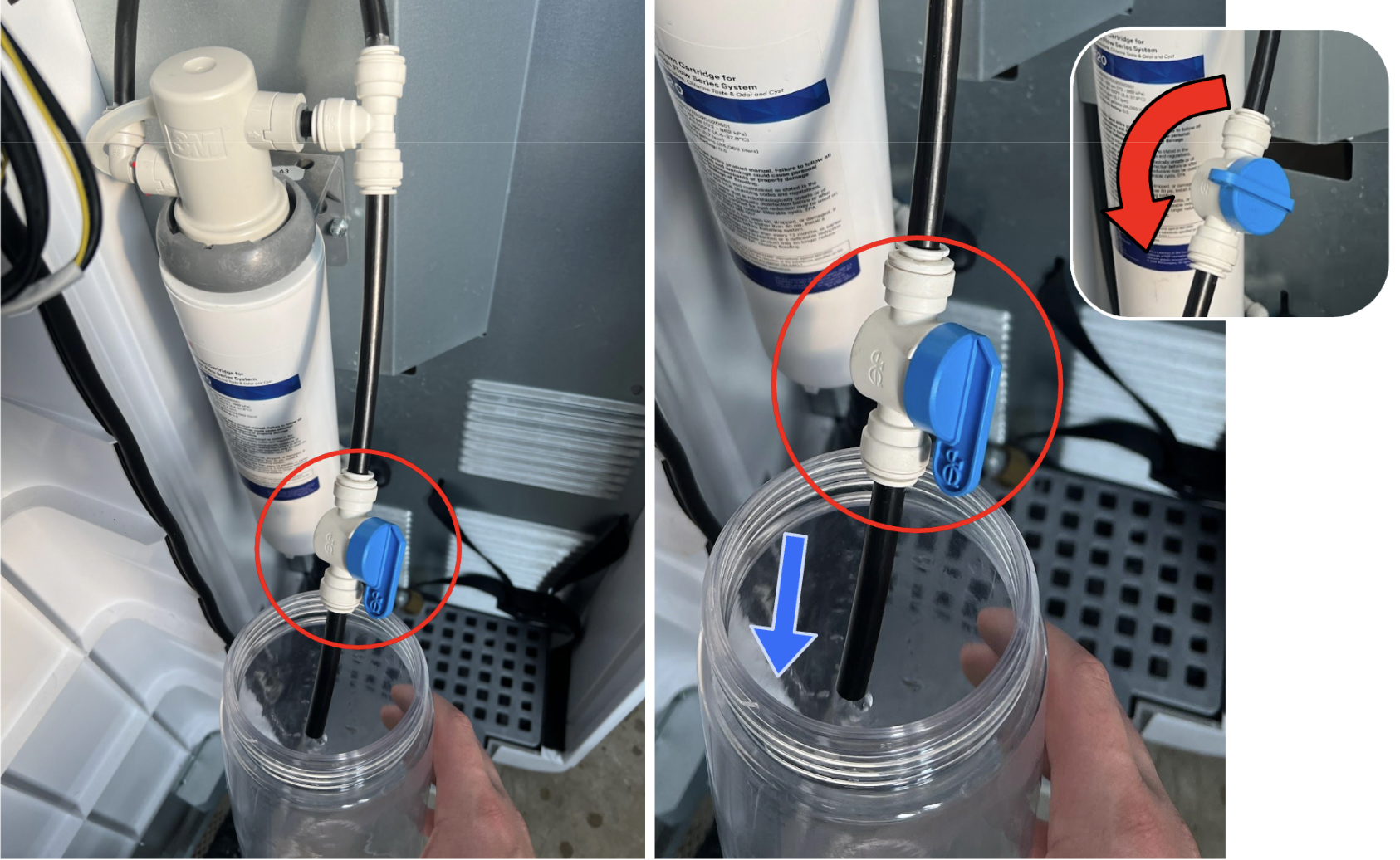

2. Place a bucket under the Filter Flush Valve, and open the shutoff valve by turning 90 degrees.
3. Allow the Buffer Tank to drain until no water is coming from the Filter Flush Valve.
   • Once the Buffer tank has been drained, close both the Filter Flush and Buffer Tank valves.

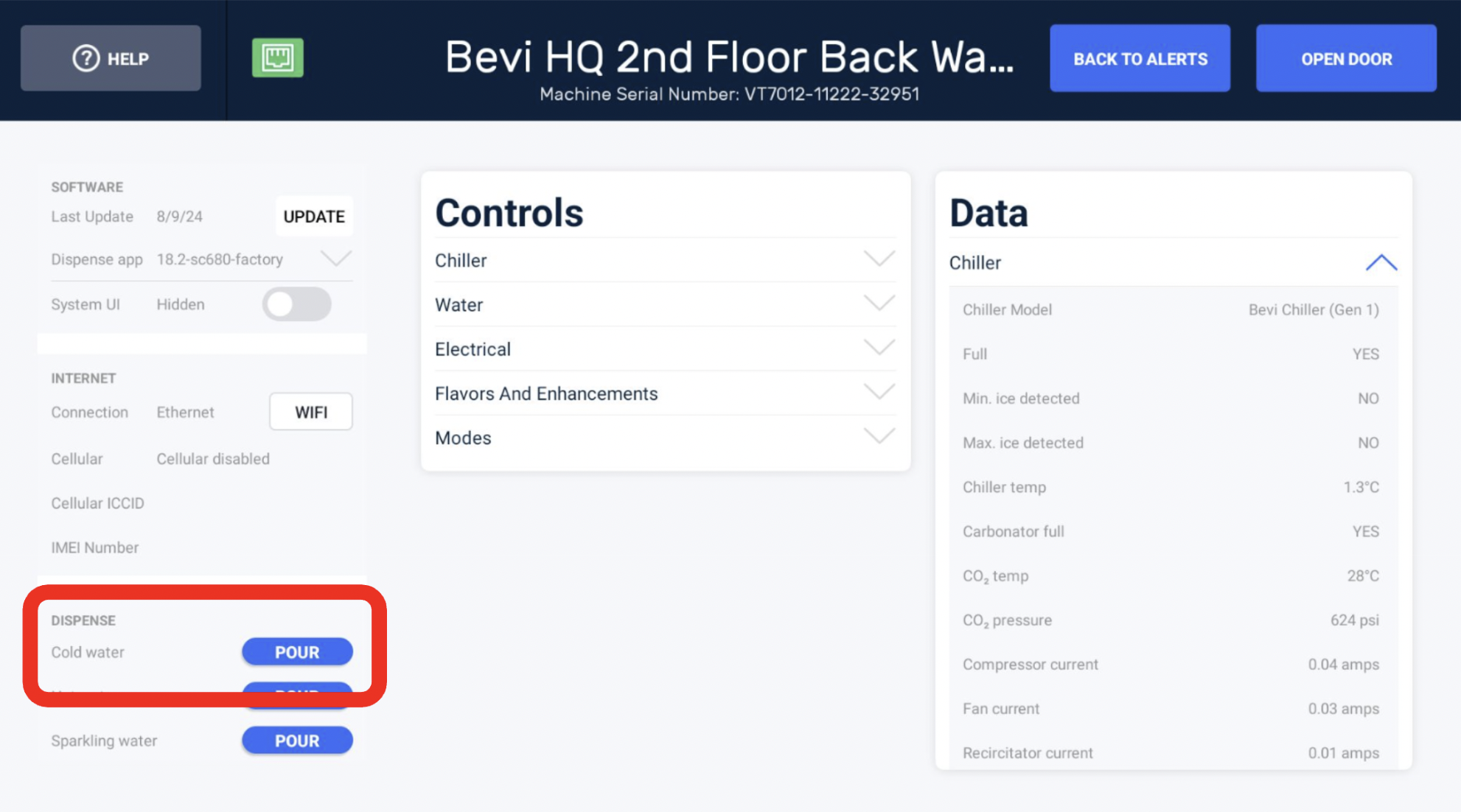

4. From Troubleshooting Tools, pour COLD water to depressurize the supply line.
   • Place a container under the nozzle.
   • Press and hold the POUR button for cold water for 5 seconds.

	WARNING
	HAZARDOUS VOLTAGE (120V) CONTACT MAY CAUSE ELECTRICAL SHOCK AND INJURY.  DISCONNECT POWER BEFORE SERVICING.

Task 4: Power off the Bevi and unplug the power cord.

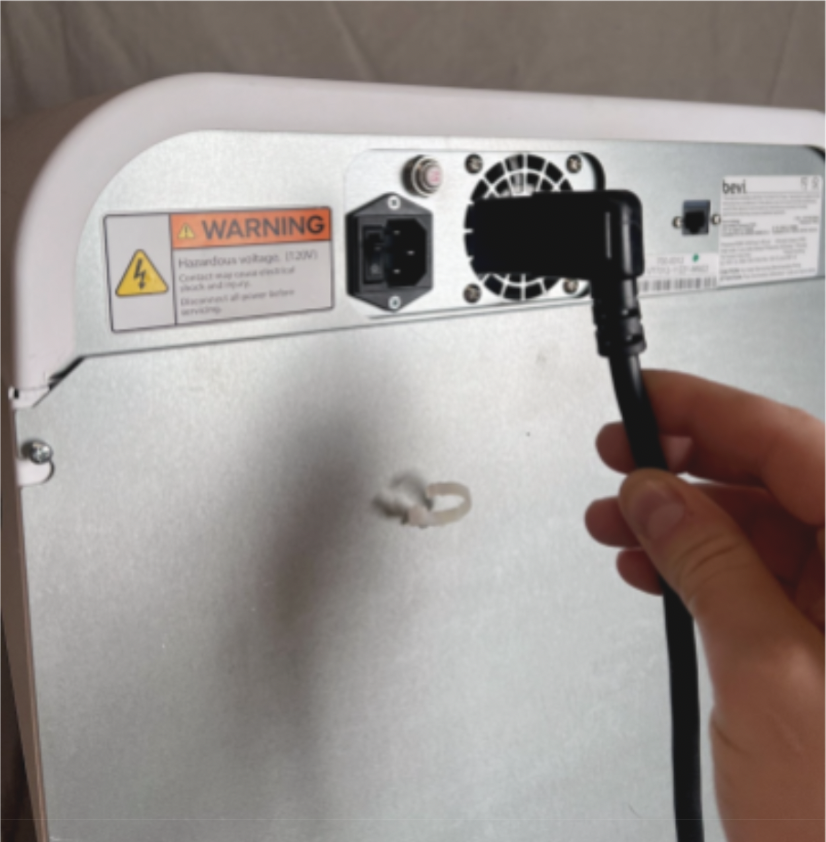

1. On the back of the Bevi at the top, turn off the power switch.
2. Disconnect the power cord from the back of the Bevi.

Task 5: Remove the center panel from the back of the Bevi.

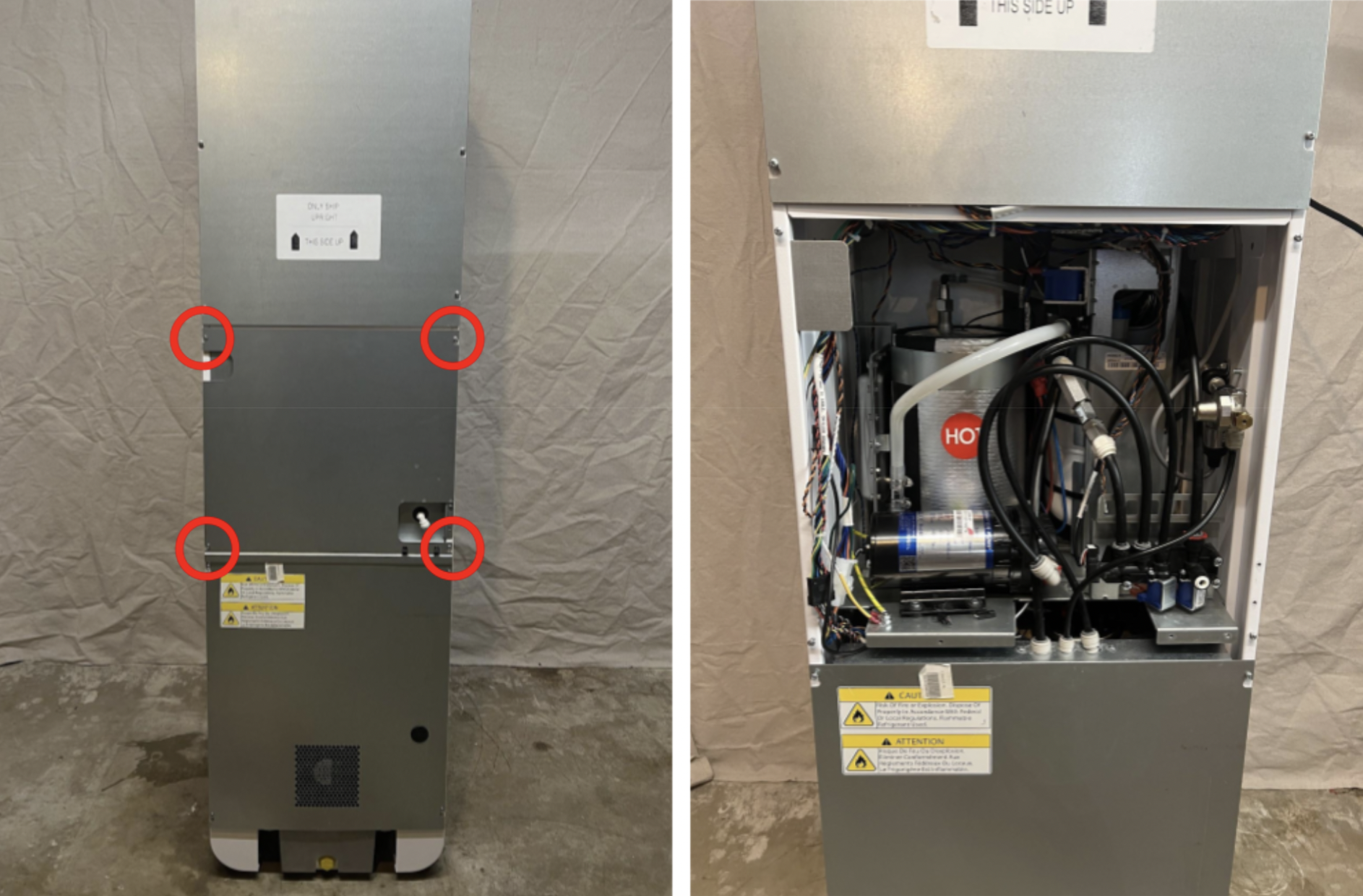

1. Loosen the 4 screws in the corners of the panel.
   • The screws do not need to be fully removed.
2. Lift the panel up to unhook from the screws, and remove.
3. Place the panel to the side.

Task 6: Remove Manifold 2 from Buffer Tank bracket

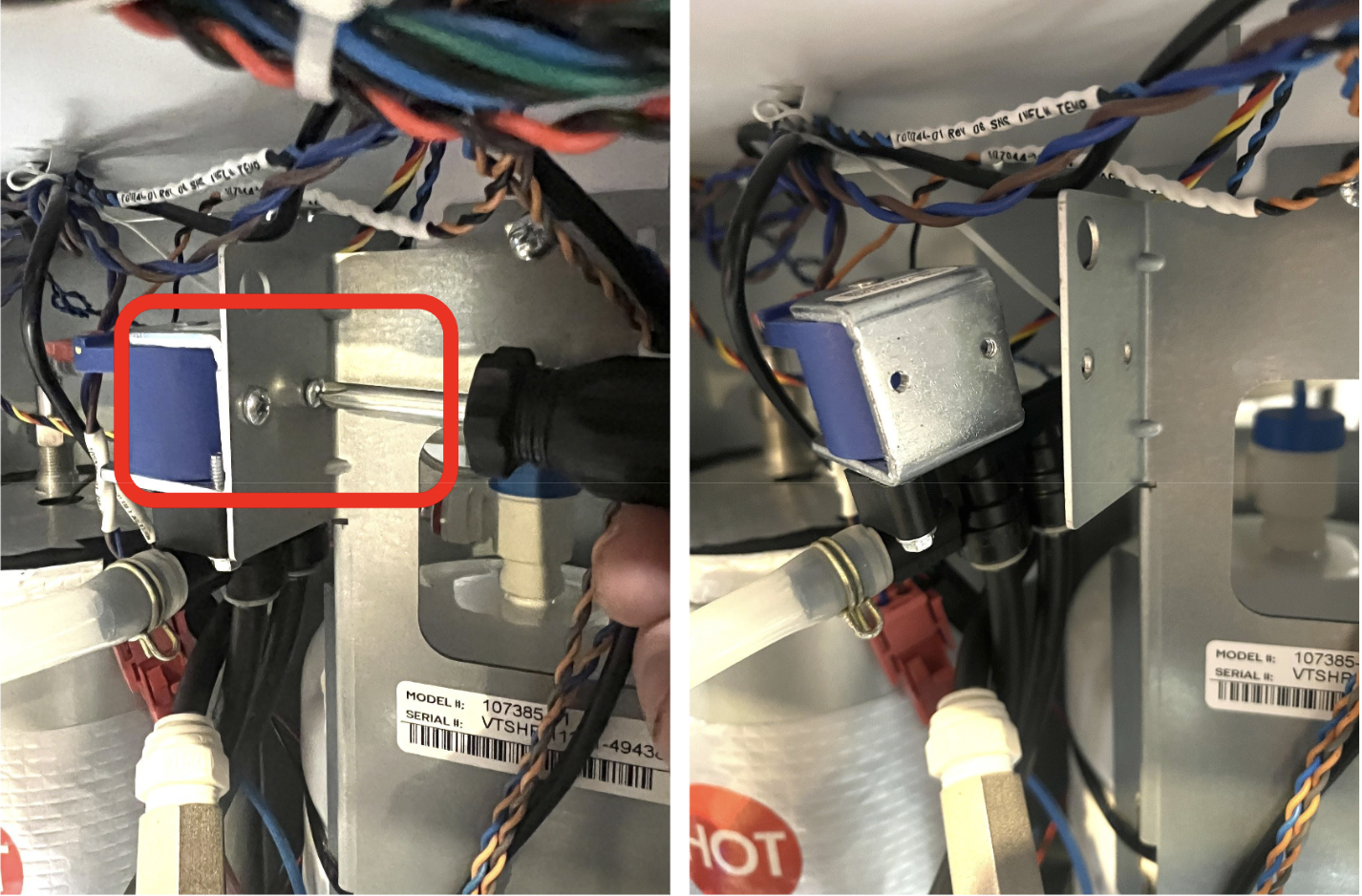

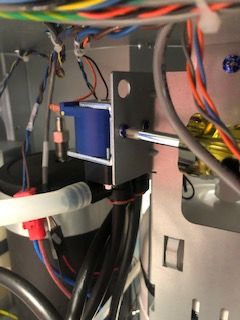

1. Using a #2 stubby phillips screwdriver, remove the two screws that hold Manifold 2 to the bracket.
   • You do not need to disconnect any tubing from Manifold 2.
   • Once removed from Buffer Tank bracket, leave to the side.

Task 7: Identify CO2 Regulator Version

1. Depending on the installed CO2 Regulator version, you may need to move the regulator to allow space for the Buffer Tank to be removed.

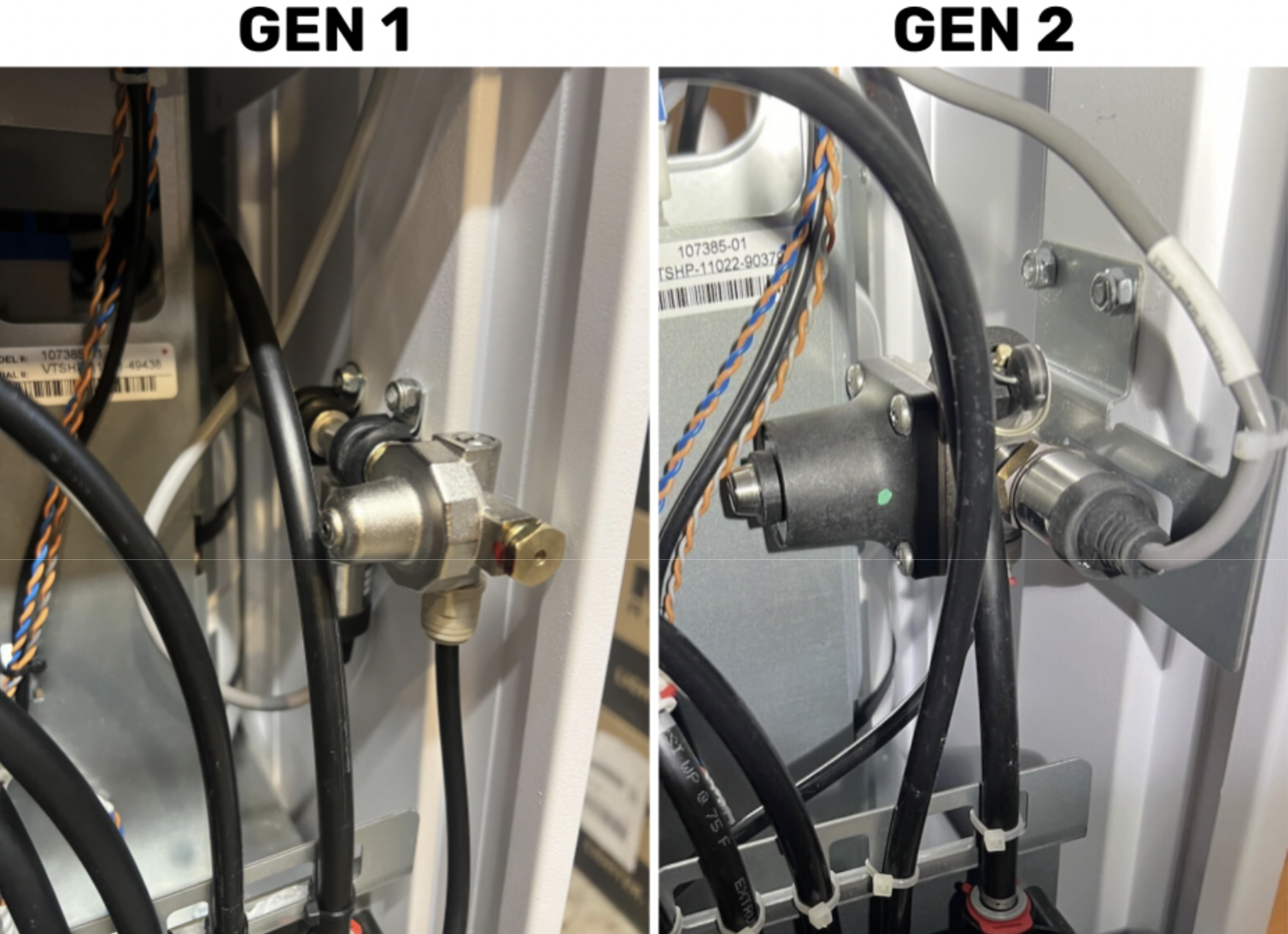

   1. If a Gen 1 Regulator is installed, it can remain in place and continue to Task 10 (click to jump).
   2. If a Gen 2 Regulator is installed, it will need to be moved in order to remove the Buffer Tank, continue to the next step.

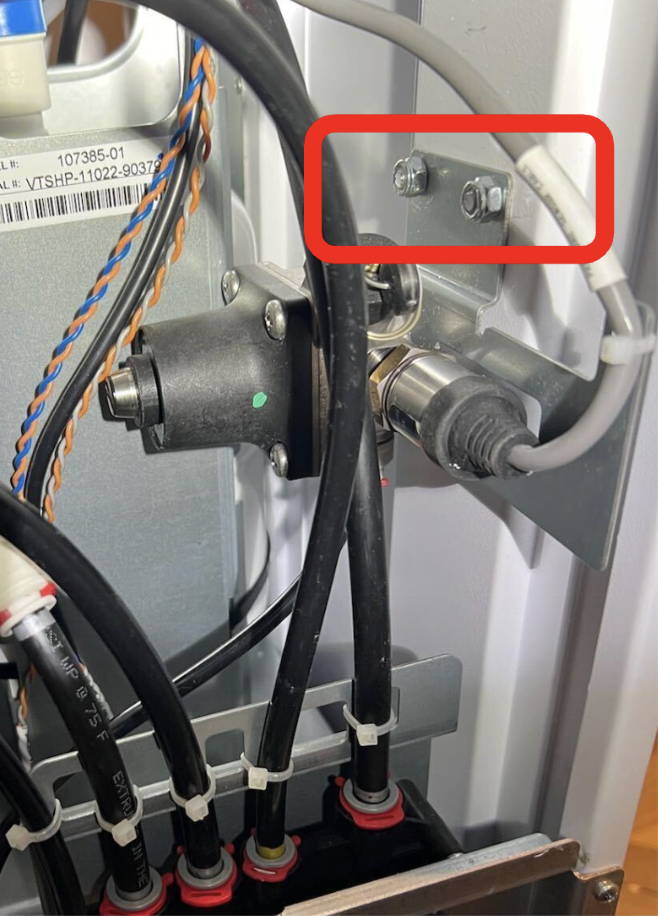

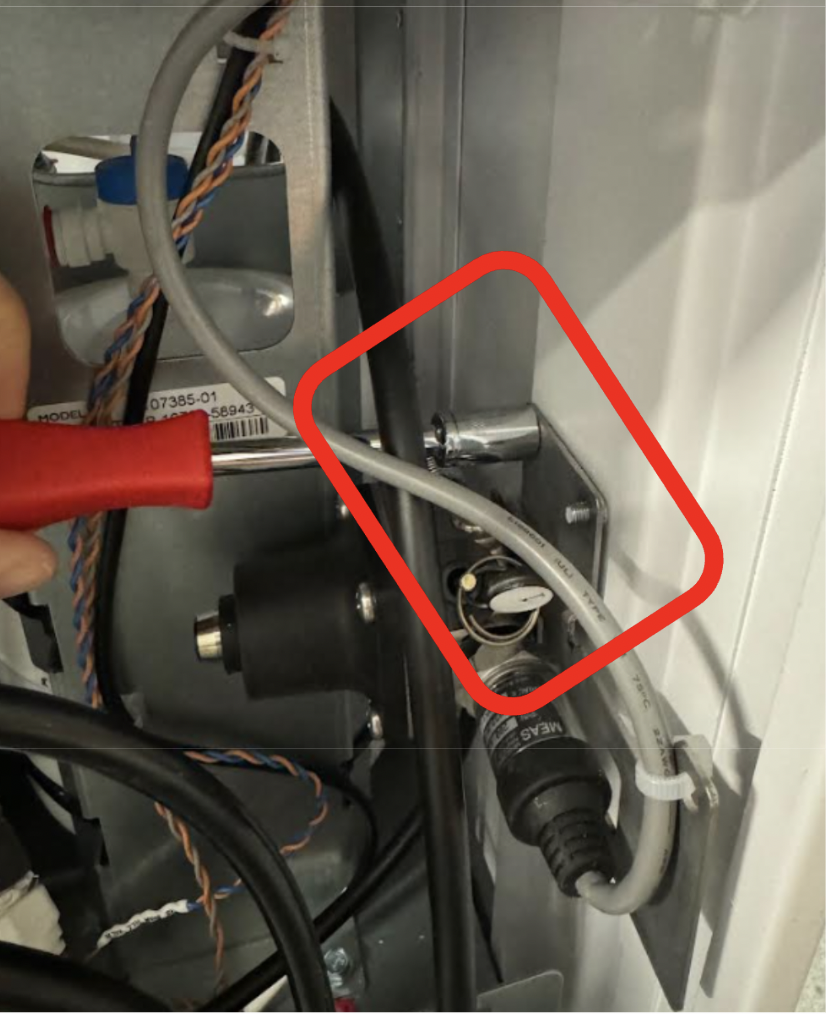

2. If a Gen 2 Regulator is installed, remove the two 3/8”  nylock nuts securing the regulator bracket to the machine chassis.
   • Remove the bracket from the two threaded mounting studs.
   • The regulator does not need to be fully removed from the Bevi.

Task 8: Unbolt Manifold 1

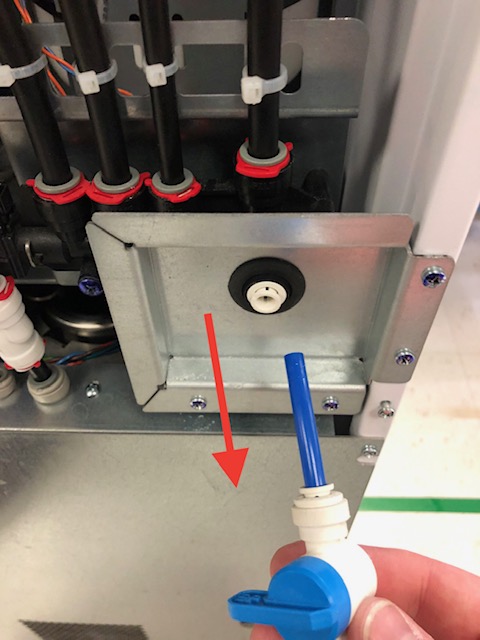

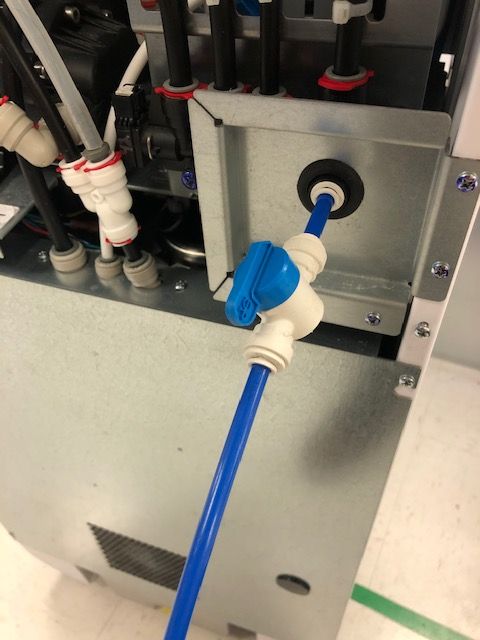

1. Disconnect water line from the back of the Bevi.

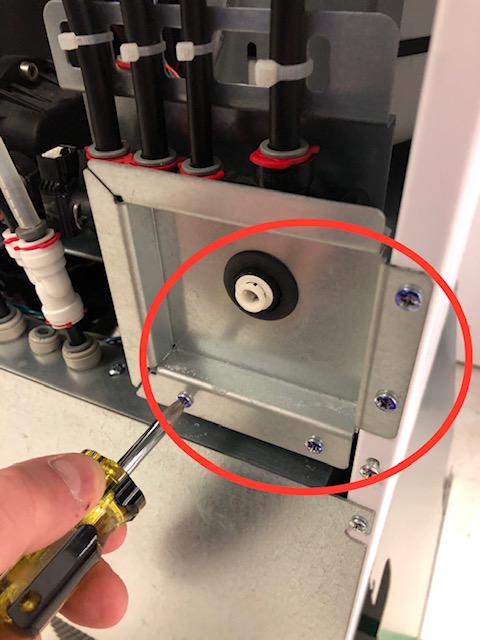

2. Remove the inlet bracket by unscrewing the 4 phillips screws holding it to the machine.

3. Remove the 2 mounting screws behind manifold 1 bracket.
   • May use either a #3 phillips screwdriver, or 3/8” socket with extension.

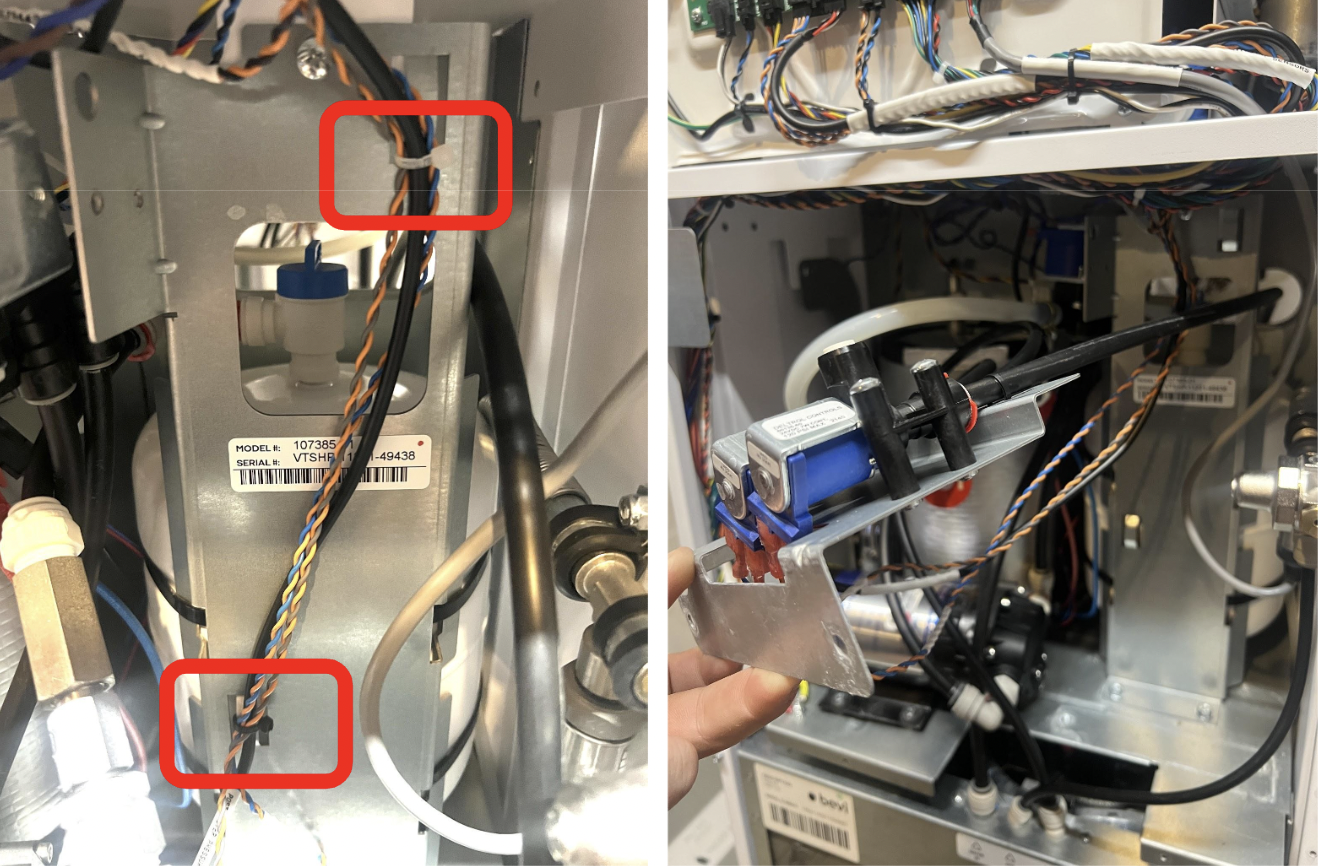

4. Carefully, cut the zip ties securing the wiring to the buffer tank bracket.

   WARNING: Be careful not to cut or damage any of the wires !
5. Once the bracket is separated from the chassis, the manifold can be moved out of the way to access to the buffer tank.

Tank 9: Removing the Buffer Tank and bracket

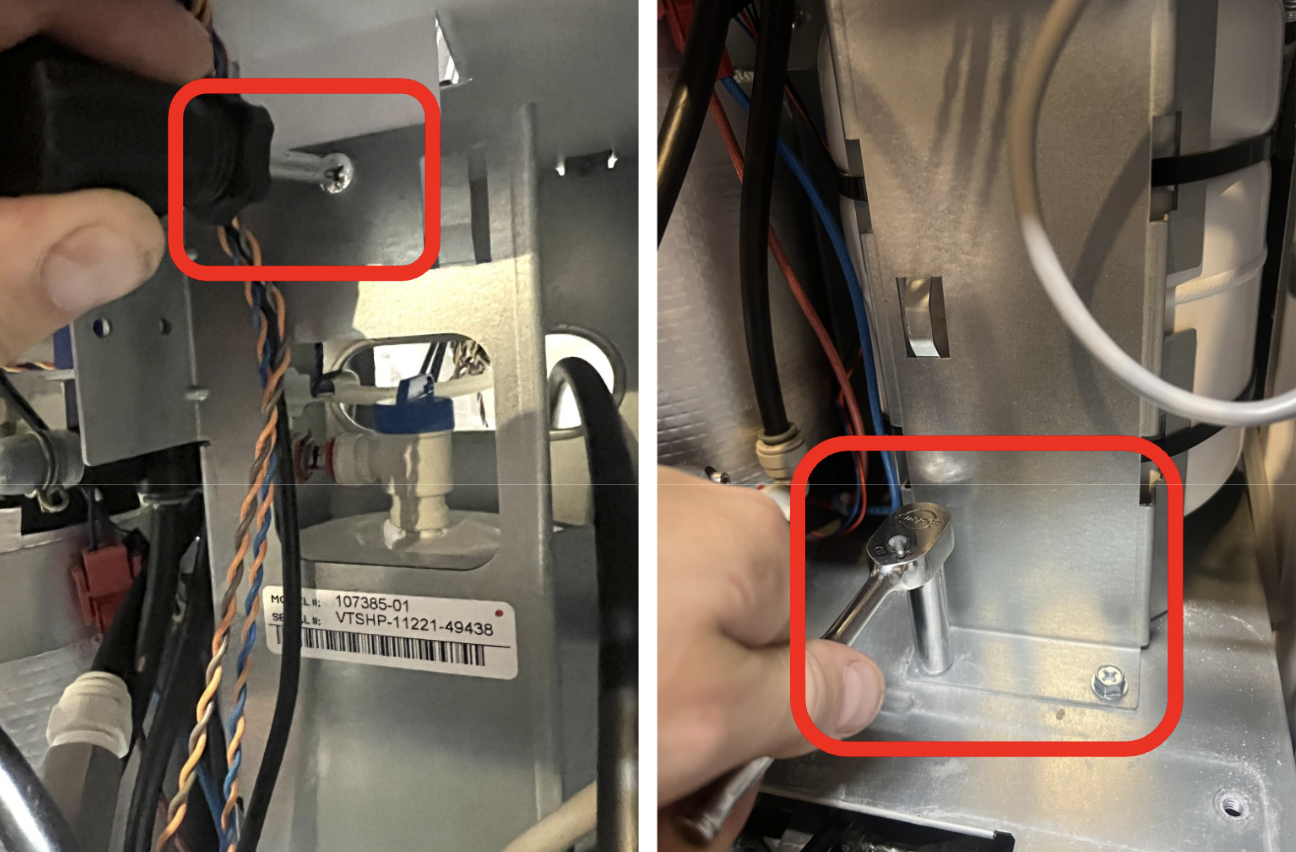

1. Remove the 3 screws that secure the bracket to the chassis.
   • One single phillips screw at the top.
   • Two screws at the base of bracket.
     • These can also be removed with either a #3 Phillips screwdriver, or a 3/8" wrench.

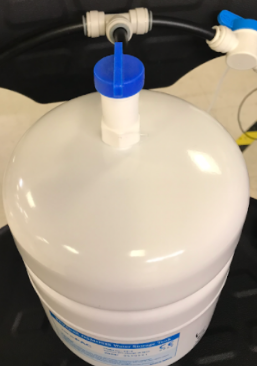

2. Disconnect the Buffer Tank valve.
   • Disconnect the 3/8" tubing from the Buffer Tank.
   • Do not disconnect the tubing from the T fitting.

3. Remove the Buffer Tank and bracket from the machine.
   • Tip the top of the tank backwards, and slide out.
   • If you identified a Gen 2 CO2 Regulator in Task 7, you will need to move the regulator down and out of the way to allow the Buffer Tank to slide out.
   • Be careful to not kink the 1/4” CO2 tubing.

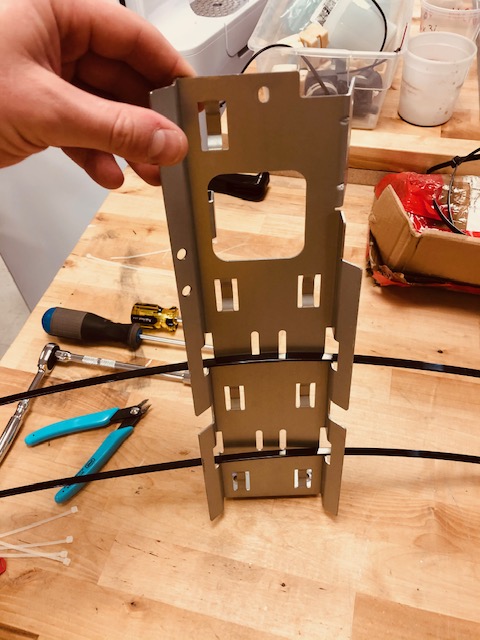

4. Cut the 2 zip ties securing the Buffer Tank to the bracket.
   • Take note of how these zip ties are routed, as you will need to reinstall new ones with the replacement tank in the next steps.

Installing the New Buffer Tank

Task 10: Replace Buffer Tank

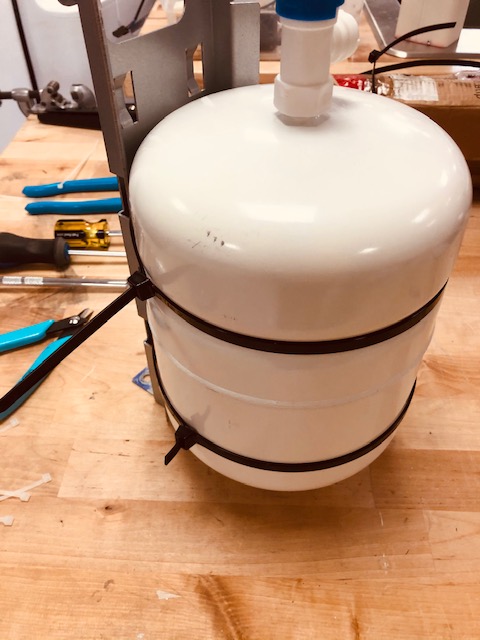

1. Using new Zip Ties, secure the Buffer Tank to the Bracket.
   • Replacement zip ties are supplied with the new Buffer Tank.

2. Position the new Buffer Tank and bracket into the plumbing shelf.
   • Lay the tank flat and slide into place bottom first.
   • Stand tank and bracket upright once in position.

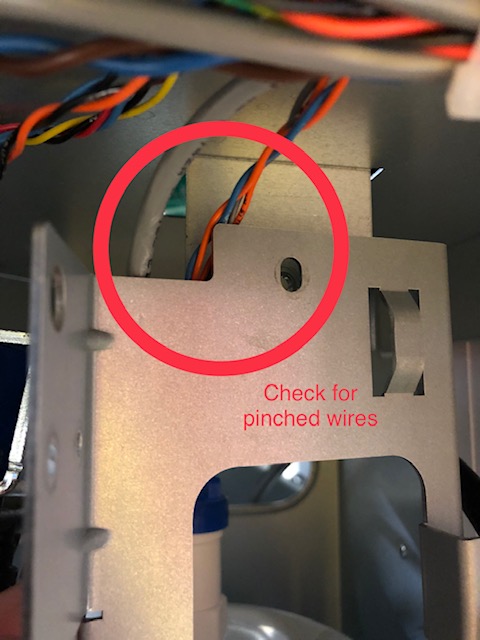

   💡 Check now to make sure no tubing or wiring has been pinched.

3. Reconnect the water tubing to the Buffer Tank.
4. Reinstall the 3 mounting screws for the Buffer Tank Bracket.
   • It is helpful to loosely install the top screw first, followed by the bottom two.
5. Open the buffer tank valve.

Task 11: Reinstall Manifolds and CO2 Regulator

1. Reinstall Manifold 2.
   • Reinstall 2 phillips screws holding the manifold to the buffer tank bracket.
   • It is helpful to first start the rear screw, and leave loose.
   • Once both screws are installed, tighten down fully.

2. Reinstall Manifold 1:

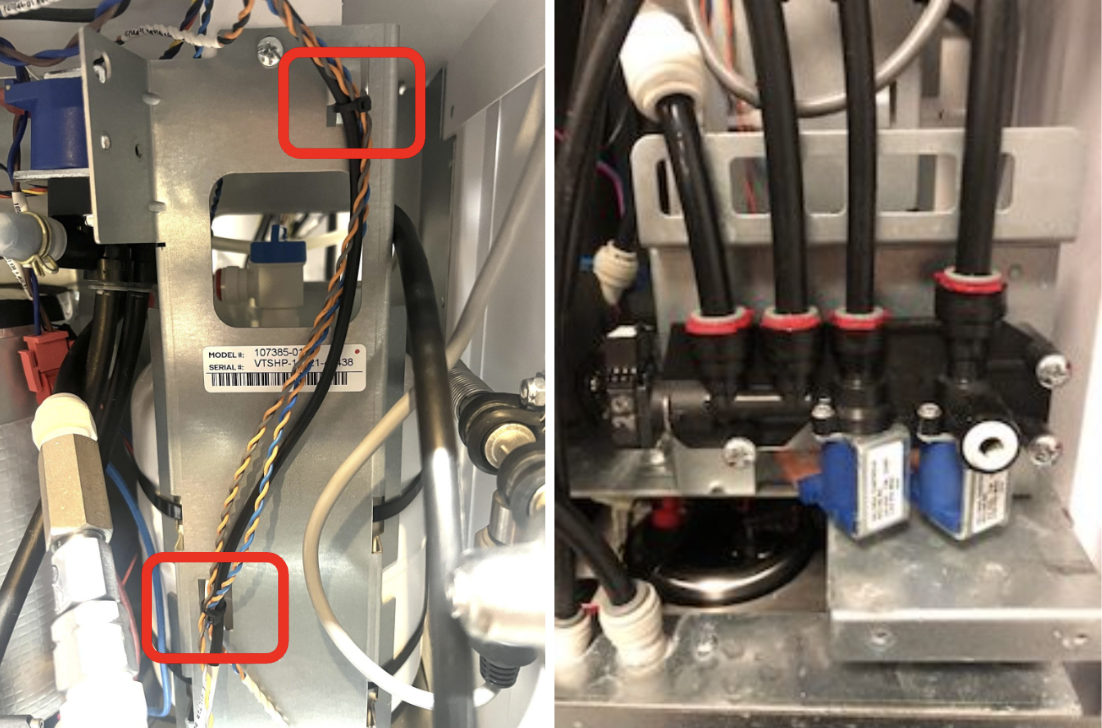

   • Secure Manifold 1 wiring back in its original position on the buffer tank bracket with new zip ties.
   • Reinstall the two #3 phillips screws to mount Manifold 1 to the chassis.

3. For Gen 2 CO2 Regulators, reinstall the mounting bracket onto the threaded studs, and secure with the two 3/8” nylock nuts.

Task 12: Reinstall inlet bracket and connect water line

1. Reinstall inlet bracket with 4 phillips screws.
2. Reconnect 1/4” water source to the inlet.
   • Be sure tubing is fully seated in push to connect fitting.
3. Turn on the water source (shutoff valve handle inline with water flow).

Testing Function & Completing Service

Task 13: Functionality Test

1. Plug in the power cord and power on the Bevi.
2. Ensure you have turned on the water supply and opened the buffer tank valve.
3. From the Service Panel, access “Troubleshooting Tools”. (See steps from Task 1)

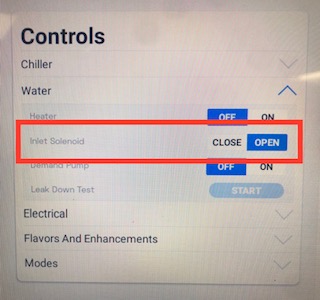

4. Under the Controls menu, open the inlet solenoid.
   • This will allow water flow into the machine to fill the buffer tank.

5. Observe the plumbing shelf for leaks.
   • If any leaks are present, recheck that all tubing connections are fully seated in fittings.
6. Dispense 2-4 liters of still water to ensure there is a steady flow of water through the system.
7. Dispense 1-2 liters of sparkling water to refill the carbonator.
   • Test sparkling water to verify proper carbonation.

Task 14: Reinstall back panel

1. Reinstall the back panel.
   • Ensure no cabling is pinched between the panel and the machine.
   • Use caution while reinstalling panels, and do not make contact with the interior of machine when power is connected.
