Note: These schematics are intended for overview and training
purposes only,
and should be used in conjunction with our overall troubleshooting guides
available
on our Help Center.
Each system (Flavor, Electrical, Water, and Chiller) interacts with the others and with software to ensure a fully functional machine experience. It is important to consider this as you refer to each of these maps.
Each system (Flavor, Electrical, Water, and Chiller) interacts with the others and with software to ensure a fully functional machine experience. It is important to consider this as you refer to each of these maps.
Select a Bevi machine model below to expand & view its water path system map.

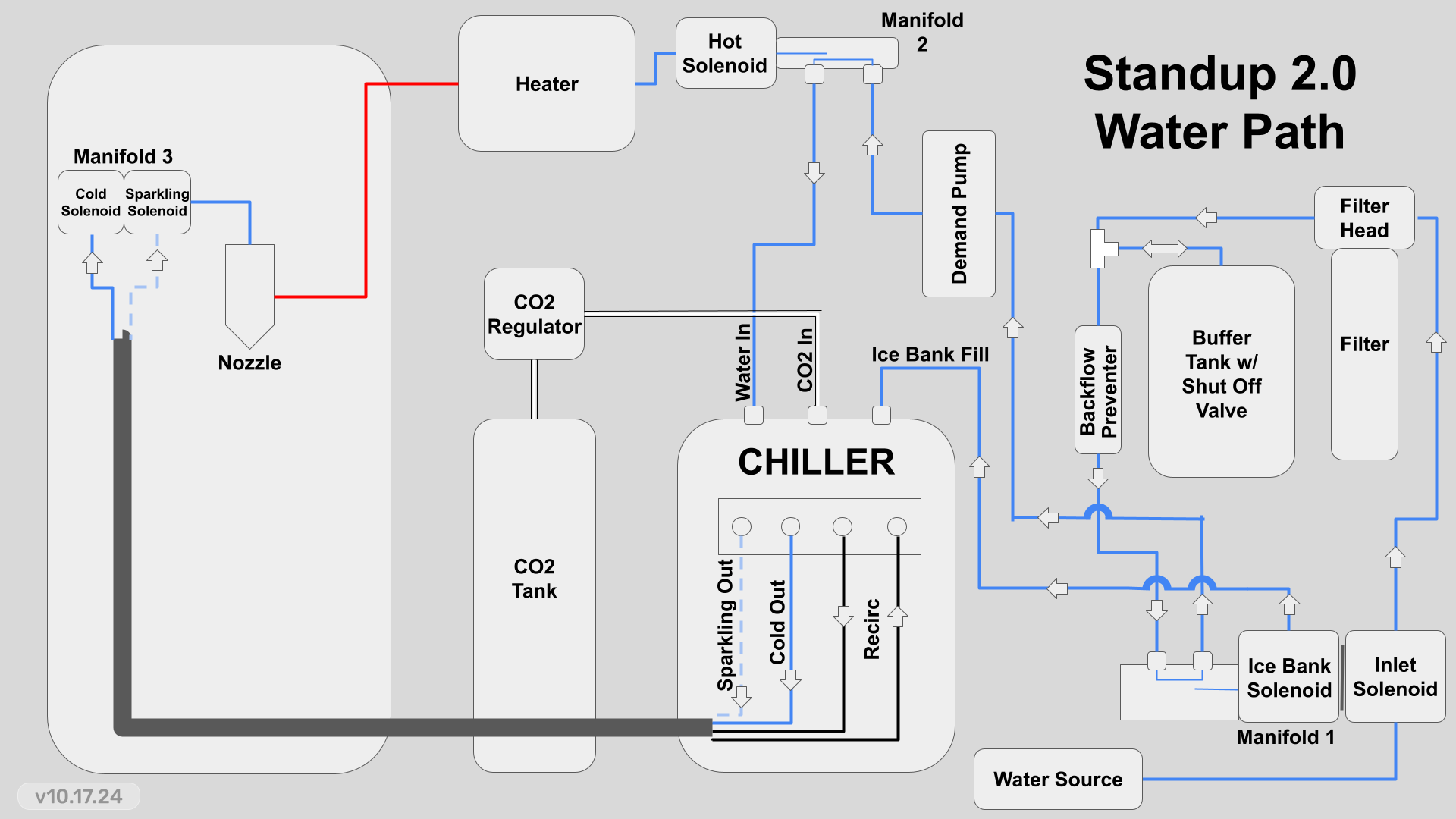

Standup 2.0
Countertop (v0, v1)

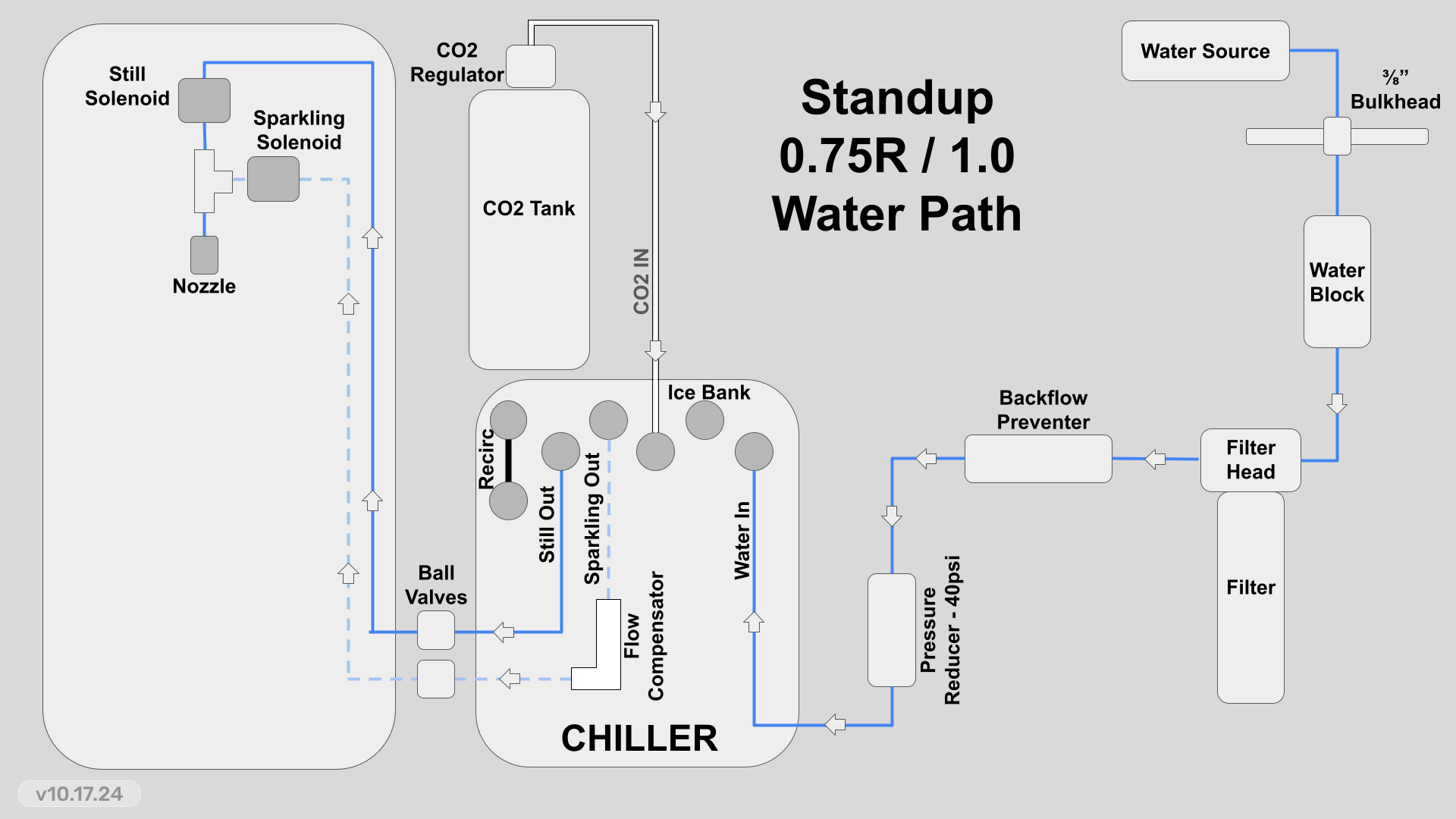

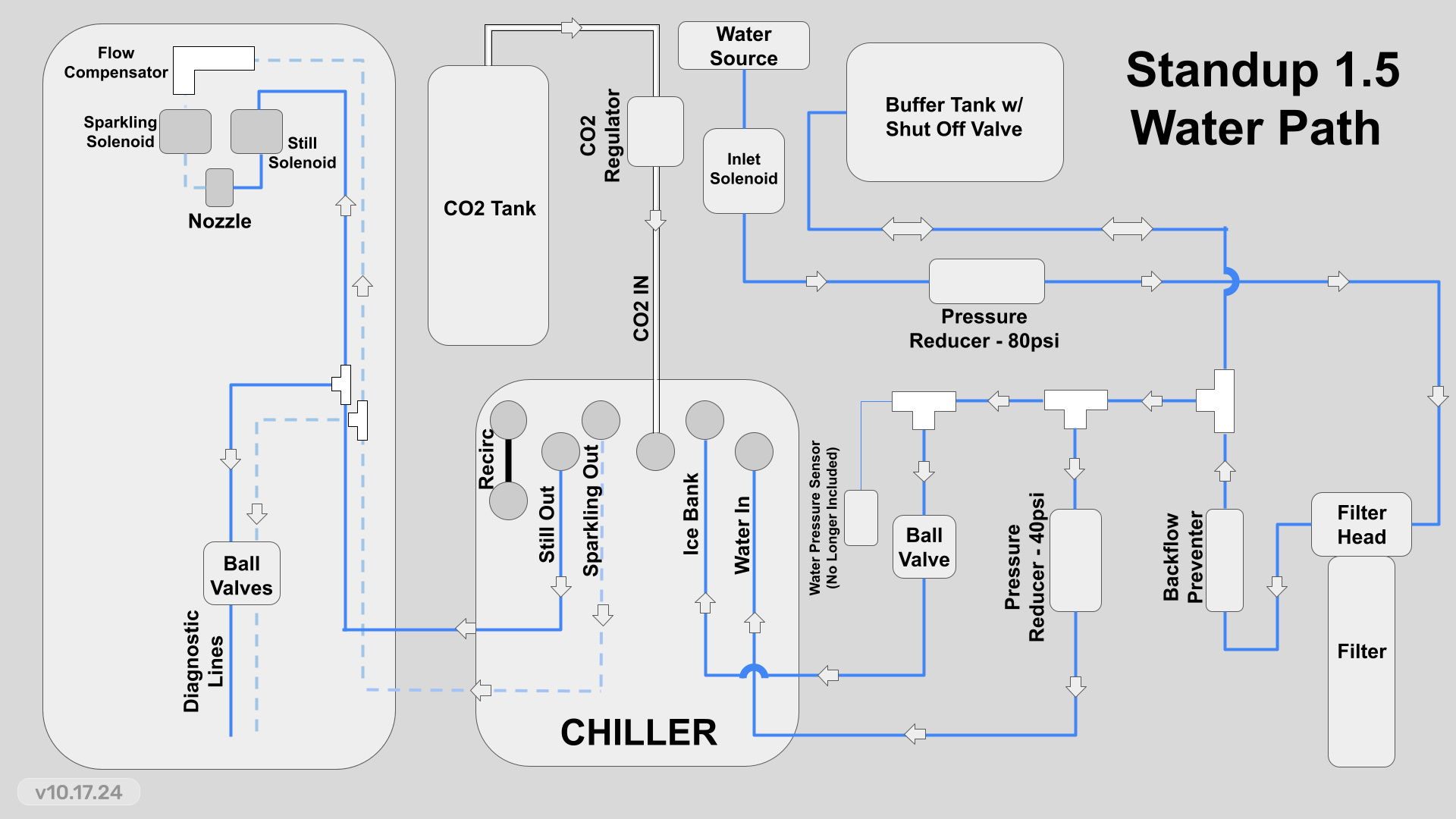

Standup 1.5 and 1.0 / 0.75R
