Overview

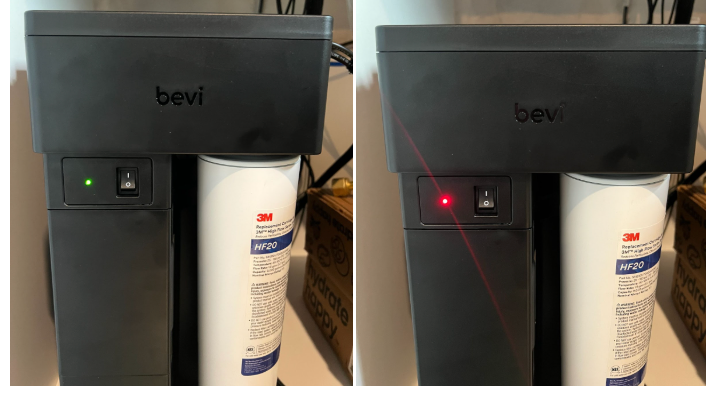

This guide briefly describes what the different colors of the LED Indicator on the front of the compact chiller mean. The LED Indicator is located directly on the front of the chiller, next to the power switch, and can present as red, green, or yellow depending on the state of the chiller.
LED Status Key
| LED Color | Status Description | Next Steps |
|---|---|---|
| 🟢 Green | Chiller is powered on and successfully communicating with head unit. | - - |
| 🔴 Red | Chiller is not communicating with head unit. | Inspect the USB connection between the chiller and head unit. Note: The red LED will always appear upon initial power-on and stay red until the head unit is powered on and the Bevi Dispense App is fully loaded. |
| 🟡 Yellow | Chiller BUC Board may have an issue, or it is in bootloader mode and uploading new firmware. | Check blinking pattern: - Slow blink: The board isn't connected. - Regular blink: The board is connected but not doing anything. - Fast blink: The board is actively downloading new firmware. |
