SU 1.5 Chiller Pump Head Assembly Remove and Replace Guide

Overview

This guide walks technicians through the step by step process to remove and replace the Chiller (carbonator) Pump Head Assembly in the Standup 1.5.

Required Tools and Materials

• 720-0153 - Carbonator Pump Head Assembly
• #2 Phillips screwdriver
• #3 Phillips screwdriver
• Small bucket

Removal Procedure

Task 1: Depressurize the water system.

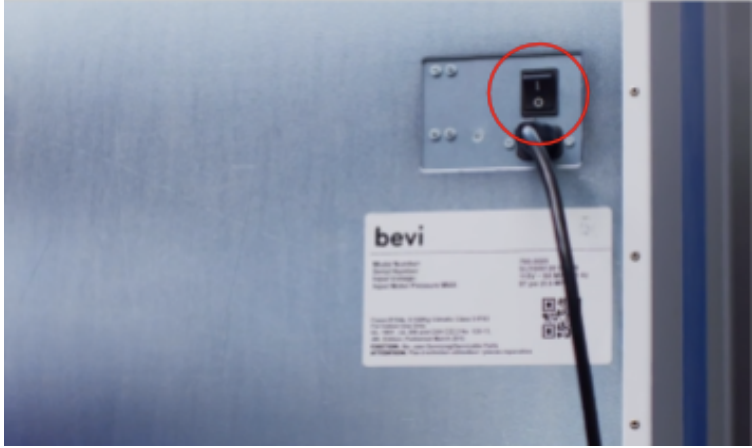

1. Power off the Bevi.
   • Turn off power to the unit by flipping the switch on the back near where the power cord connects.

2. Open the door.

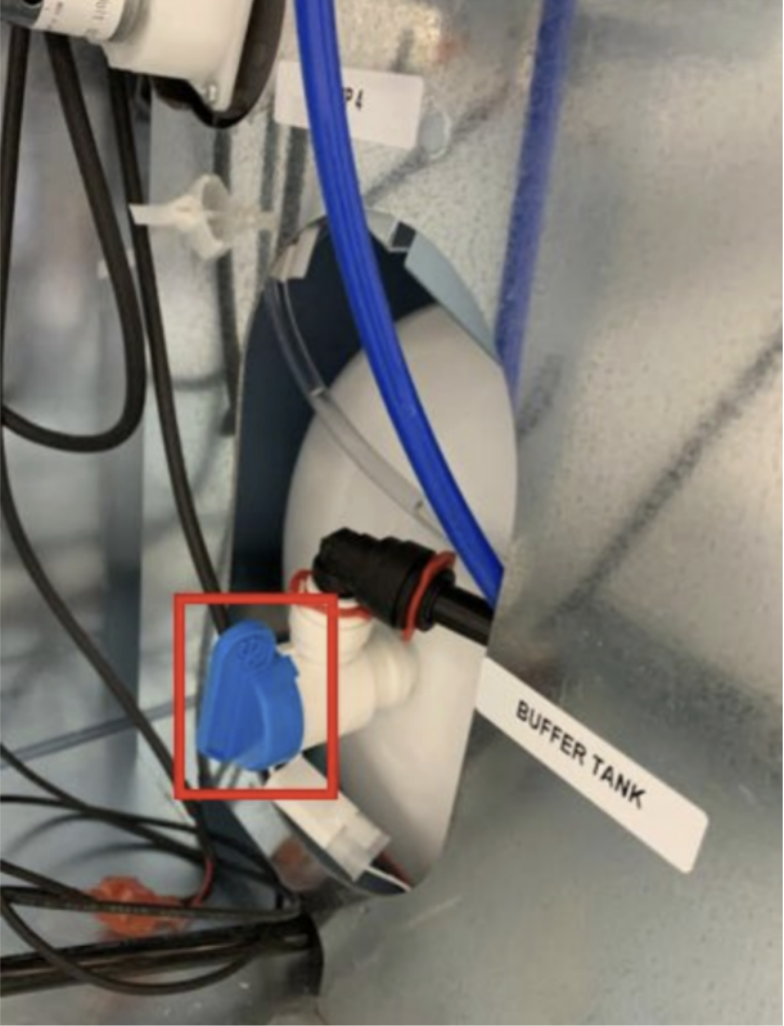

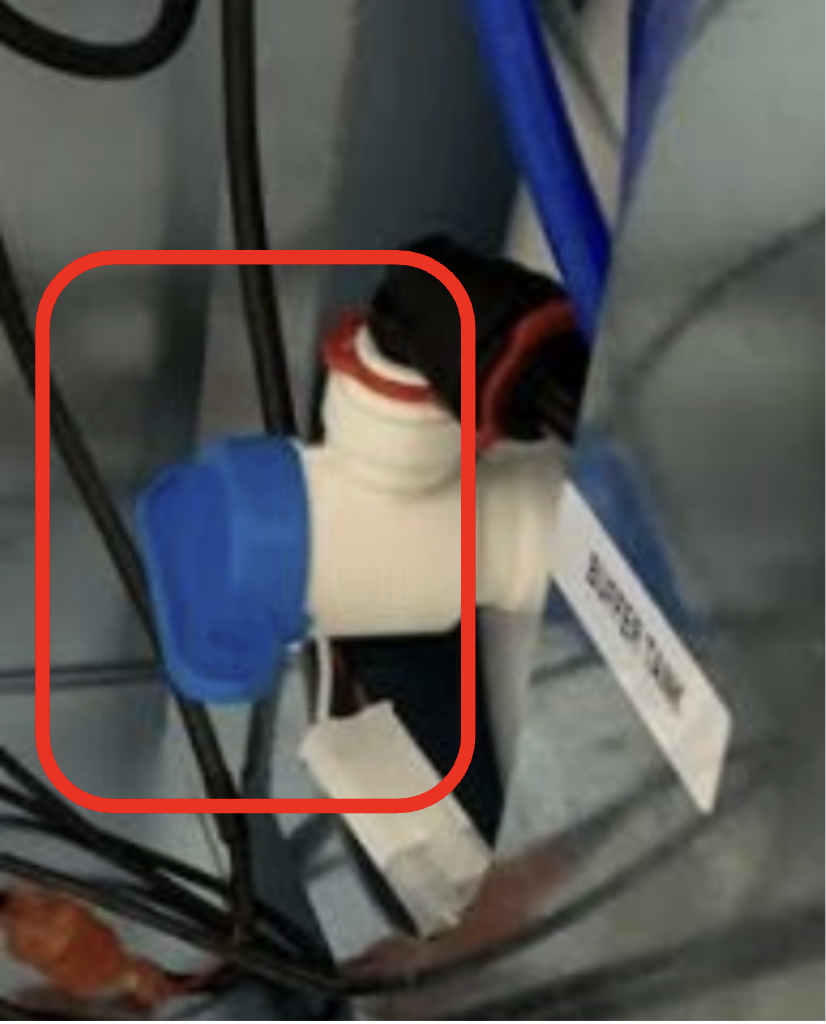

3. Close the buffer tank.
   • The buffer tank valve is located behind the CO2 tank.
     Turn the valve 1/4-turn clockwise to close (pointed forwards/perpendicular to the flow of water).

4. Power off Chiller.

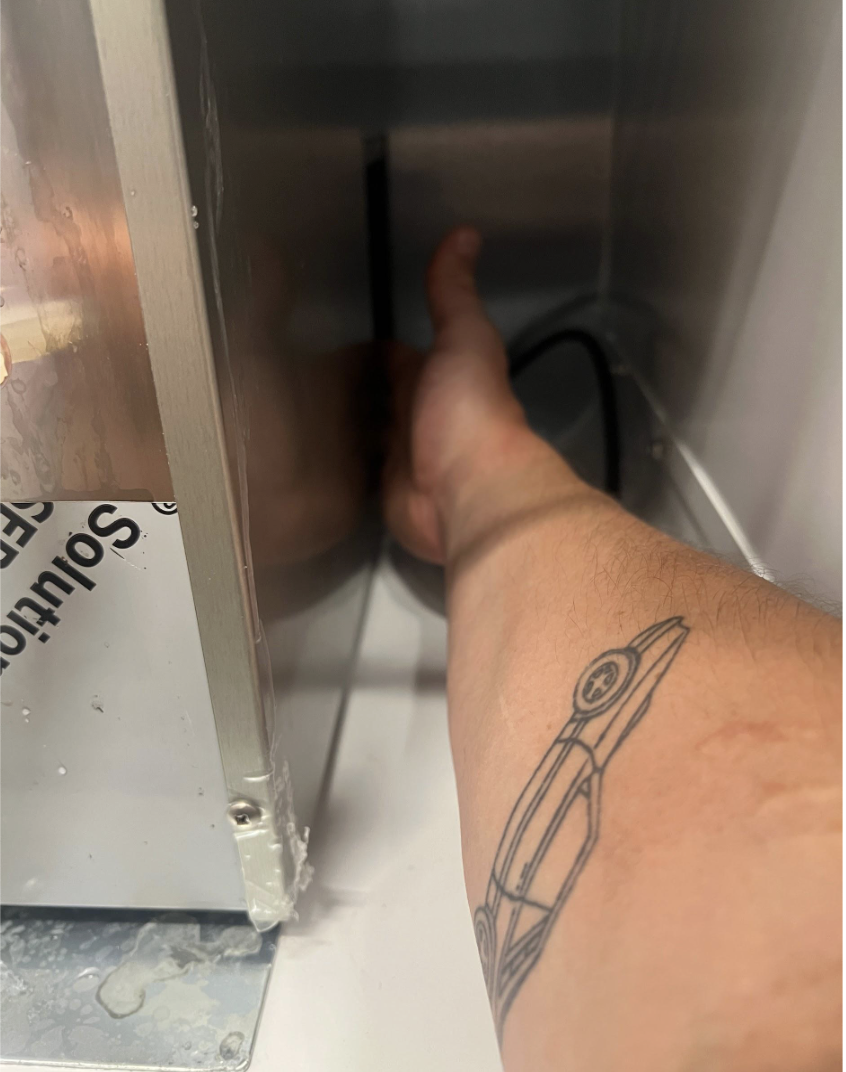

   • The power switch is located on the right side, towards the rear of the chiller.

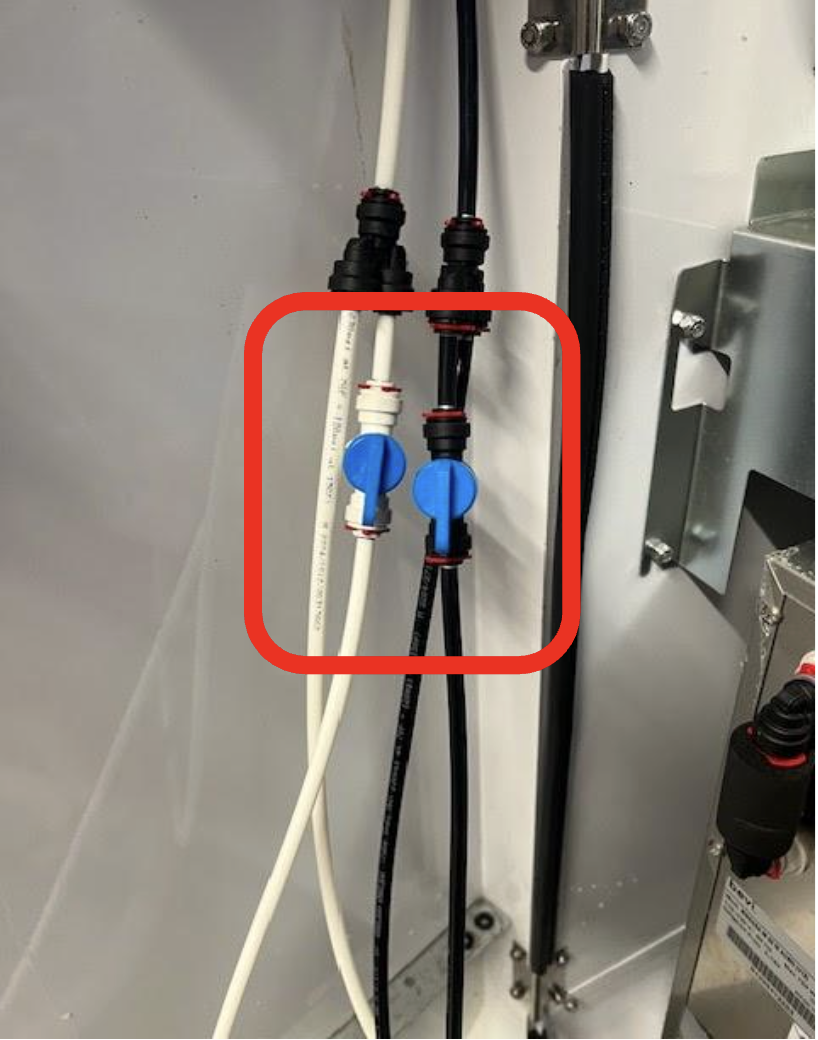

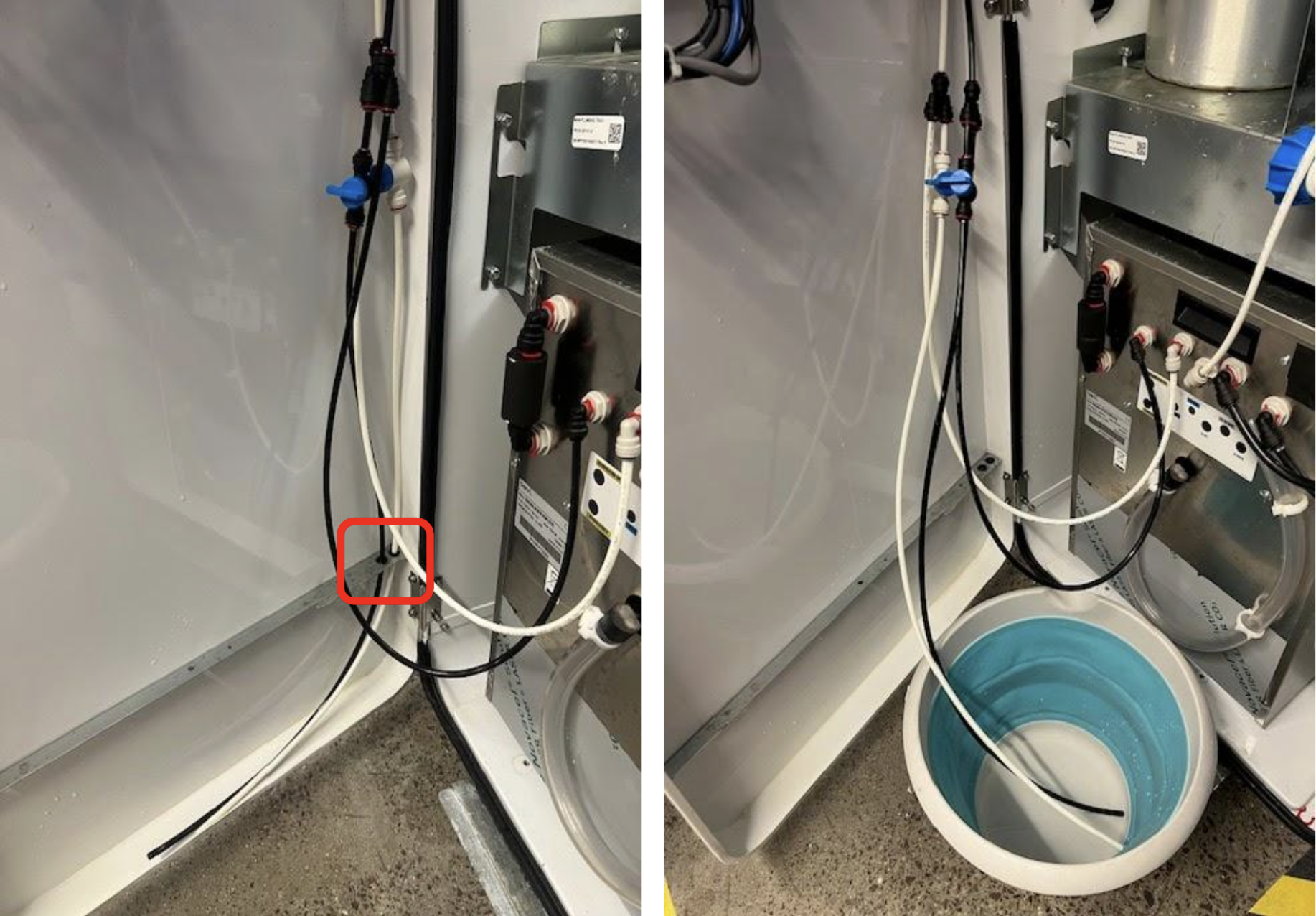

5. Using Diagnostic Lines, depressurize the Still and Sparkling outputs.
   • Remove the Still (black) and Sparkling (white) diagnostic line tubing from the grommets at the base of the door.
   • Place the ends of both lines into a bucket.

6. Open the Still diagnostic valve until completely depressurized, then close the valve.
7. Open the Sparkling diagnostic valve until only CO2 is coming from the line, then close valve.

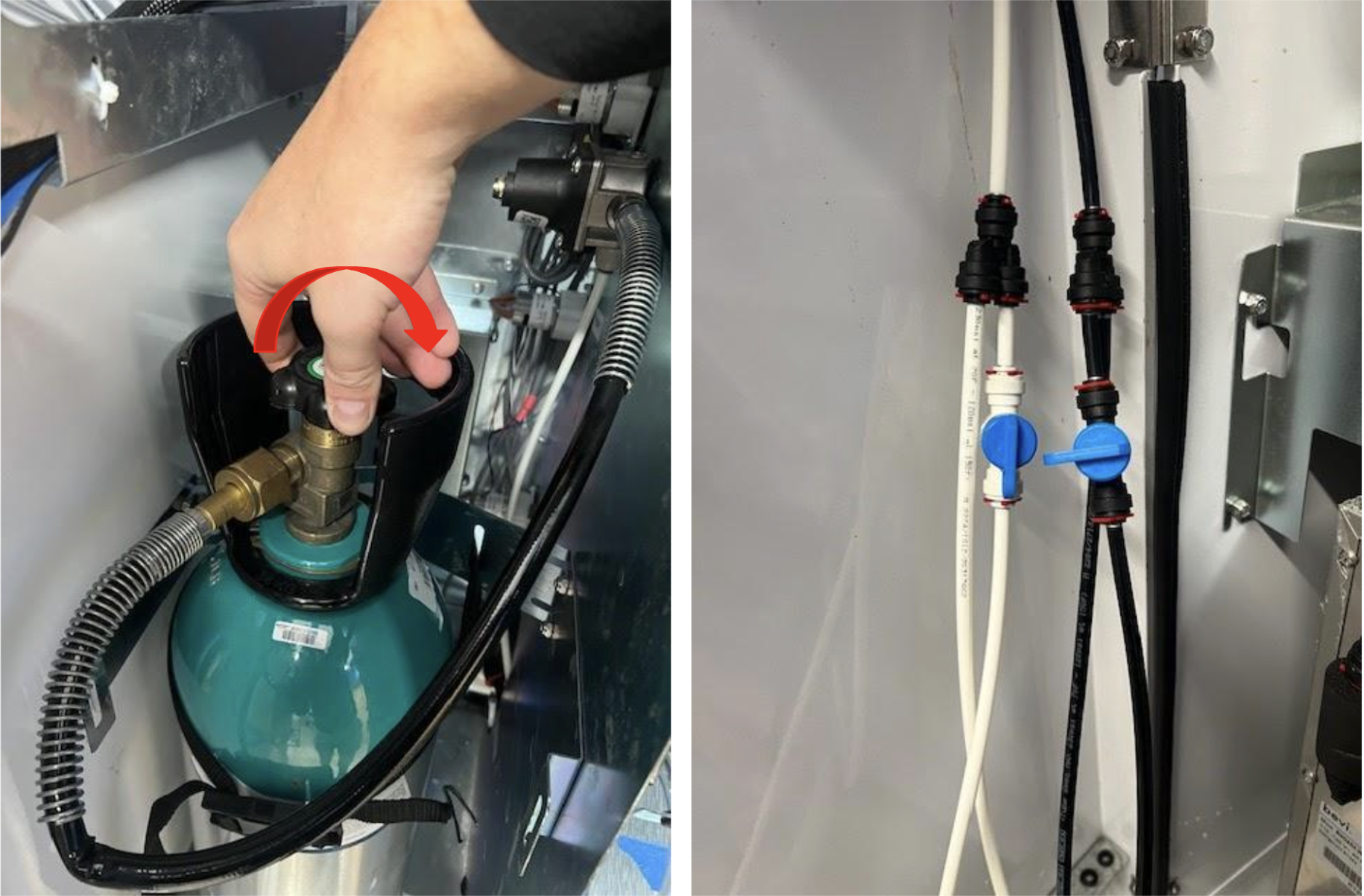

8. Turn off the CO2 tank.
9. Reopen the Sparkling diagnostic valve again until all CO2 pressure is released.
10. Once all CO2 pressure is released, close the valve.

Task 2: Remove the chiller.

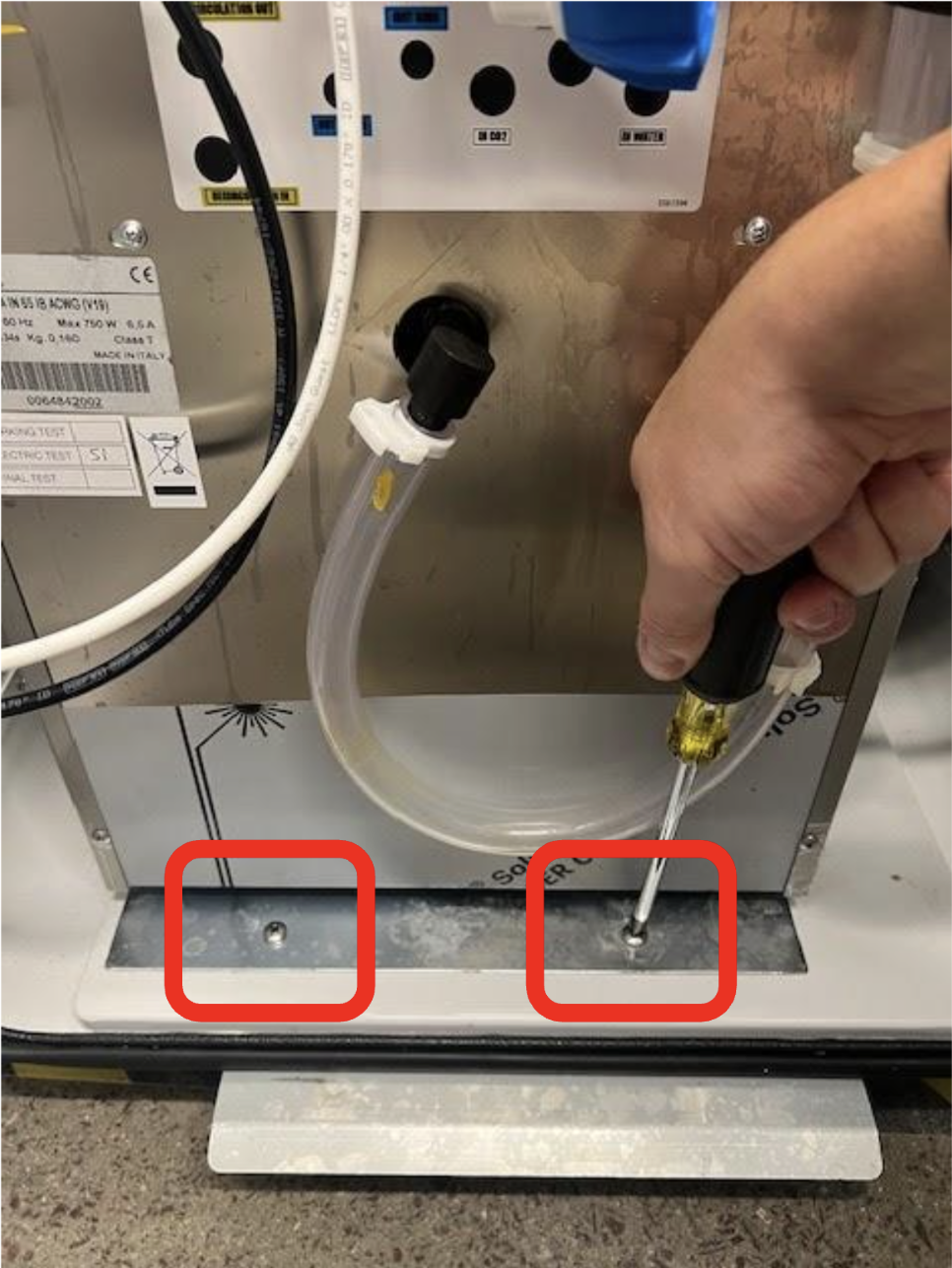

1. Remove the bracket at the base of the chiller
   • Using a #3 Phillips screwdriver, remove the two screws securing the bracket.
   • Note: If the screws are corroded and you are unable to remove, contact Bevi Support at 866-704-BEVI before proceeding to next steps.

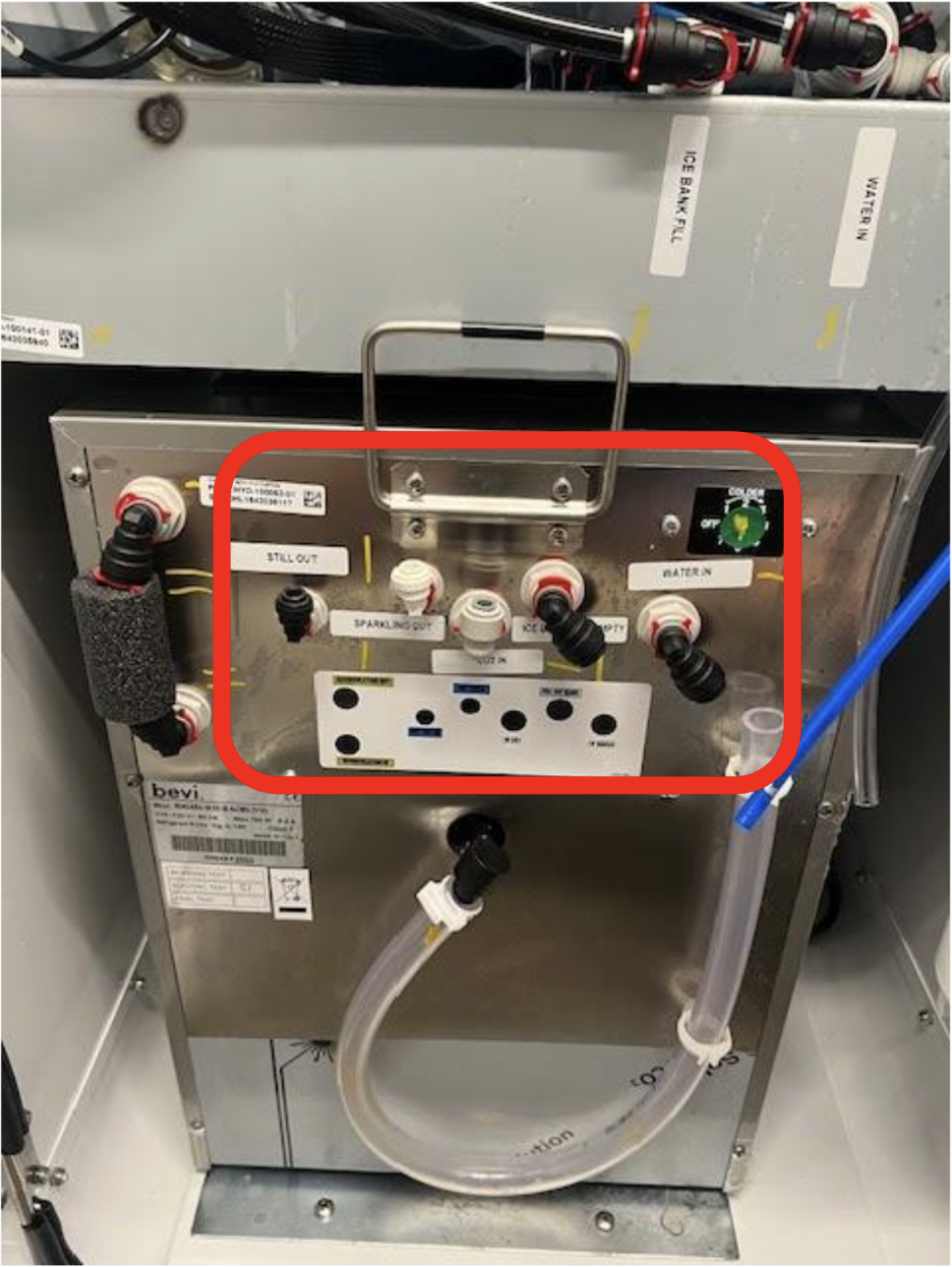

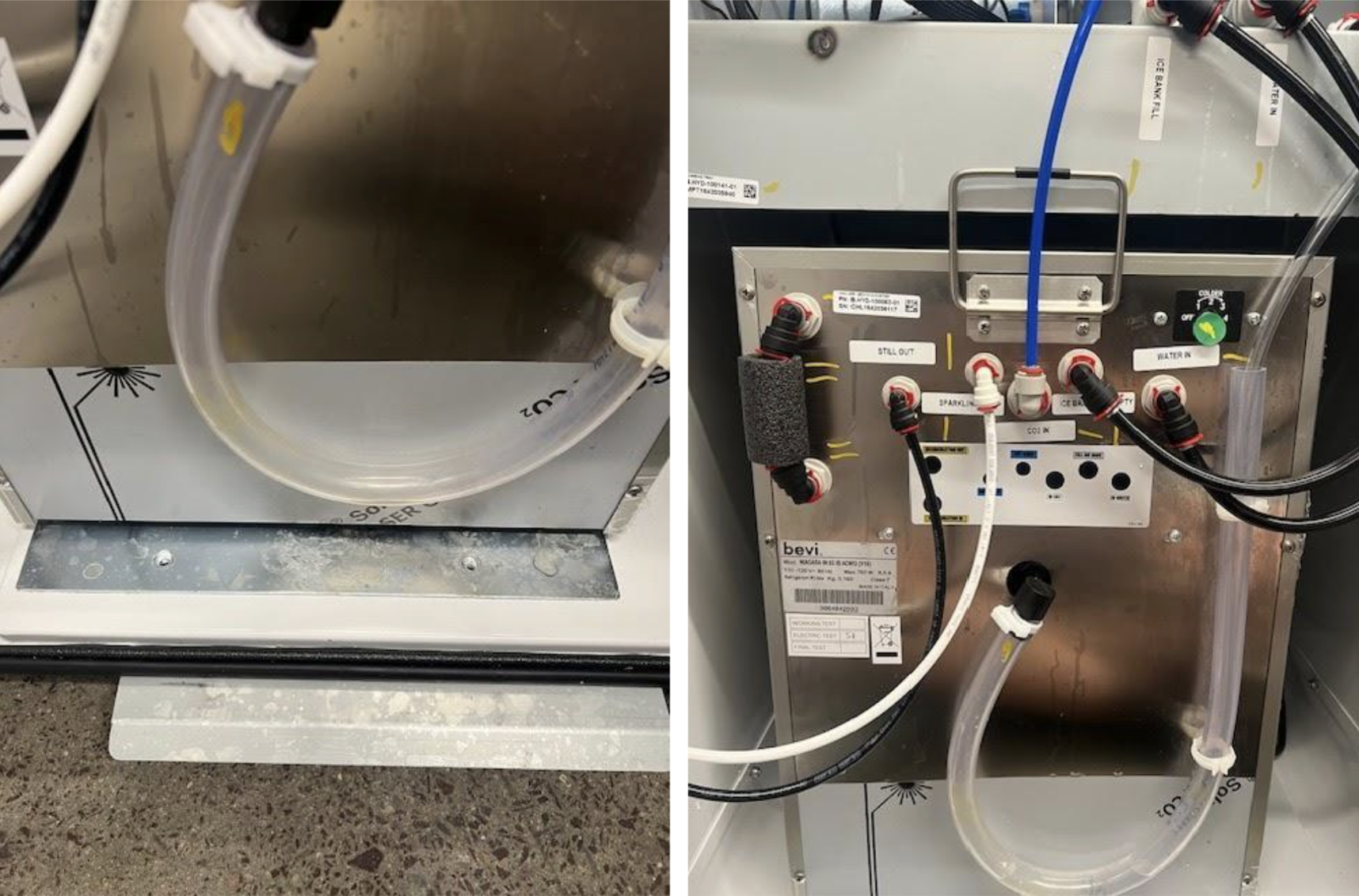

2. Disconnect all inputs and output tubes from the chiller.
   • Remove red locking clips from each fitting.
   • Disconnect Water In, Ice Bank Fill, CO2 In, Sparkling Out, and Still Out tubes from the front of the Chiller.
     • It is much easier to disconnect the tubing from the 90° elbow push-to-connect fittings. Leave the elbow fittings connected to the chiller.

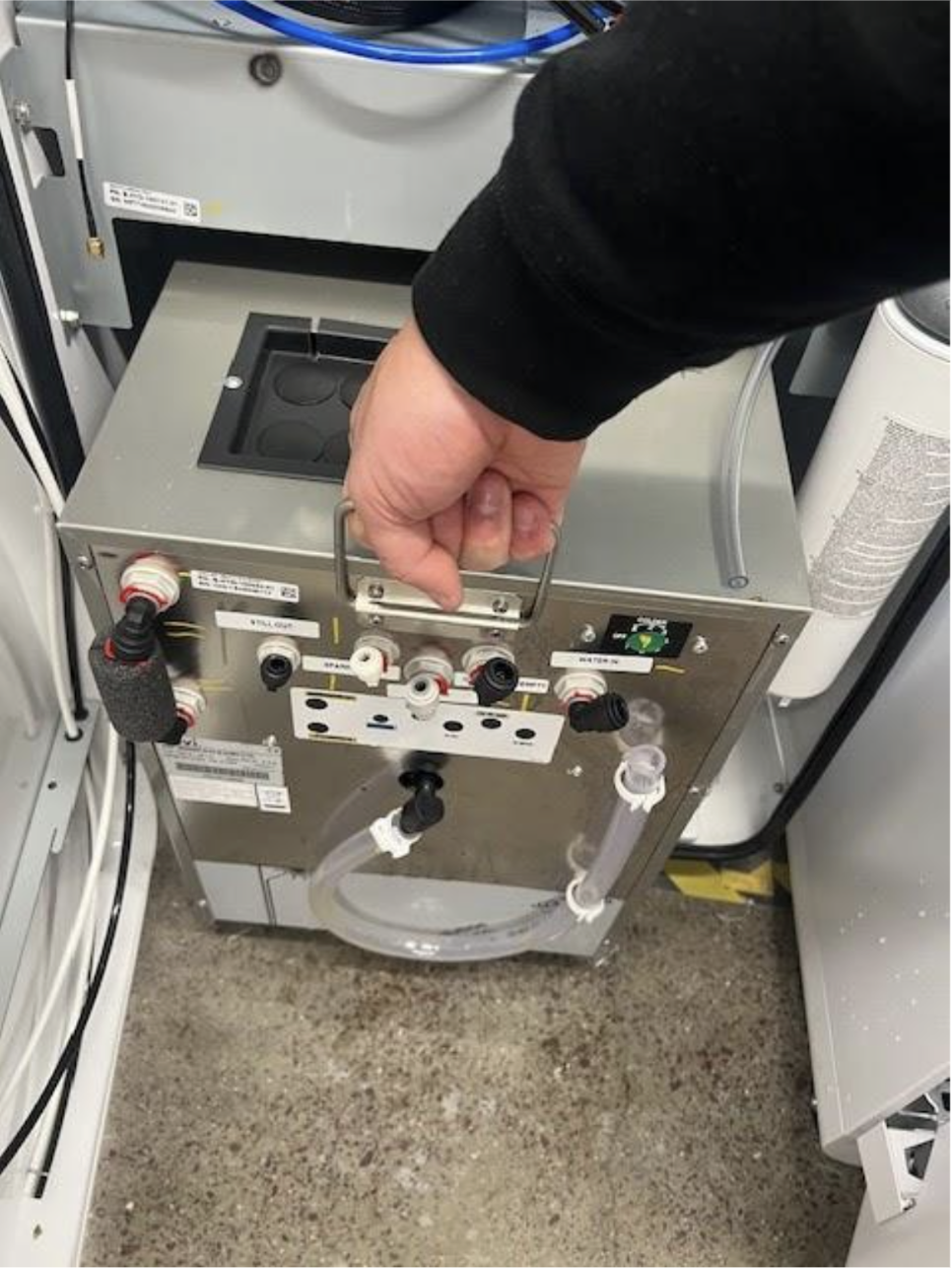

3. Carefully slide the chiller out of the Bevi and place on the ground.
   • Take care to keep the chiller as flat and level as possible.
   • Note: It is possible that some water may spill out of the ice bank while removing the chiller.

Task 3: Remove the sheet metal cover.

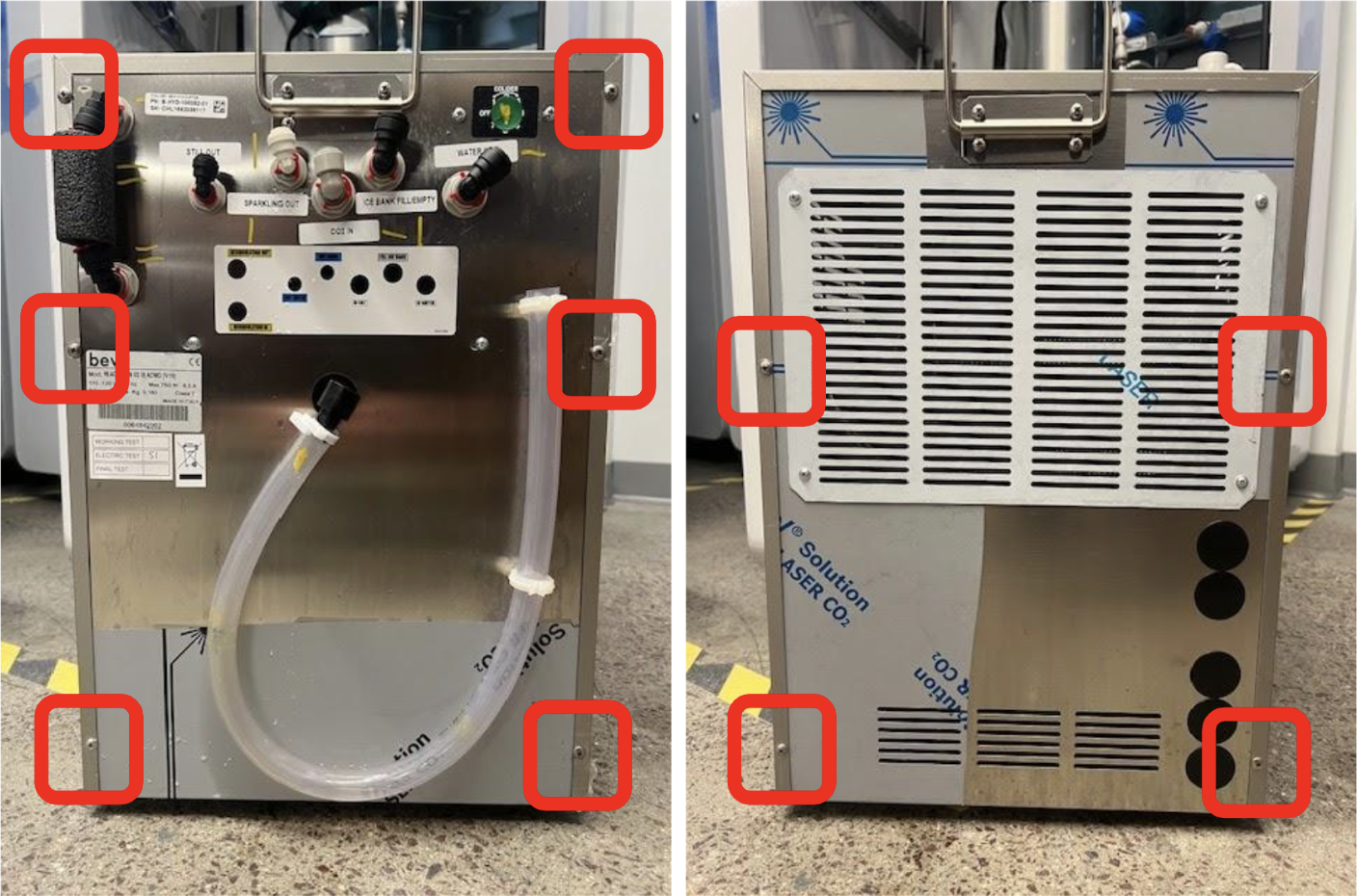

1. Using #2 phillips screwdriver, remove the (10) screws securing the cover to the chiller.
   • There are (6) screws on the front, and (4) on the back.

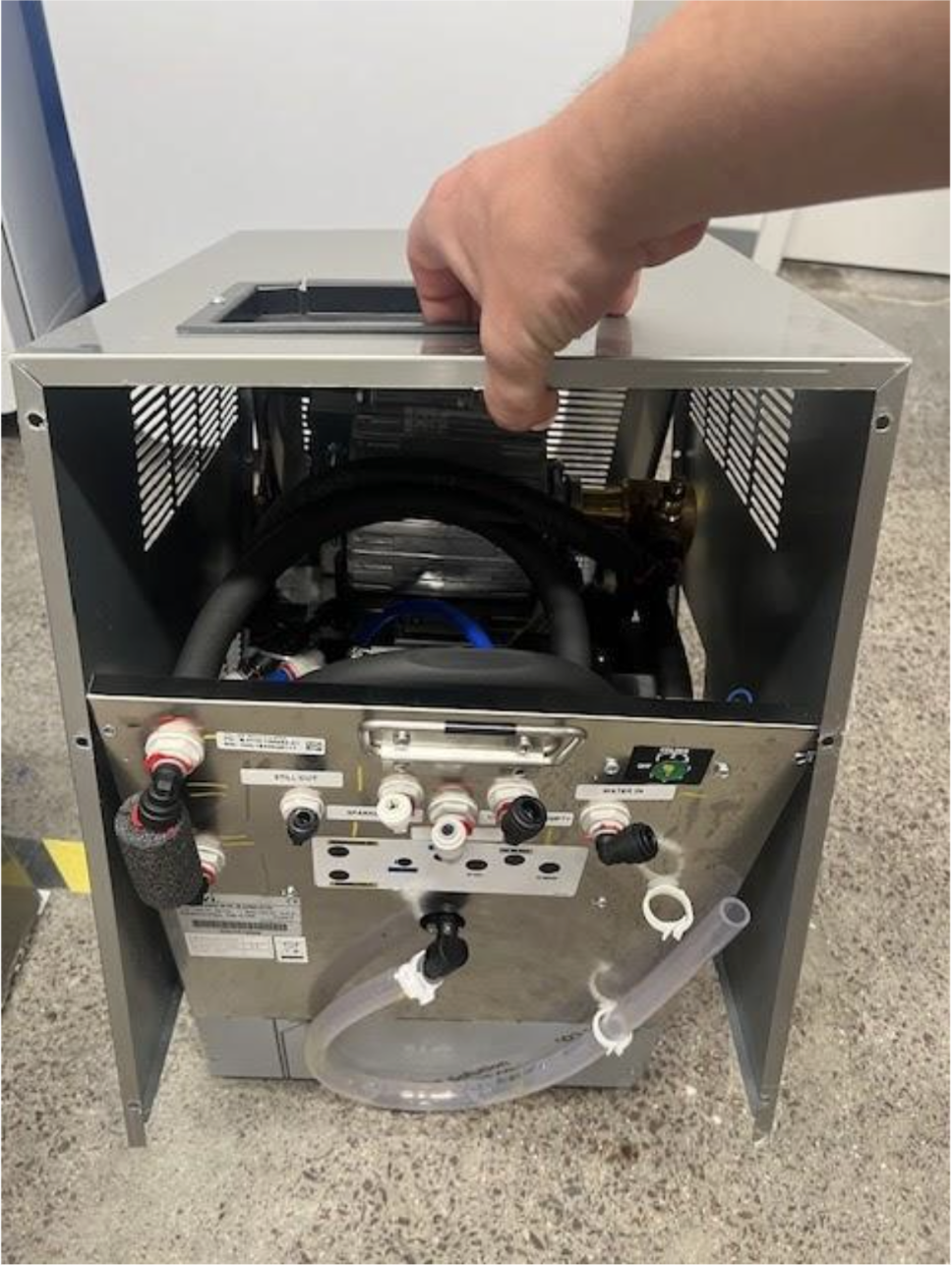

2. Lift the cover off of the chiller.
   • You may need to pull the side panels out slightly to separate the cover from the Chiller.

Task 4: Removing the Chiller Pump.

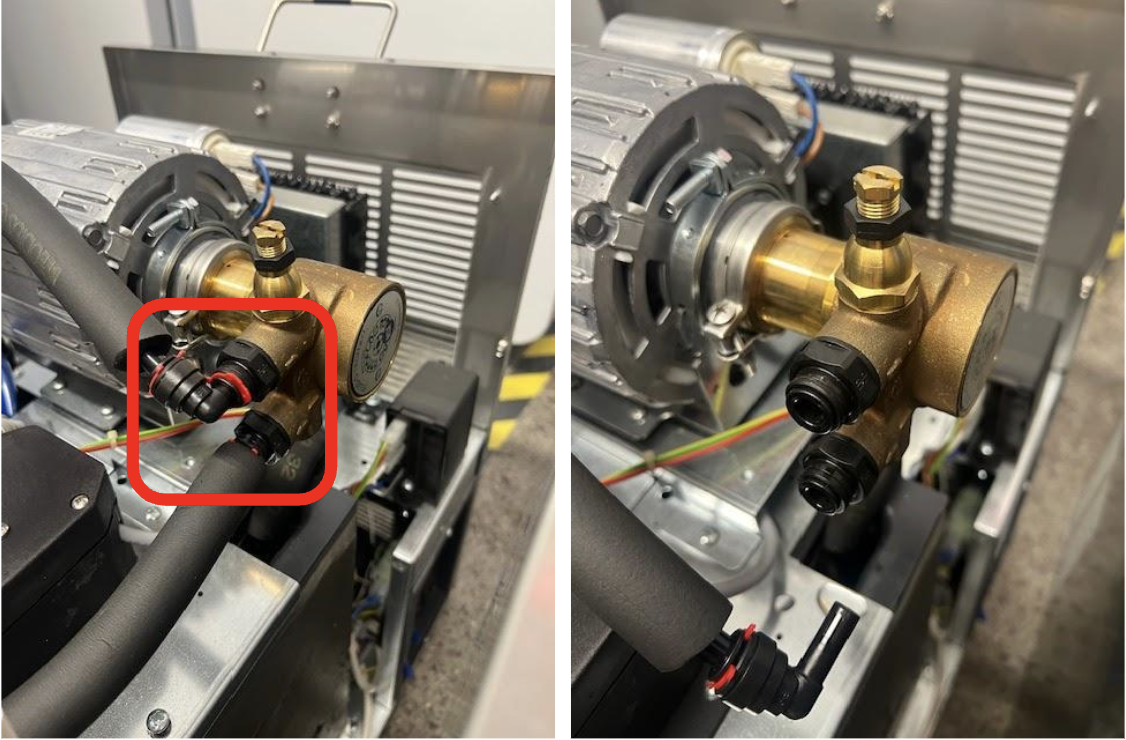

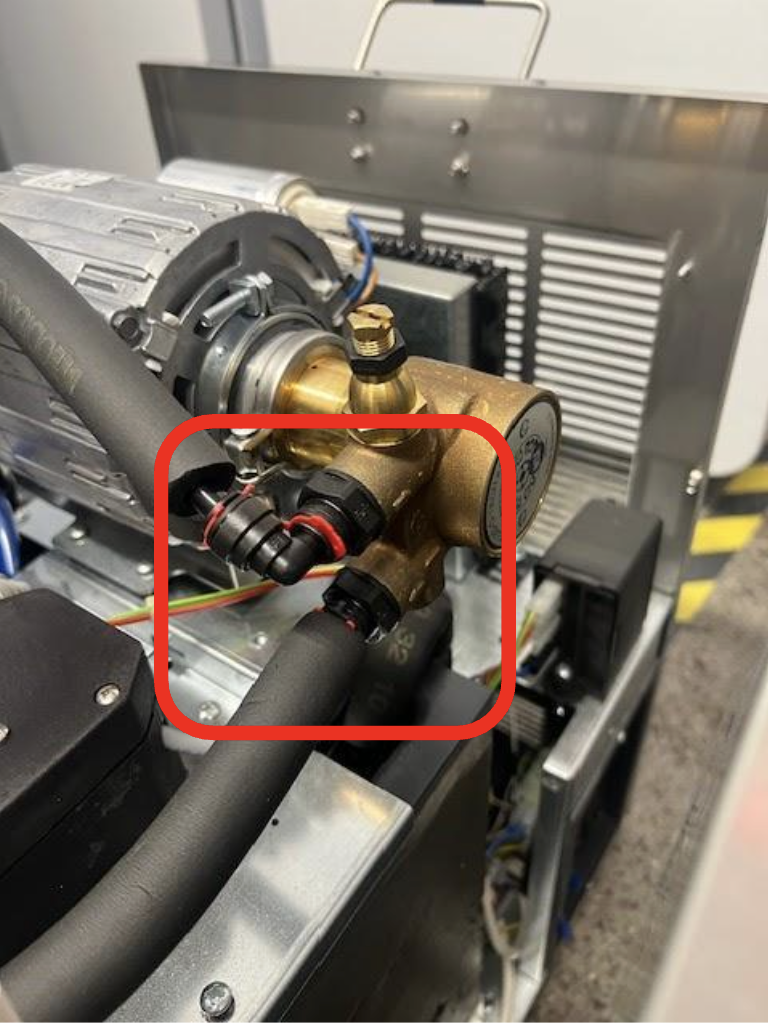

1. Disconnect both the input and output tubes from the Pump Head.
   • Remove the red locking clips.
   • Disconnect the tubes from the push-to-connect fittings on the pump.
     • Take note of the tubing routing for reinstallation.

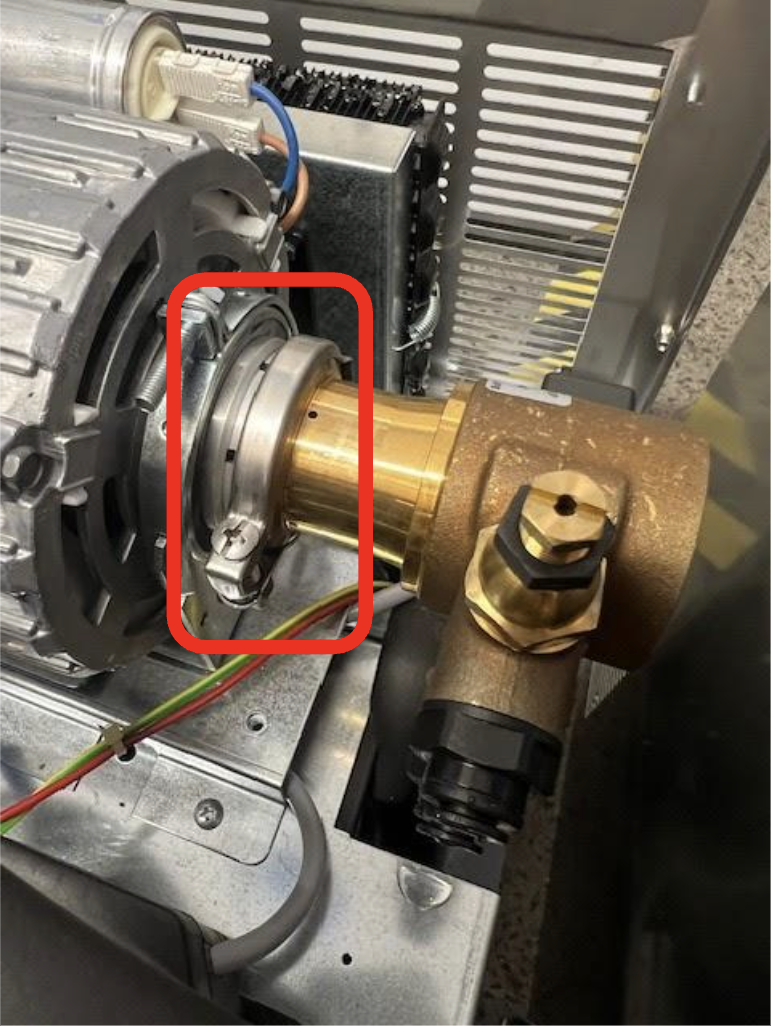

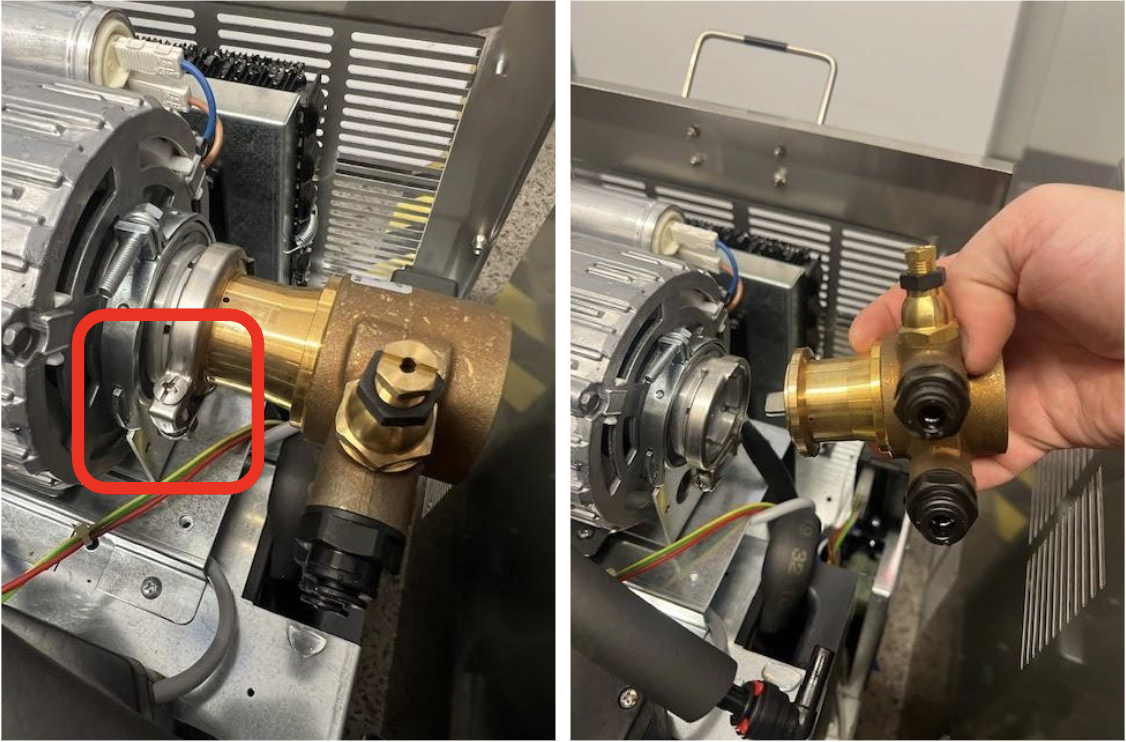

2. Using the #2 Phillips screwdriver, remove the screw on the band clamp that secure the pump head to the motor.
3. With the clamp removed, carefully disconnect the pump from the motor and remove from the Chiller.

Installation Procedure

Task 5: Install the new Chiller Pump.

1. Install the new pump head onto the motor.
   • The pump shaft keys into the slot on the motor output shaft.
2. Reinstall the band clamp and tighten the screw.
   • Ensure the clamp is seated evenly on the flanges of the motor and pump body.

3. Reconnect the input and output tubes to the pump head.
   • Ensure that both tubes are fully seated in the push to connect fittings.
   • Reinstall the red locking clips.

Task 6: Reinstall the Chiller.

1. Place the cover back onto the chiller.
   • Reinstall all 10 screws to secure the cover to the chiller.
2. Lift the Chiller and slide into the base of the Bevi.

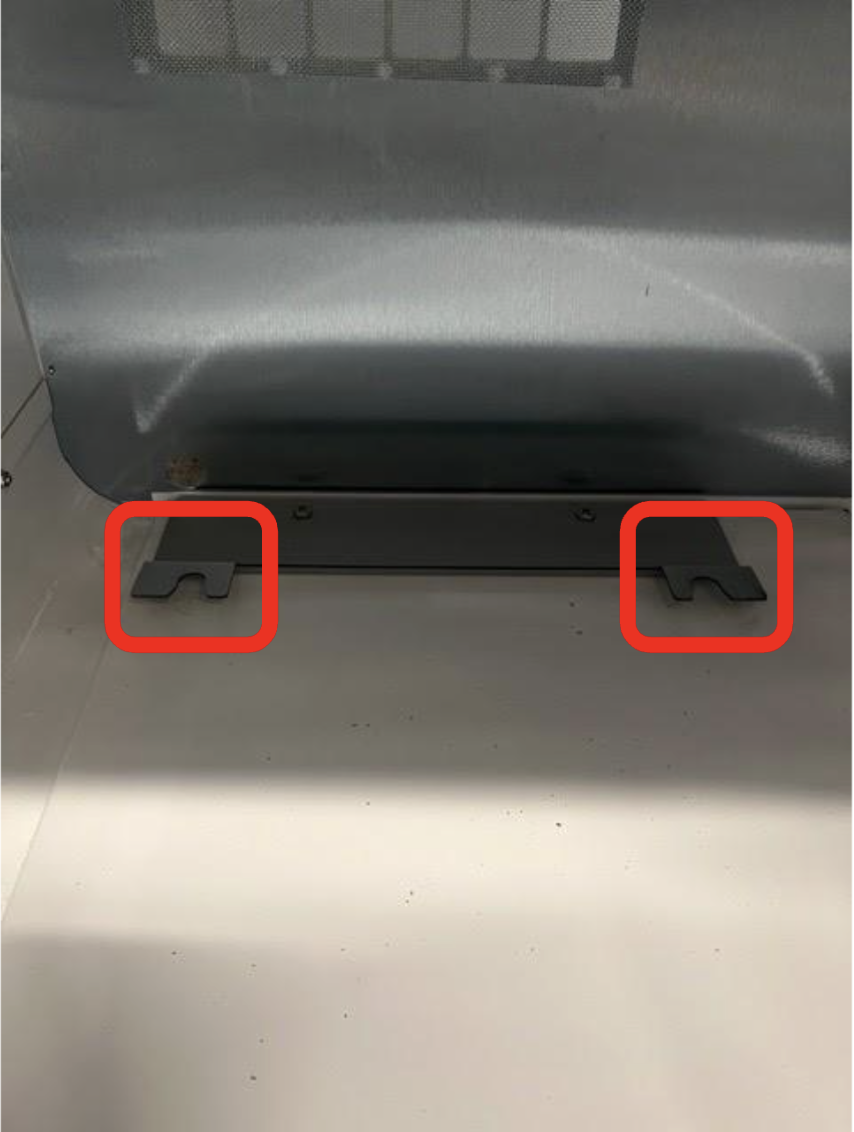

   • The chiller feet need to slide into the slots of the rear bracket for proper placement.

3. Reinstall chiller bracket.
4. Reconnect all tubing to the front of the chiller.
   • Ensure tubes are fully seated into push-to-connect fittings.
   • Reinstall red locking clips.

Task 7: Top off the Ice Bank

1. Power on the Bevi machine.
2. Turn on then supply water.
3. Top off the Ice Bank.
   • During the removal and reinstallation process, it is likely that some water will spill from the ice bank.

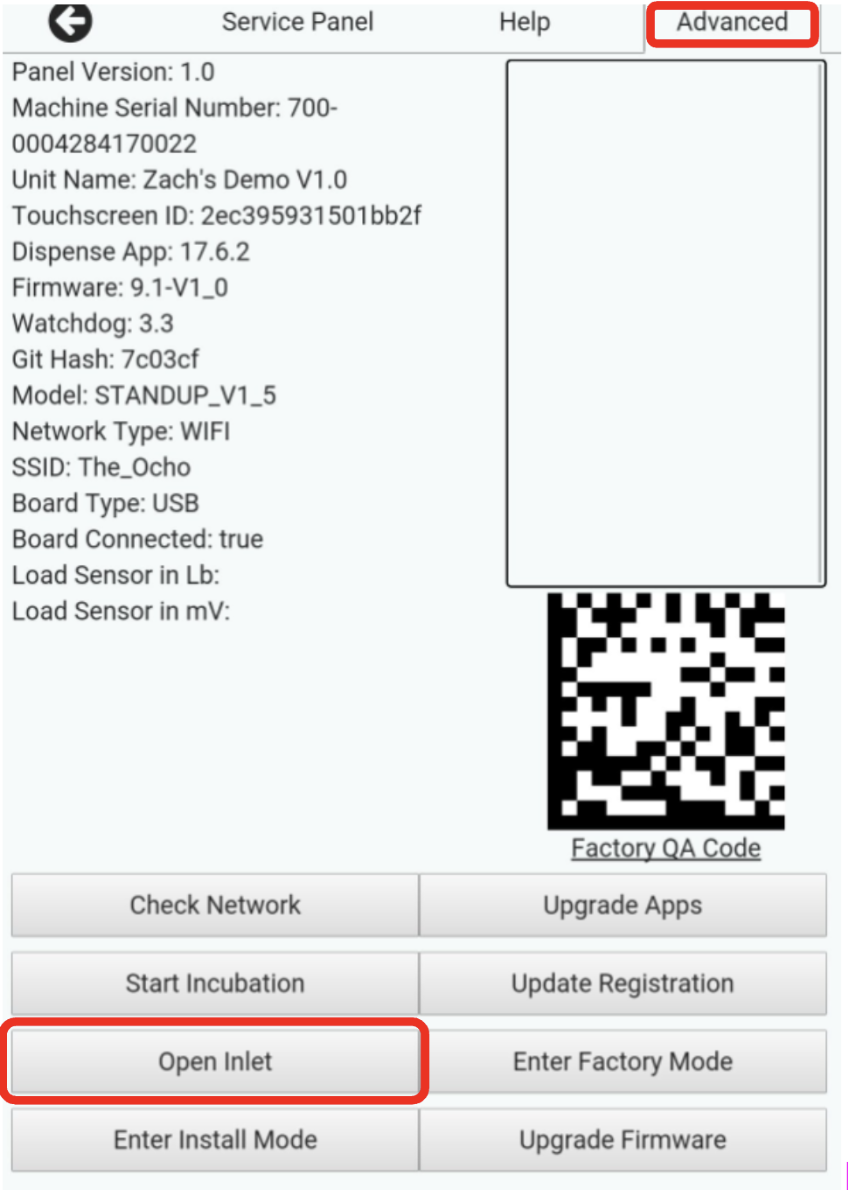

   • From the Service Panel, touch “Advanced” in the upper right corner of the screen.
   • Touch “Open Inlet” in the lower left of the Advanced menu.
     • You should hear the inlet solenoid click open.

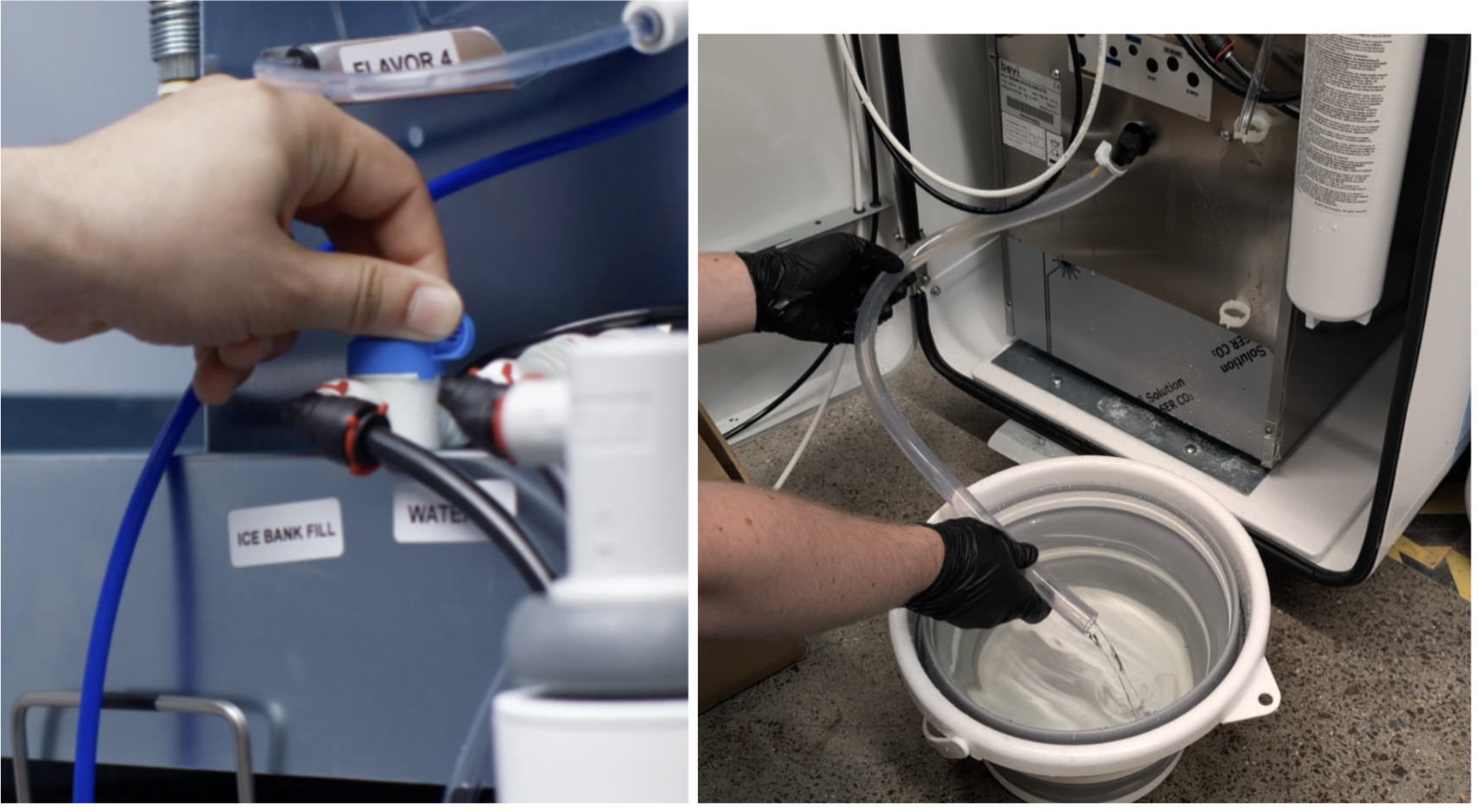

4. With the open end of the overflow tube draining straight down into a collection container, open the ice bank fill valve to begin topping off the ice bank.
   • Open the ice bank fill valve until water begins to flow from the overflow tube.
   • As soon as water is flowing from the tube, close the ice bank fill valve.
   • Allow any excess water to drain from the tube, and re-secure the open end of the tube into the clips.

5. Open Buffer Tank.
   • Turn the Buffer Tank valve counter clockwise so it is pointed upwards to open.

6. Turn on the CO2 tank.
7. Plug in Power Cable and power on the Chiller.

Task 8: Test Functionality

1. Exit the Service Panel to the main dispense screen.
2. Pour both still and sparkling water to verify Bevi is dispensing properly.
   • Continue to pour sparkling water to ensure the new pump head cycles on and off as needed to refill the carbonation tank.
   • If after replacing the pump, you continue to experience issues with the sparkling water, contact Bevi Support at 866-704-BEVI.
3. Check for any leaks.
   • If any leaks are found, inspect all connections and ensure tubing is fully seated.
4. Close and lock the door.
