Flavor Ring Remove & Replace, Standup 1.5

Overview

This guide provides instructions to replace the flavor ring in Standup 1.5 machines. The flavor ring should be replaced if it is damaged, if instructed by Bevi support, or if the flavor ring part is made of a black material (it should be clear).

In this article (click to jump)

• Required Tools & Parts
• Before Beginning
• Replacement Procedure
  • Task 1: Remove the Existing Flavor Ring
  • Task 2: Install the Replacement Flavor Ring
  • Task 3: Verify repair and complete service

Required Tools & Parts

• #2 Philips screw driver
• 3/8" wrench (or adjustable wrench)
• Key to open Standup 1.5 door
• Replacement flavor ring, in either FRU:
  • P/N #720-0176, FRU - FLAVOR RING (single flavor ring)
  • P/N #720-0246, FRU - FLAVOR LINE ASSEMBLY SU (flavor ring, flavor barbs, & flavor lines)

Before Beginning

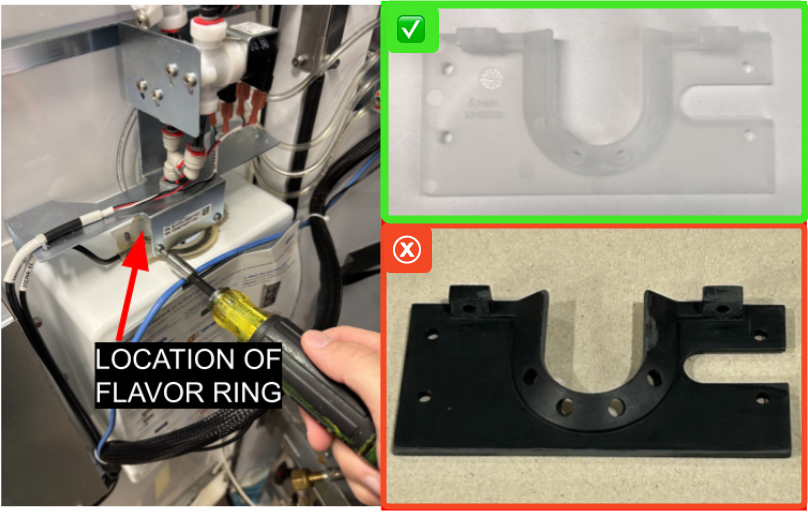

Identify and confirm flavor ring material is correct: the flavor ring should be undamaged and made of a clear material. If a flavor ring is found with a black-colored material, discard and replace the black flavor ring, and contact Bevi Technical Services to report.

Replacement Procedure

Task 1: Remove the Existing Flavor Ring

1. Unlock and open the door of the Standup 1.5 machine.

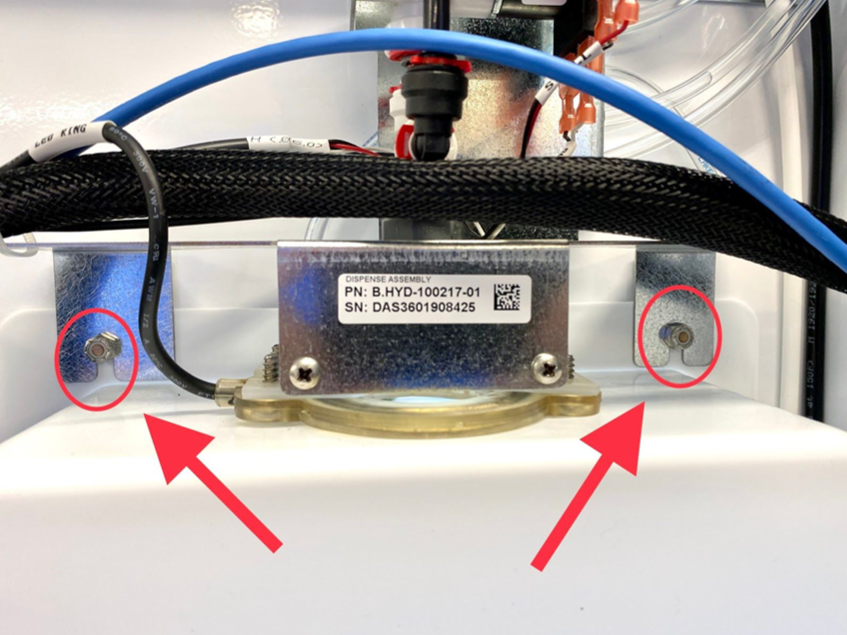

2. Loosen the two nuts located on the left and right side on the inside of the metal bracket.

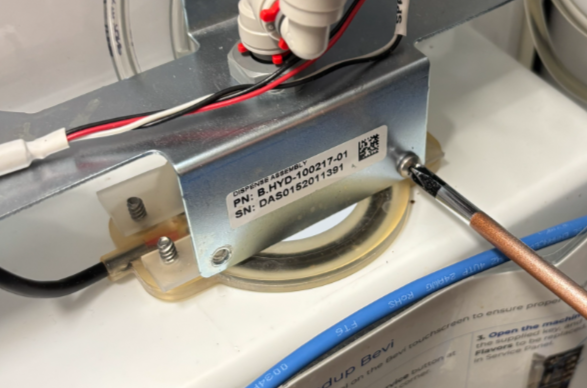

3. Remove the screws holding the flavor ring in place. Set aside for later.

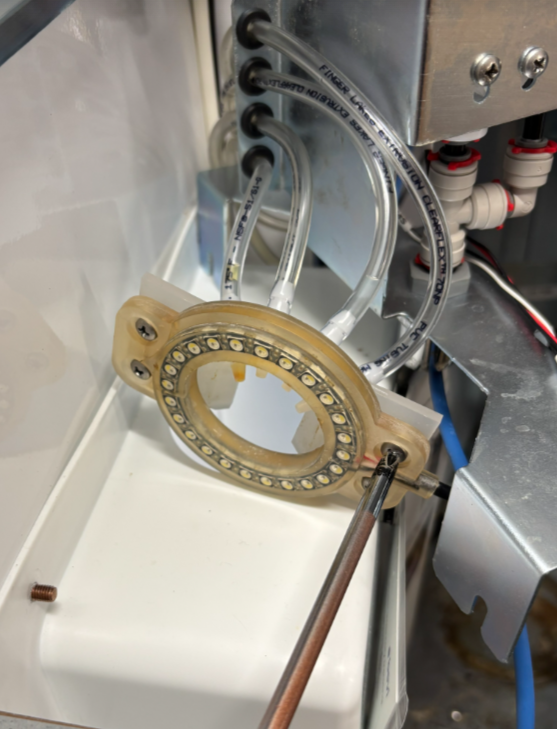

4. Remove the screws holding the LED ring in place. Set aside for later.

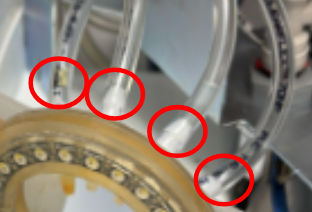

5. Remove the flavor barbs from the flavor ring.
   • Note: If installing the 720-0246 Flavor Line Assembly SU FRU, the existing flavor line barbs and connected flavor lines should be removed from the machine along with the flavor ring.

6. Remove the flavor ring.
   • Note: If swapping the 720-0246 Flavor Line Assembly FRU, remove flavor ring, barb fittings, and flavor line assembly.

Task 2: Install the Replacement Flavor Ring

1. Install the flavor barbs into the new flavor ring.
   • Note: Skip this step if installing the 720-0246 Flavor Line Assembly SU FRU with barbs and lines already attached.

2. Reinstall the screws to secure the LED ring in place.

3. Reinstall the screws to secure the flavor ring in place.

4. Tighten the two nuts on the left and right side on the inside of the metal bracket.

Task 3: Verify repair and complete service.

1. Ensure the flavor barbs are correctly positioned at an angle so that flavor will meet the dispense water stream.
   • If only the flavor ring (FRU #720-0176) was replaced, skip ahead to step 3.
2. If the entire Flavor Line Assembly (FRU #720-0246) was replaced, re-prime all flavors to ensure the flavor pumps are fully primed:
   1. Enter the Service Panel by tapping the gear icon at top left of the touchscreen, and enter the service PIN.
   2. Place a cup or bucket under the nozzle dispense area.
   3. Tap and hold the onscreen prime button until the countdown completes (15 seconds) and confirm flavor is dispensing. Repeat for each installed flavor.
3. Dispense a beverage into a cup or bucket with each flavor selected to ensure flavor streams are angled correctly.
   • Adjust positioning if needed.
4. Close and lock the door.

If you have any questions or need further assistance, please contact Bevi Technical Services at support@bevi.co, or call our support line at 866-704-2384 (BEVI)
