GUIDELINES ON USE OF CARBONATOR ADAPTER KIT- DEVIATION

Updated



Title

GUIDELINES ON USE OF CARBONATOR ADAPTER KIT - DEVIATION

Date

2020-04-02

Author

CORY GOODENOUGH

Version

1

Subject

720-0168 CARBONATOR ADAPTER KIT - DEVIATION

Notify Customers?

  Yes via Mass Notification            Yes If Requested            No

Notify Partners?

  Yes via Mass Notification            Yes If Requested            No

For Questions Contact

support@bevi.co

Description

This document provides guidelines around the use of the carbonator adapter kit 720-0168 (formerly 540-0036) per production deviation DEV-000089.  This kit enables the installation of a V1.5 carbonator P/N #111193-01 (formerly 100052-01), within older Bevi models (V.75 standup, V1 standup, V0 countertop).

FAQs
  • Where can I order the carbonator conversion kit?
    • The 720-0168 (formerly 540-0036) kit is available to order as a spare part via the Bevi storefront.
  • Are there other methods to install a V1.5 carbonator in an older Bevi machine?
    • Yes.  By using a combination of additional 8 mm to ⅜” reducers and extra lengths of tubing, the V1.5 carbonator can be installed in older machines.
  • If an older model Bevi has already been installed with a V1.5 carbonator, do I need to replace the existing fluid connections with this new kit?
    • No.  As long as there are no leaks and machine performance/output is nominal, then there is no need to change the current state of the carbonator installation.

Messaging to Customers

None Required

Messaging to Partners

Please follow the installation instructions when incorporating adapter kits during V1.5 carbonator installations within older Bevi models.

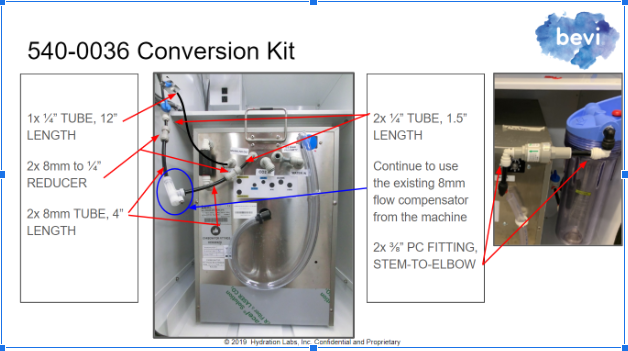

BOM: 720-0168 (formerly 540-0036) Carbonator Adapter Kit - Deviation per DEV-000089
  • - 2x 100229-01 Stem-to-Elbow, 3/8" Push-to-Connect Fitting
  • - 2x 100306-01 1/4" Polyethylene Tube, 1.5" Length, Black
  • - 2x 350-0022 8mm to 1/4" Reducer Fitting
  • - 1x 103616-01 1/4" Polyethylene Tube, 12" Length, Black
  • - 2x 240-0009 8mm Tube, 4" Length, Black



IMPORTANT: The 720-0168 (formerly 540-0036) DEVIATED CARBONATOR ADAPTER KIT DOES NOT INCLUDE A FLOW COMPENSATOR.  THIS KIT MUST BE INSTALLED USING THE EXISTING 8MM FLOW COMPENSATOR FROM THE ACTIVE BEVI MACHINE.



Tool List
  • Polyethylene Tube Cutter
  • Push-To-Connect Tool (optional)



Installation Process (new p/n 720-0168)


Carbonator Inputs

    • Once the carbonator is placed within the machine location, perform the following steps:
  • Water Input:
      • During normal machine operation, water will flow from the filter output, through a water pressure regulator, and into the water input of the carbonator.  Use the 2x ⅜” elbow-to-stem push-to-connect fittings to assist in creating the secure tubing run from filter to carbonator.  As needed, use tube cutters to trim down the existing ⅜” tubes between the filter/regulator and regulator/carbonator.
  • CO2 Input:
    • Connect the existing CO2 polyethylene line from the output of the CO2 regulator to the CO2 input on the front of the carbonator.

Carbonator Outputs

      • Connect the 1.5” length of ¼” tube (provided in the adapter kit) to the soda output of the carbonator.
      • Connect 1x of the straight reducer fitting from the kit to the ¼” tube.
      • Connect 1x of the 8mm tube to the opposite side of the straight reducer fitting.
      • Connect the long arm of the 8mm flow compensator to the 8mm tube.
  • Important - The 8mm flow compensator is currently installed within the Bevi machine and will be re-used with this kit.  The deviated carbonator adapter kit will not ship with an extra flow compensator.
    • Connect the remaining 1x 8mm tube to the short arm of the 8mm flow compensator.
    • Connect the remaining straight reducer to the 8mm tube.
    • Connect the remaining 1.5” length of ¼” tube to the reducer.
    • Connect the ¼” tube to the existing shut-off-valve on the machine soda water line
    • Use the  12” length of ¼” tube to connect to the still output of the carbonator.
      • This tubing can be cut using tube cutters to a desired shorter length in order to facilitate a better fit within the existing machine fluid system.
    • Connect the tubing from the still carbonator output to the corresponding still ¼” push-to-connect shut-off valve that is installed within the existing machine fluid system.
      • It is critical to ensure that the still/soda outputs from the carbonator are connected to the correct still/soda lines on the machine.  To verify, look for labeling on the machine lines and visually trace the entire water flow from carbonator to nozzle.

Inspection

  • After installation of the carbonator and adapter kit, follow instructions in the Bevi installation guide at partners.bevi.co for instructions on returning electrical power, water, and CO2 to the Bevi machine.
  • Use the touchscreen to dispense still and sparkling water, ensuring no leaks within the fluid system and proper dispensing of still and sparkling water from the nozzle.
