[Alert] USB Cable Disconnected, Countertop 1.5

Updated

Overview

This guide covers the criteria for when the USB Cable Disconnected machine alert will fire, as well as the steps to troubleshoot the steps to resolve the issue or diagnose a potential component failure.

NOTE: The "USB Cable" in this alert refers to the internal USB connection between the CT 1.5 touchscreen and the Head Unit Control Board, all located inside the CT 1.5 head unit. This is not the same as the chiller data connection cable between the head unit and the back of the compact chiller; see Chiller Connection Lost Alert article for that troubleshooting.

Alert Details

USB Cable Disconnected - This alert is triggered when the USB connection between the Touchscreen and Head Unit Control board is lost for 5 consecutive minutes. When the cable is disconnected, you will immediately see a “BRB” message, and if the cable remains disconnected for 5 minutes, then the alert will fire. The USB cable is responsible for communication between the Touchscreen and Head Unit Control Board.

In this article (click to jump)

Required Tools & Parts

  • #2 Phillips Screwdriver
  • #1 Phillips Screwdriver
  • Small Container for test dispense

Troubleshooting Steps

Task 1: Power Cycle the Bevi.

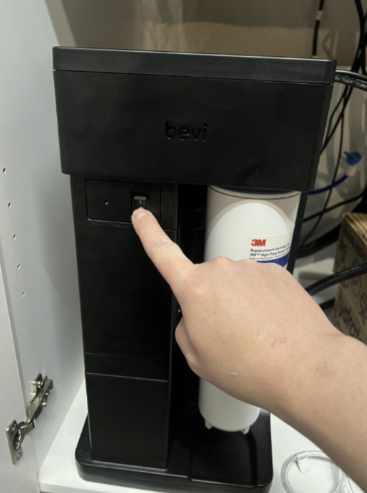

  1. Locate the power switch on the front of the compact chiller.
  2. Power off the Bevi, and wait 5-10 seconds.
  3. Power on the Bevi.

power off ct compact chiller cc switch only.png

Task 2: Remove the Back Panel.

  1. Open the cabinet, and locate the threaded collar (split nut) that secures the head unit in place.
  2. Loosen the collar 1 to 2 turns.

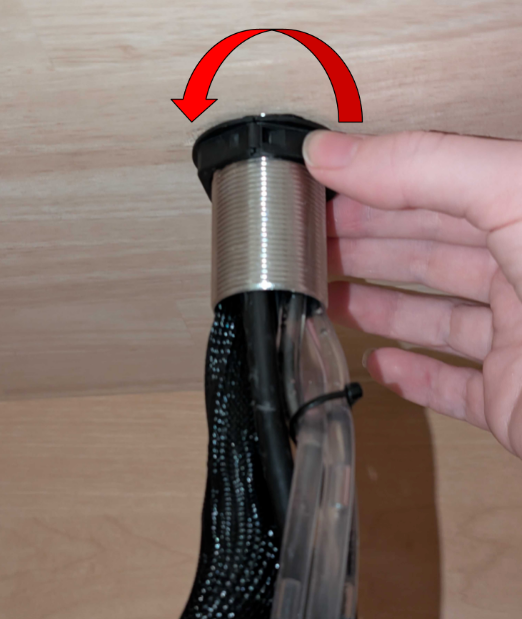

split nut ct 1.5 clockwise.png

  1. Carefully rotate the head unit on the countertop to get access to the back panel.
  2. Using a #2 Phillips screwdriver, remove the 8x screws securing the back panel to the head unit.
    • Place the screws to the side in a safe place.

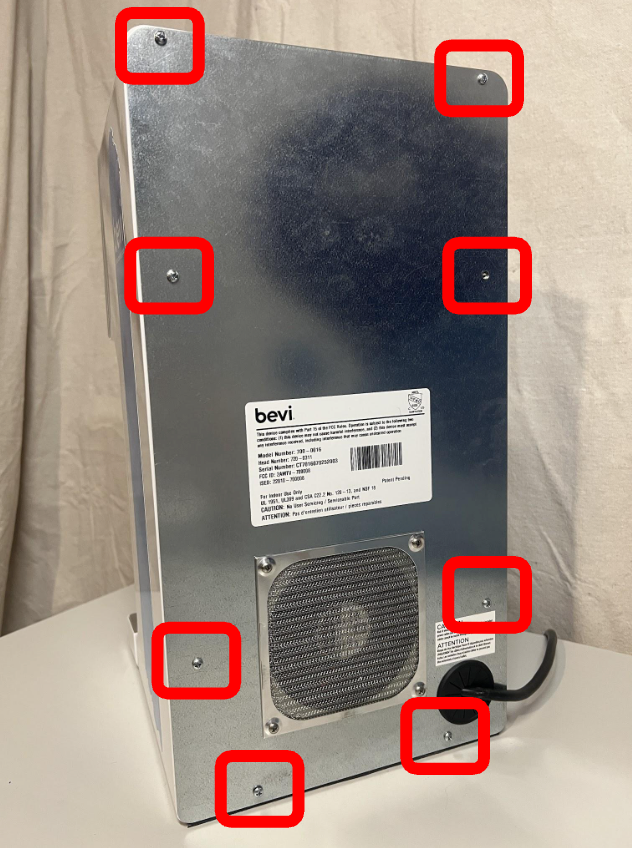

ct 1.5 head unit screws to remove back panel.png

  1. Carefully pull the back panel away from the head unit.
    • NOTE: There are electrical cables attached to the back panel, take care not to put tension on the cables while moving the panel.

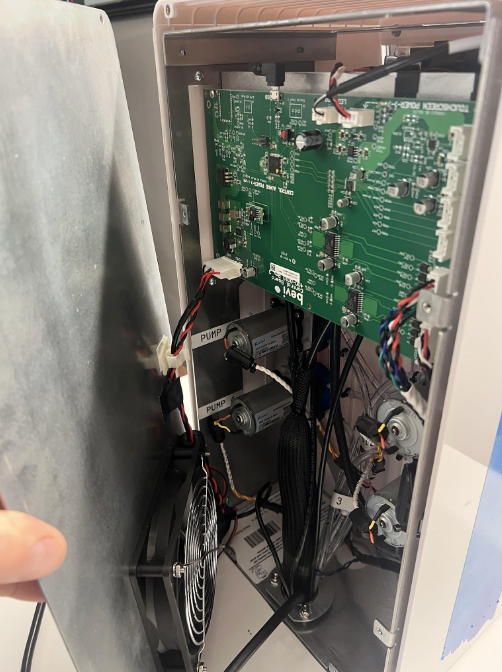

opening back panel off HU ct 1.5 head unit.png

Task 3: Check the Control Board USB Connection.

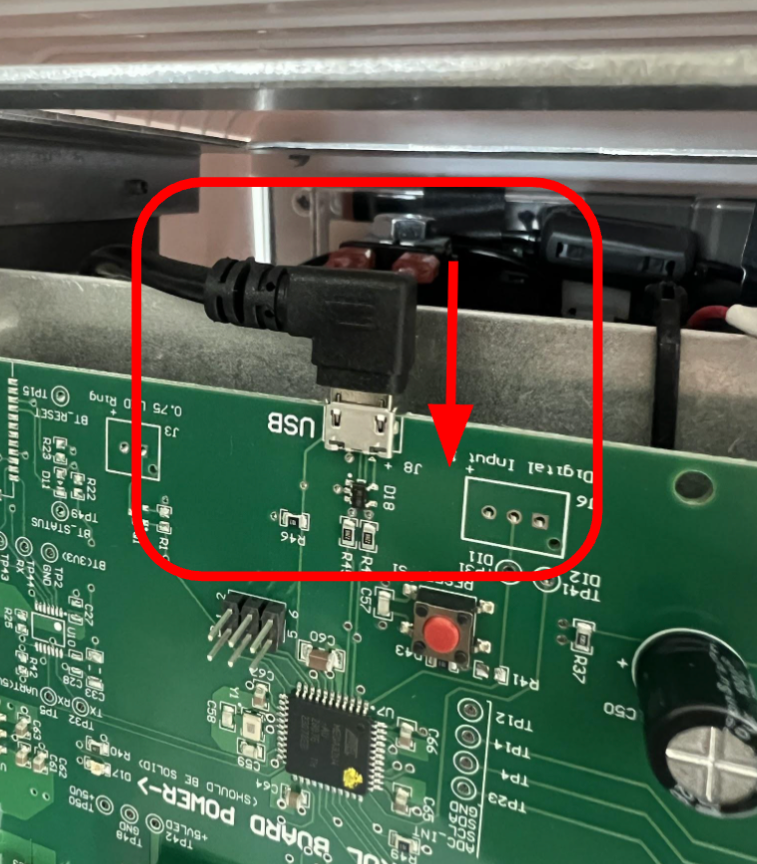

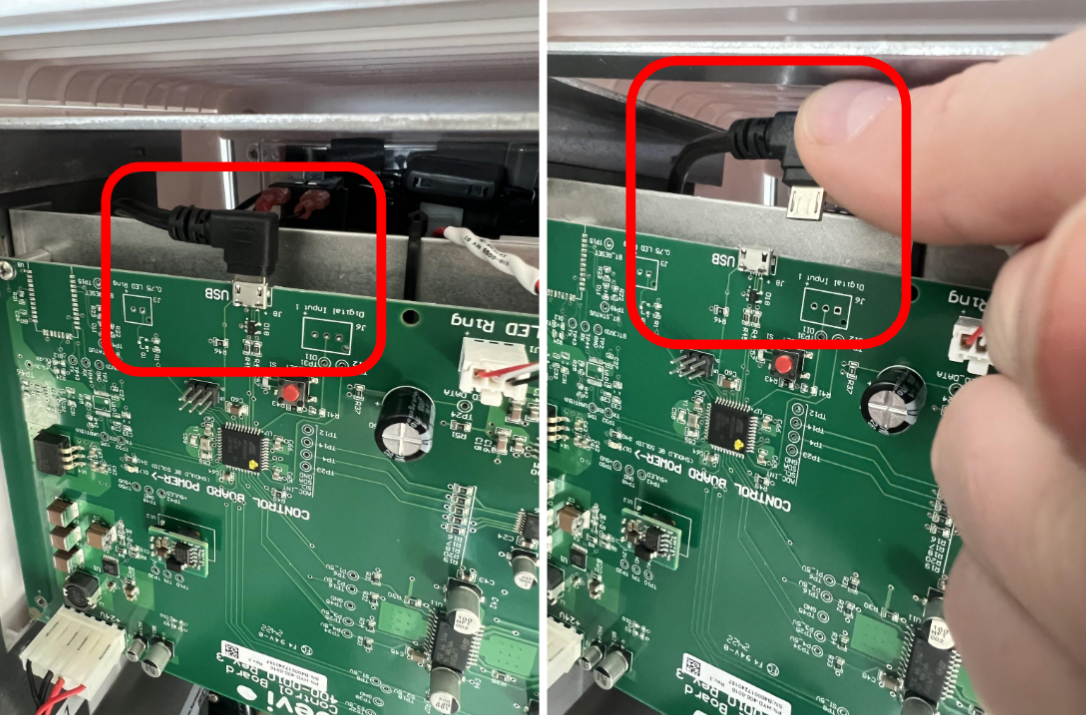

  1. Locate the Micro USB cable on the control board.
  2. Disconnect the Micro USB cable.
    1. Gently wiggle the cable side to side if needed.
    2. Inspect the cable for any visible signs of damage.
    3. NOTE: Take care to not put any stress on the board side connector.

  1. Reseat the USB cable.
    1. Carefully reseat the micro USB cable into the control board connector.
    2. Ensure the cable is fully seated.

  1. Carefully rotate the Head Unit back around to access the screen.
  2. Power on the Bevi.
    • Power on the Bevi using the switch on the front of the Compact Chiller.
  3. Confirm if the USB cable is connected.
    1. If the issue is resolved, the alert will “Auto-Resolve”.
      1. Test the Bevi by pouring still and sparkling water.
      2. Reinstall the back panel.
      3. Rotate the Head Unit back into place, and tighten the split nut.
  4. If the issue is not resolved, there will either be a “BRB” message or the USB Cable Disconnected Alert will still be active, continue to Task 4.

Task 4: Check the Touchscreen USB Connection.

  1. Power off the Bevi using the switch on the front of the Compact Chiller.
  2. Remove the touchscreen.
    1. Locate the two screws at the bottom front corners of the touchscreen.
    2. Using a #1 Phillips screwdriver, remove the screws.
    3. Set the screws aside in a safe place.

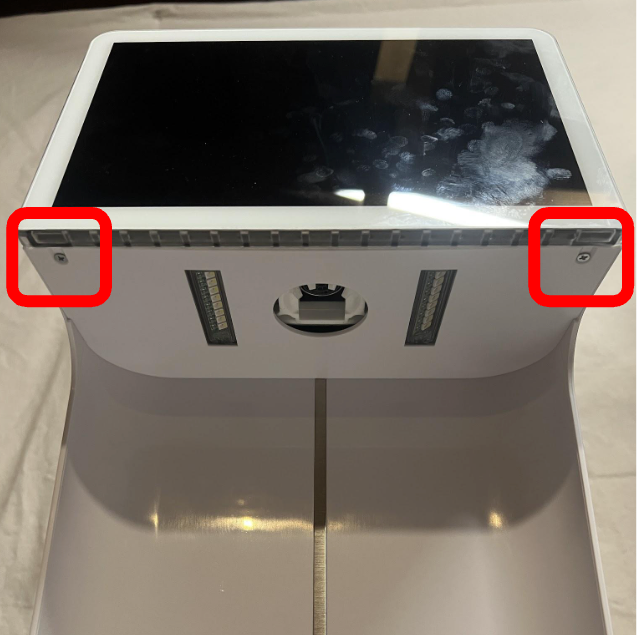

CT 1.5 HU head unit bottom front touchscreen screws.png

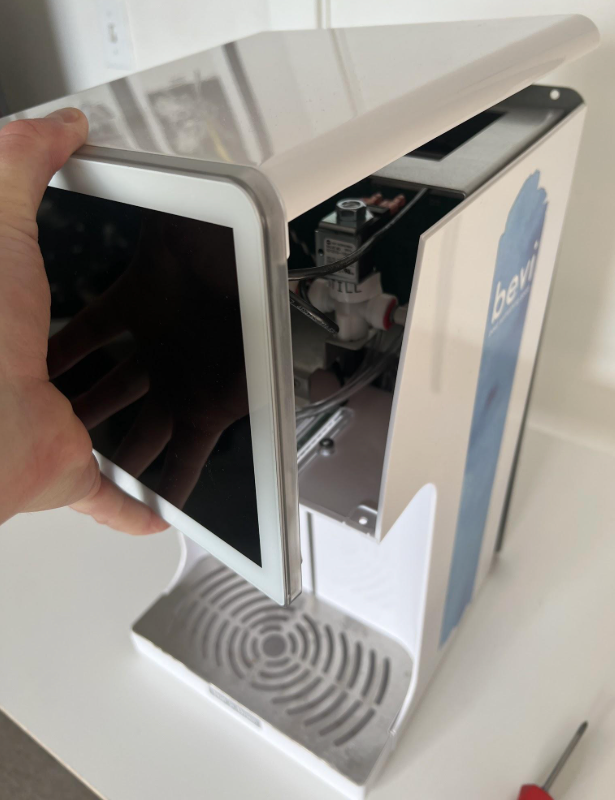

  1. Carefully lift the screen off of the Head Unit chassis.
    • NOTE: The touchscreen cables do not have a lot of slack, take care to not pull or put tension on any cabling.

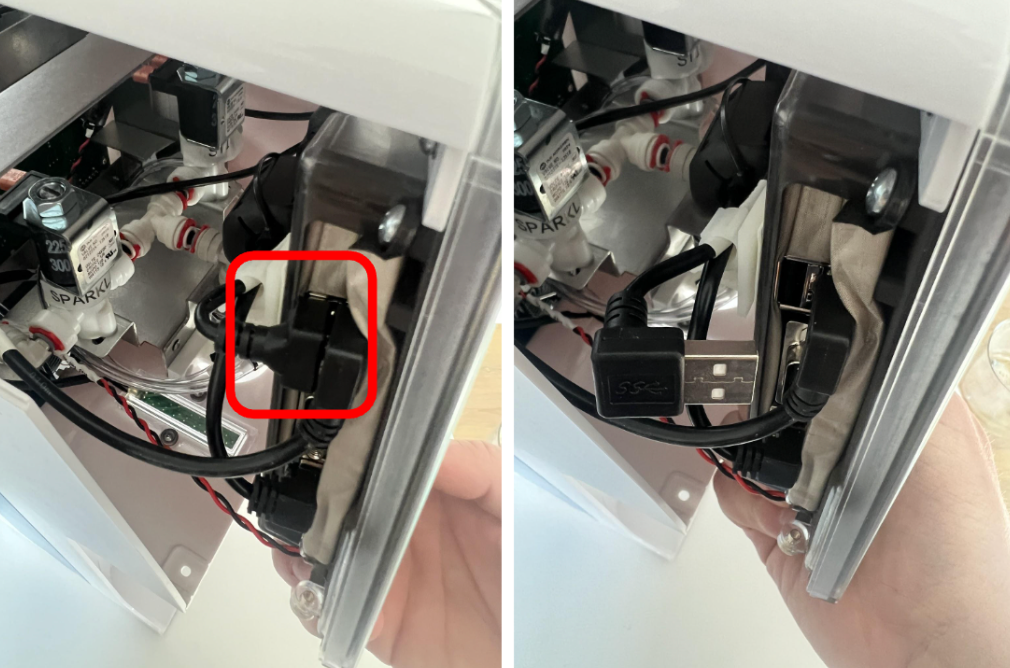

  1. Disconnect the right angle USB cable from the touchscreen.
    1. Gently wiggle the cable side to side if needed.
    2. Inspect the cable for any visible signs of damage.
    3. NOTE: There are two USB cables side by side; disconnect the cable on the left, further from the screen.

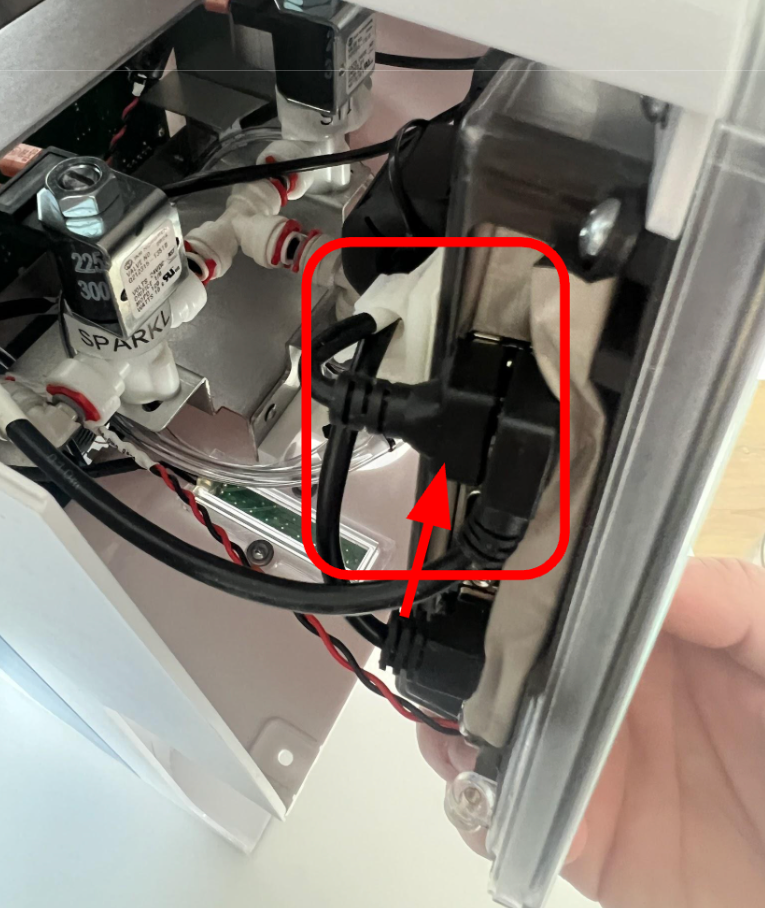

  1. Reseat the USB cable.
    1. Carefully reseat the USB cable into the touchscreen side connector.
    2. Ensure the cable is fully seated.

  1. Reinstall the Touchscreen.
    1. With the cable reconnected, put the touchscreen back in place on the Head Unit.
    2. Do not reinstall the mounting screws yet.

Task 5: Test and Confirm.

  1. Power on the Bevi.
  2. Confirm if the USB cable is connected.
    1. If the issue is resolved, the alert will “Auto-Resolve”.
      1. Test the Bevi by pouring still and sparkling water to confirm the machine is functioning.
      2. Reinstall the touchscreen mounting screws.
      3. Reinstall the back panel.
      4. Retighten the split nut.
  3. If the issue is not resolved, there will either be a “BRB” message, or the USB Cable Disconnected Alert will still be active.
  4. If the issue is not resolved after reseating the USB connections on both the Control Board and Touchscreen, then either the USB cable or Control Board may be faulty.
    1. Contact Bevi Support at 866-704-BEVI (2384).
      • P/N #720-0270 FRU - RIGHT ANGLE USB CABLE
      • P/N #720-0224 - FRU - CONTROL BOARD, COMPLETE, V1.5
