How to Swap the Filter (CT 1.5)

Countertop 1.5 Signature Countertop 2.0
Updated

Overview

This guide details the steps to replace the 3M HF20-I filter in a compact chiller for the Signature Countertop 2.0 or Countertop 1.5.

In this article (click to jump):

Required Tools & Parts

  • 3M HF20-I filter, P/N #901-0003
  • Small bucket or water collection container.

Swap Procedure

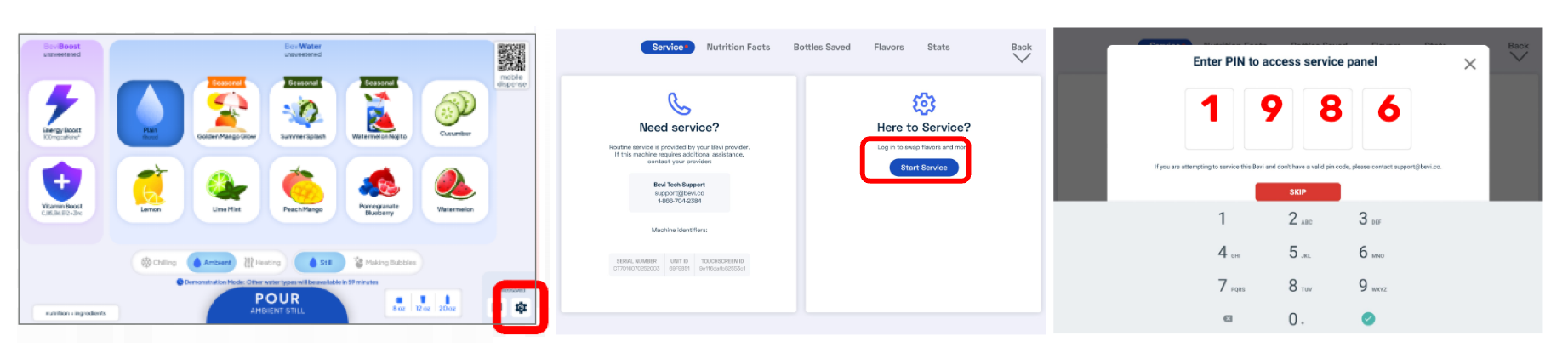

Task 1: Access the Service Panel.

  1. Touch the service (gear) icon at the top left corner of the screen.
  2. Touch "Start Service".
  3. Enter the PIN to enter the Service Panel.

SP CT 1.5 content block.png

Task 2: Start the Filter Swap workflow.

  1. From the Service Panel, select the button depending on Countertop model:

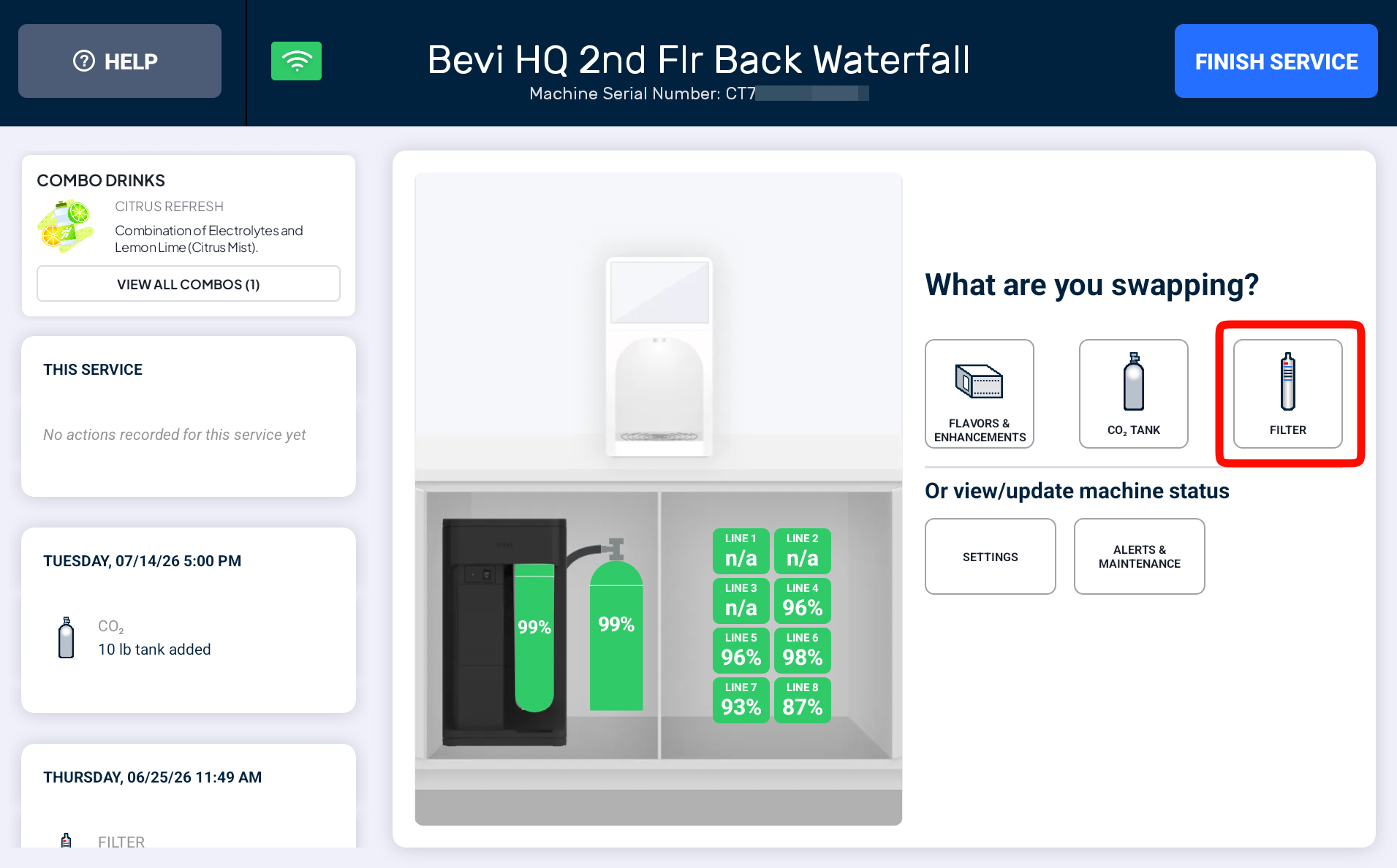

    1. Signature CT 2.0 - Tap Filter under What are you swapping today?
    2. CT 1.5 - Tap Restock in the Filter box.
  2. Follow the on-screen prompts to complete the Filter replacement.
Signature CT 2.0
(Legacy) CT 1.5

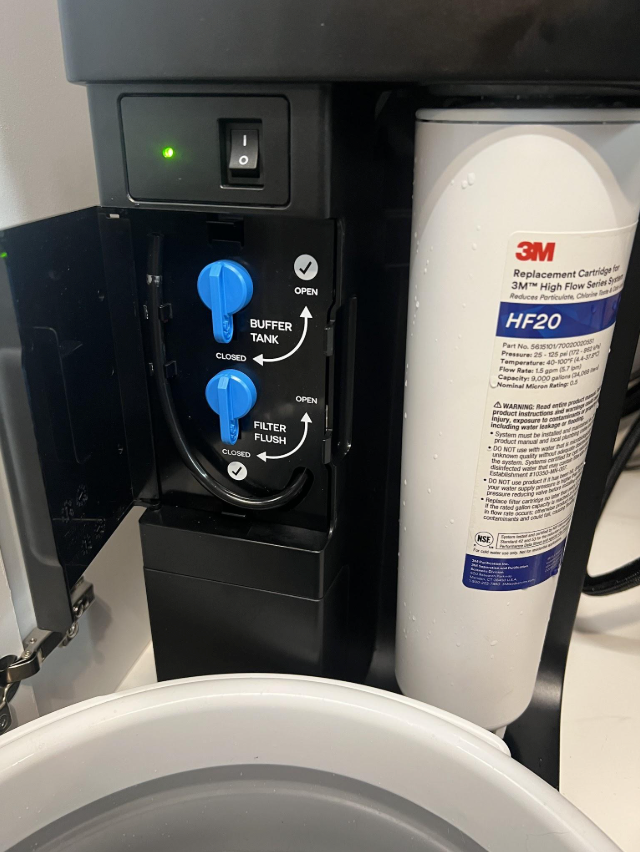

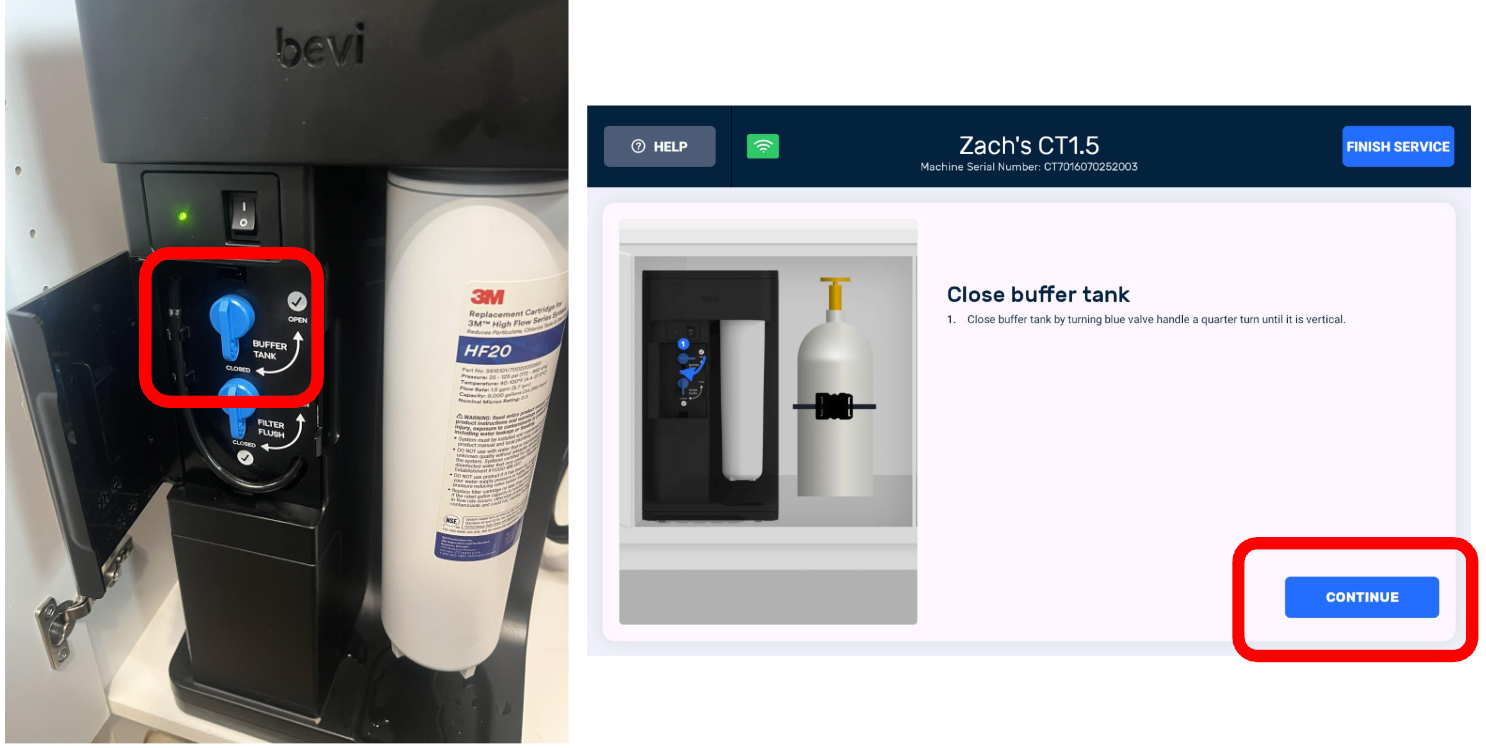

Task 3: Close the Buffer Tank.

  1. Open the cabinet doors to access the Chiller.
  2. Close the Buffer Tank.
    • Open the access panel on the front of the chiller.
    • Turn the buffer tank valve 1/4 turn until it is pointed down in the closed position.
  3. Touch “Continue”.

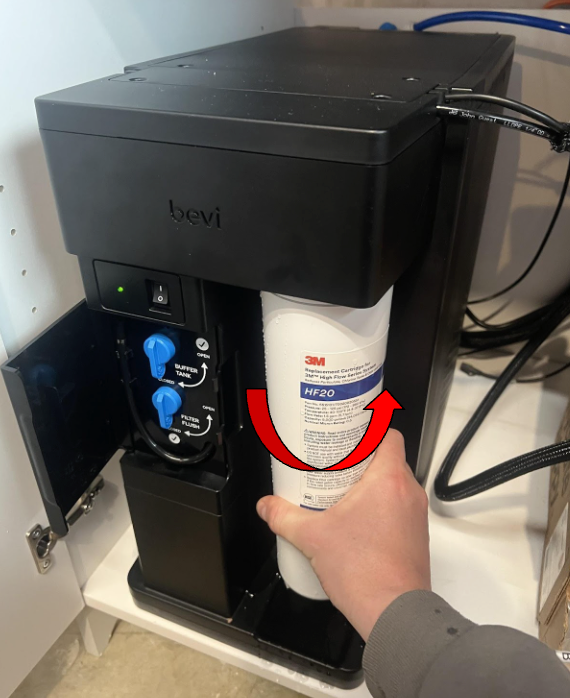

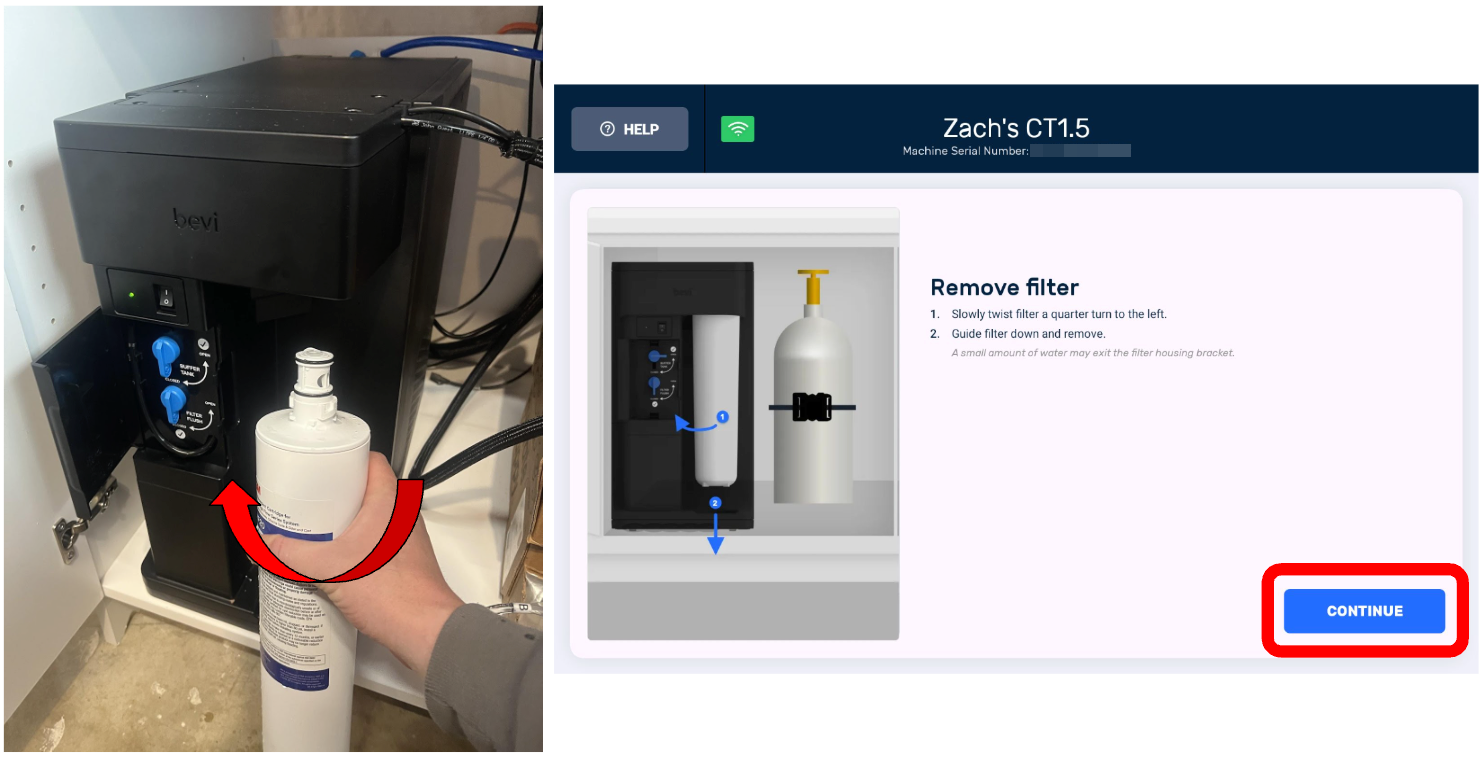

Task 4: Remove the old filter.

  1. Gently twist the filter to the left to remove.
  2. Guide the filter down out of the filter head and remove.
  3. Touch "Continue".

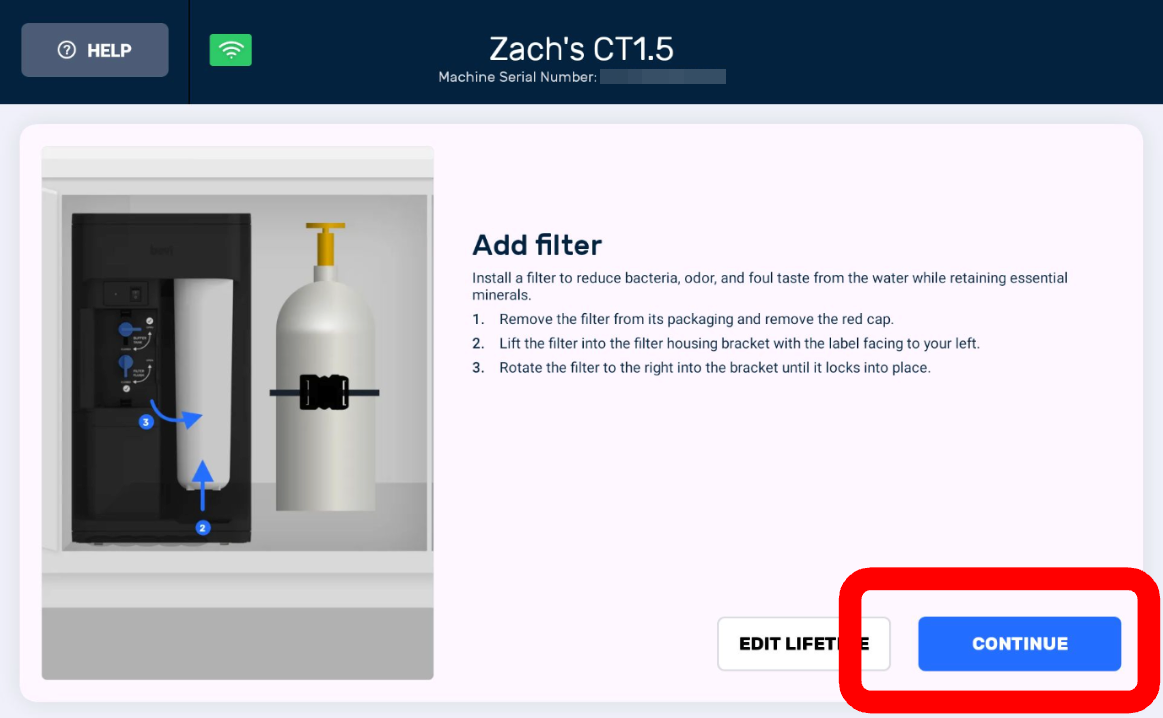

Task 5: Install the new filter.

  1. Remove the filter from its packaging, and remove the red cap.
  2. Lift the filter into the filter housing, with the label facing to the left.
  3. Rotate the filter to the right into the bracket until it locks into place.
  4. Touch “Continue”.

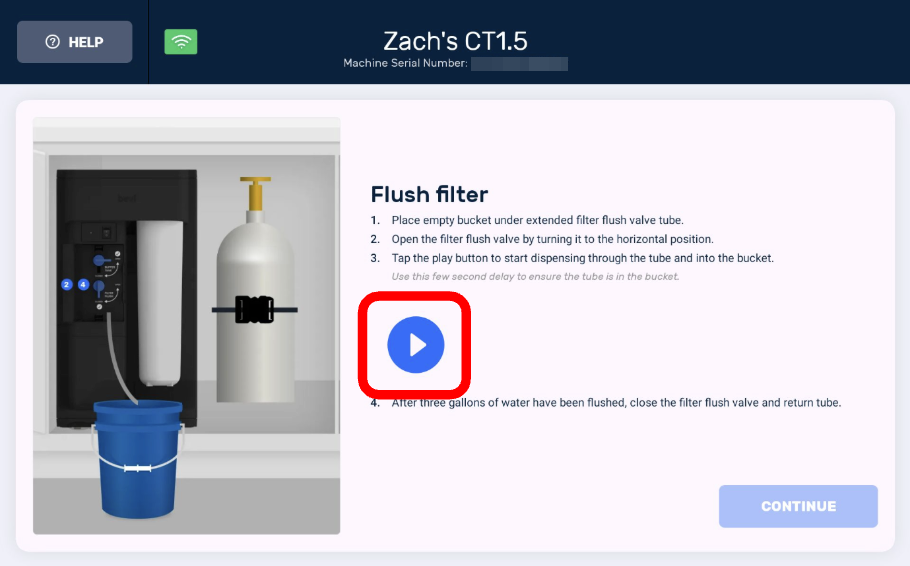

Task 6: Flush the Filter.

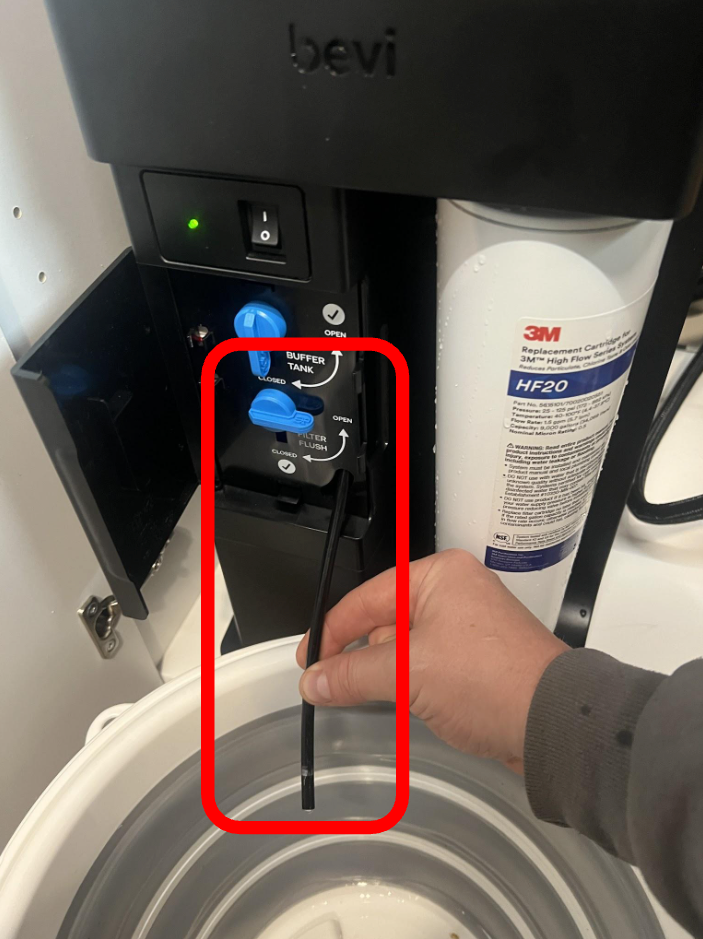

  1. Pull the filter flush valve tube out of the retaining clips.
  2. Place an empty bucket under the extended filter flush valve tube.
  3. Open the filter flush valve by turning it to the horizontal position.

  1. Tap the play button to start dispensing through the tube and into the bucket.
    • Use this few second delay to ensure the filter flush tube is in the bucket.

  1. After three gallons of water have been flushed, close the filter flush valve and return the tube to the retaining clips.
    • If three gallons of water was not flushed in the first attempt, repeat the flush process.
  2. Touch “Continue”.

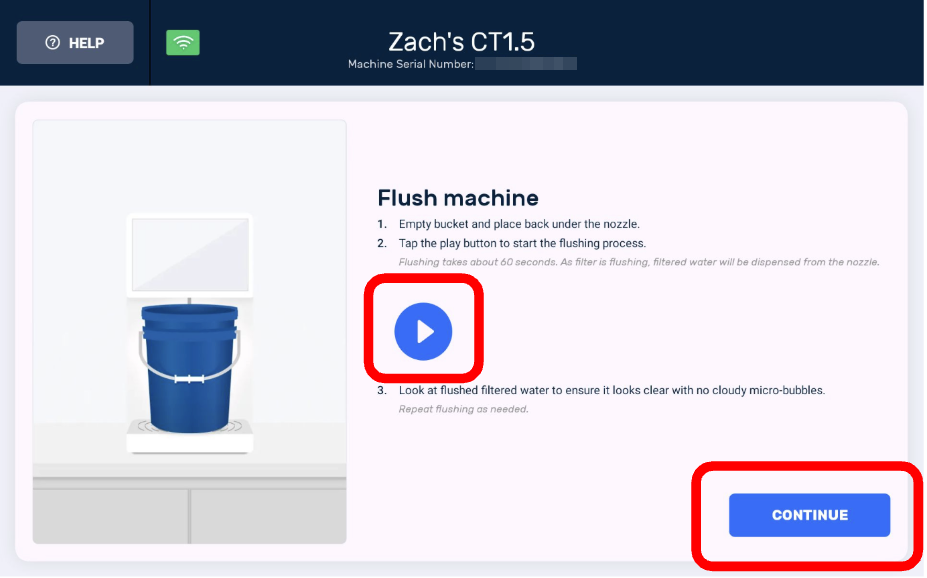

Task 7: Flush Machine.

  1. Empty bucket and place back under the nozzle.
  2. Tap the play button to start the flushing process.
    • Flushing takes about 60 seconds.
  3. Inspect the flushed filtered water to ensure it is clear with no cloudy micro-bubbles.
    • If water is cloudy, repeat flushing as needed.
  4. Touch “Continue”.

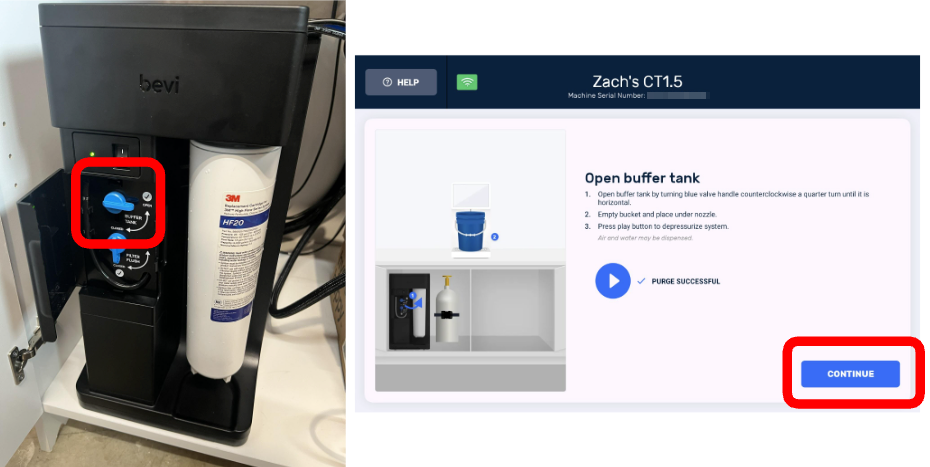

Task 8: Open Buffer Tank.

  1. Open the buffer tank by turning the valve counterclockwise until it is horizontal.
    • Once opened, close the access panel.
  2. Empty the bucket and place back under nozzle.
  3. Press the “Play” button to depressurize the water system.
    • Air and water may be dispensed.
  4. Press “Continue” to complete the filter swap.

bevi droplet favicon.png If you have any questions or need further assistance, please contact Bevi Technical Services at support@bevi.co, or call our support line at 866-704-2384 (BEVI)
