Overview
Machine alerts indicate when a machine requires attention. These alerts can be viewed on the Well and within the machine’s onscreen service panel to help your team effectively manage your Bevi machines. The alerts and criteria below are for the Countertop 1.5 (CT 1.5) model.
Set up automatic email alerts to notify your team of issues and access relevant troubleshooting material prior to arrival. This allows service teams to be prepared to resolve any service or retrofit needs.
Definitions
Sev 1 alerts are Severity 1 ("red") and mean dispenses from the machine are blocked.
Sev 2 alerts are Severity 2 ("yellow") and do not block dispenses, but require attention. Some may escalate if not resolved promptly.
Index of Alerts & Troubleshooting Links:
| Machine Alert | Type | Triggered By |
| Water In Base | Sev 1 | Leak sensor detects ~1/4” of water in the base of the chiller. |
| Chiller Connection Lost | Sev 1 | Head Unit lost communication with the Compact Chiller for 5 minutes. |
| Ice Bank Low | Sev 1 | Bevi has detected low water level in the ice bank. |
| Chiller Electrical Issue | Sev 1 | Bevi has detected that the chiller in this machine has been frequently overcurrenting, preventing it from delivering cold drinks. |
| Inlet Water Unavailable | Sev 1 | Source water is shut off or experiencing prolonged low water pressure for more than 24 hours. |
| Chiller Not Cooling | Sev 1 | Chiller temp is above 8° C for more than 24 hours. |
| USB Cable Disconnected | Sev 1 | Communication with the head unit control board is lost for >5 minutes. |
| Inlet Water Temporarily Unavailable | Sev 2 | Buffer Tank pressure is <0 psi for 1 min after dispense. |
| CO2 Early Run Out/Leak | Sev 2 | CO2 high switch reads low, but expected inventory calculation is at or above 40% |
| Poor Ventilation Suspected | Sev 2 | Sensor data monitoring several ranges indicates potential poor ventilation conditions. |
Resolving a Machine Alert in the Countertop 1.5 Service Panel

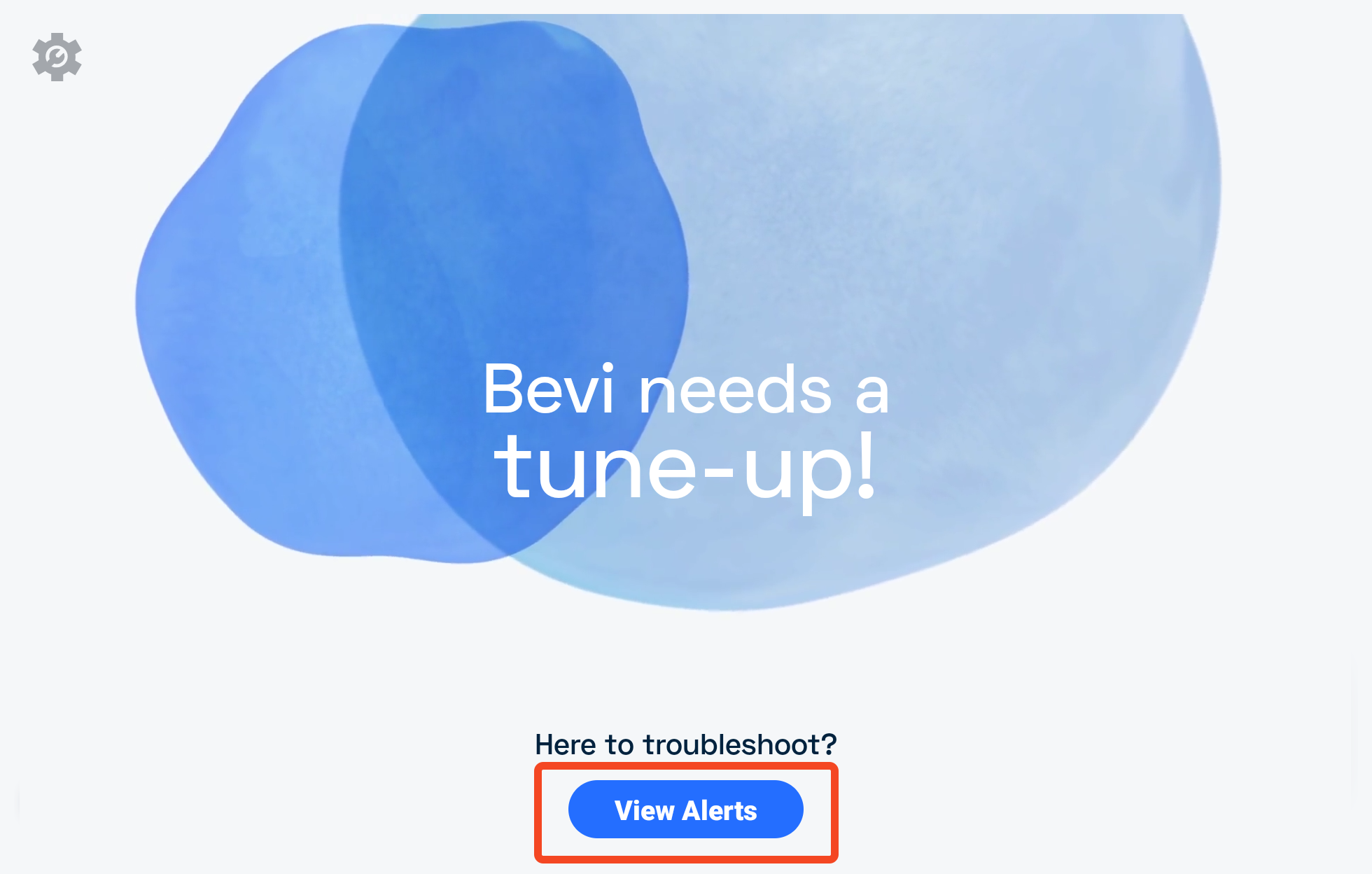

A unit with a Sev (Severity) 1 machine alert will display an Out of Order (OOO) screen indicating the machine has detected a Sev 1 alert and needs service (see images above). Tap View Alerts on this screen to enter the service panel directly.
A unit with a Sev 2 machine alert will still allow dispense, and won't indicate an active machine alert until you enter the Service Panel (*Except for Inlet Water Temporarily Unavailable and Ice Bank Potentially Low alerts).
Follow the steps below to review the current machine alert(s) and locate relevant troubleshooting guides.

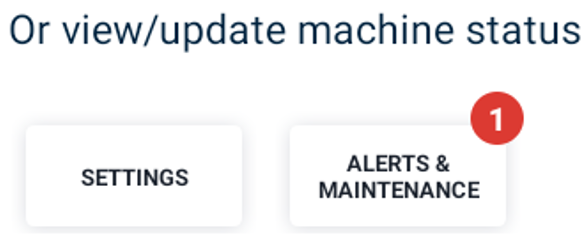

Step 1: Enter the Service Panel (Pin: 1986). Click the Machine Alerts button in the service panel to open the Machine Alerts screen. The number will indicate the total count of machine alerts.

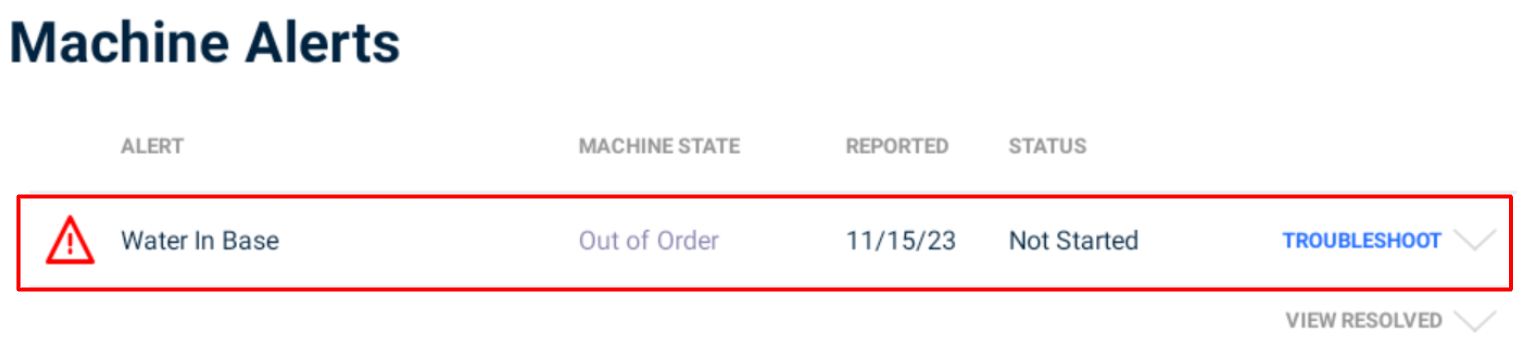

Step 2: Identify the alert that needs to be addressed. In the example below, we're resolving a water in base alert.
Step 3: Click Troubleshoot to the right of your issue to reveal more information.
Step 4: Scan the QR code with your smartphone to access the relevant troubleshooting article.

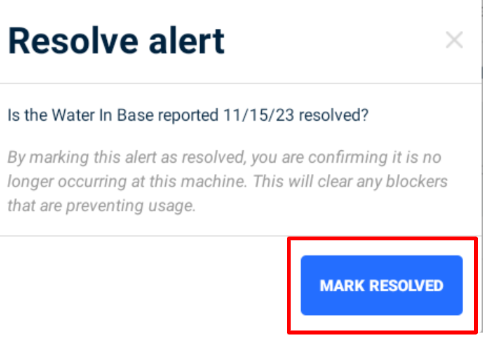

Step 5: Once troubleshooting steps are complete and the issue is fixed, click Mark Resolved.

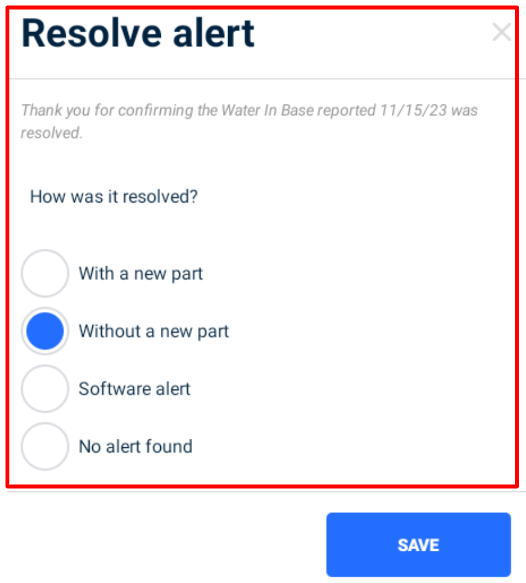

Step 6: You will be prompted to confirm how the issue was resolved. Select the appropriate resolution and click Save.
Step 7: The alert has been resolved, and will move to the list of resolved alerts. Tap the drop down to see the full list of all alerts that were resolved.
