Overview
This guide walks through the step by step process of swapping the Gen 1 SBC (Single Board Computer) for a replacement of the same kind in a Standup 2.0.
If you are working with a UK/Europe (240 V) machine, or upgrading a Gen 1 → Gen 2 SBC, visit either one of these pages instead:
- Gen 2 Single Board Computer (SBC) Remove and Replace (NA and UK/EU)
- Gen 1 to Gen 2 Single Board Computer (SBC) Upgrade (US/NA only) - Pending
In this article (click to jump):
Required Tools & Materials
- Small Flathead screwdriver
- Plastic pry tool
- #2 Philips Screwdriver
- Cable snips
- Zip Ties
Removal Steps
Task 1: Open door
-
To access the SBC, the front door must be open.
-
On the Bevi screen, touch the gear icon in the upper left corner.
-
Touch the Start Service button.
-
Enter the service pin “1986”, the door will open automatically.
- If needed, press the Open Door button at the top of the screen to re-open the door.
-
Task 2: Power off the Bevi
-
Once the door is open, power off the Bevi.
-
The power switch is located on the back, at the top of the Bevi.
-
Task 3: Remove the restock instruction card
-
Remove the restock instruction card by carefully removing the 3 plastic rivets securing the card to the door.
-
Gently pry the plastic rivets up using a small flathead screwdriver.
-
The SBC is located on the inside of the door, on the upper right hand side.
-
The SBC is covered by a black plastic splash guard.
-
Task 4: Removing the SBC
-
Remove the plastic splash guard
-
This is done by simply gently pinching the left and right sides together to release the tabs
-
-
Using your cable snips, cut the zip ties securing the cables to the door
-
There are three zip ties that should be cut. Two above the SBC that secure the HMI and Cellular wires, and one below that secures the USB cable
-
This will give you more slack on the cables, making it easier to manipulate the SBC and disconnect the cables
CAUTION: Take extra care to avoid cutting any wires.
-
-
Unscrew the the four phillips screws that fasten the SBC to the door
-
Make sure to set the screws aside in a safe place, they will be reused to install the new SBC.
-
- Once the SBC has been unscrewed, disconnect the USB and Ethernet cables.
-
These two cables are larger and stiffer than the others, disconnecting them first will allow for easier access to the backside of the SBC
-
-
Disconnect the two Cellular Antenna wires from the front of the SBC
-
We recommend taking a photo of these connections prior to removing for reference when reinstalling the new SBC.
-
The two cellular connections are labeled on the SBC as “MAIN” and “DIV”
-
-
These cables disconnect by gently lifting on the wire to disconnect the brass connector.
-
-
Gently flip the SBC over to access the connectors on the backside.
-

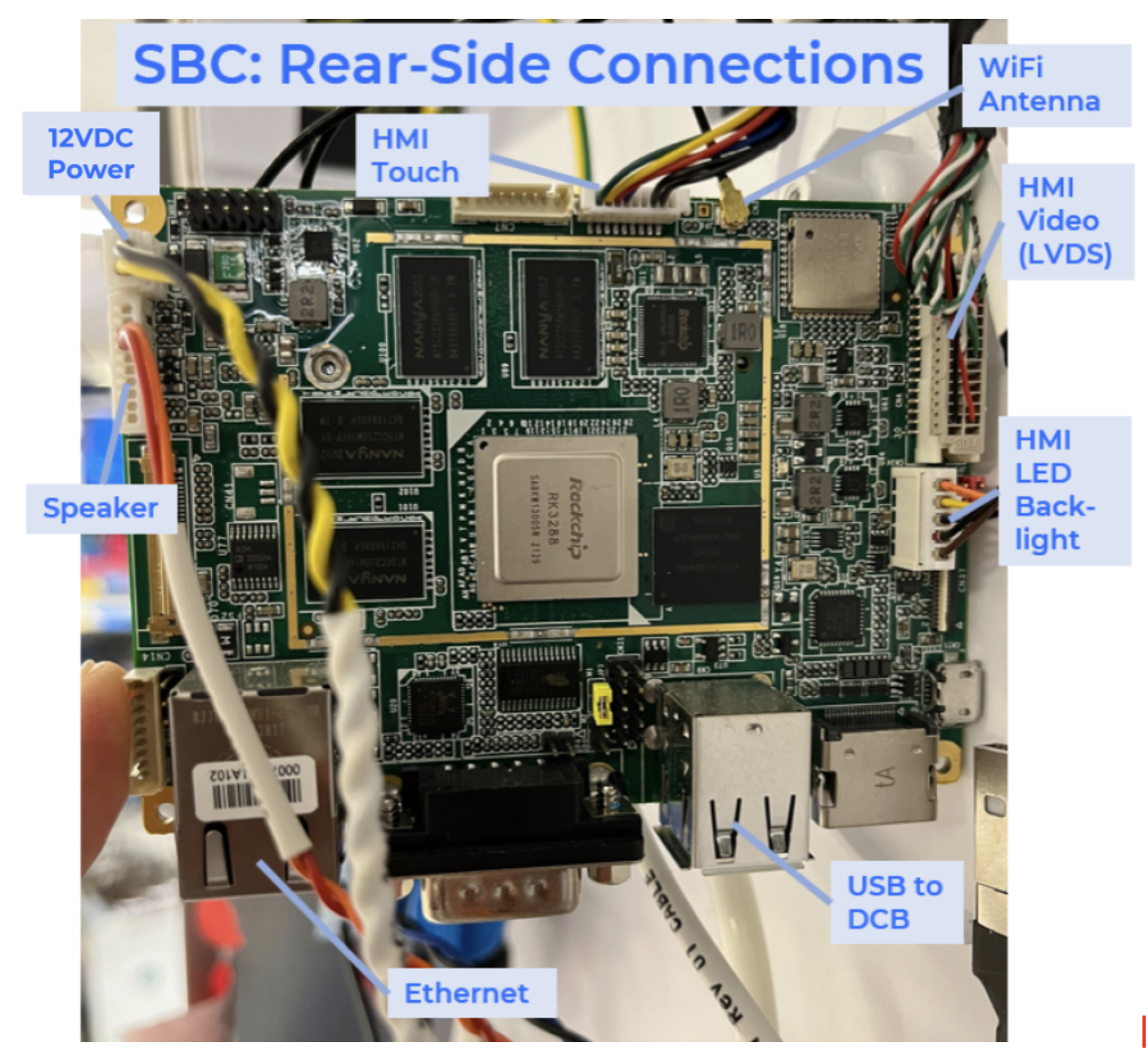

There are six individual cables that need to be disconnected from the back of the SBC
-
There are three cables from the HMI, one WiFi antenna wire, the speaker cable, and the SBC power cable.
-
-
-
Disconnect all remaining cables from the SBC.
-
Using your small plastic pry tool, gently remove the cables from the connectors on the SBC.
-
Each connector has a small “shoulder” on either side that you can gently pry up using the plastic tool.
-
-

Installation Steps
Task 5: Installing the new SBC
-
Reconnect the six cables on the back of the new SBC
-
Each of the cables has a unique connector, they cannot be installed in the wrong place
-
Ensure that each cable is fully seated into the connector
-
-
Flip the SBC back over and reconnect the USB and Ethernet cables
-
It is much easier to reconnect these cables before the SBC is reattached to the door
-
-
Reinstall the four phillips screws to attach the new SBC to the door.
-
Tighten the screws until they are snug; do not overtighten.
-
These screws go into plastic, so it is possible to strip the threads if overtightened.
-
-
-
Once the SBC is installed on the door, reattach the two remaining cellular wires.
-
These are labeled as “MAIN” and “DIV” on the SBC.
-
Reference the photo in Task 4, Step 5 above (click to jump).
-
Task 6: Update the Touchscreen ID
-
Now that the new SBC is installed, power on the Bevi machine.
-
Once powered on, the new SBC will boot up into Factory Mode.
-
Connect to the internet:
-
Follow the setup instructions on screen to connect to the internet.
-
-
Once connected the Bevi will download and install any available updates.
-
You MUST contact Bevi Support to have the units Touchscreen ID updated.
-
The replacement SBC will have a new Touchscreen ID.
-
Contact Bevi Support at 866-704-2384.
-
Bevi Support will assist in updating the Touchscreen ID on the Well, and pushing the software properties for the unit to the new SBC.
-
Test & Verify Replacement
Task 7: Test the machine
-
Test the functionality of the Bevi machine to ensure that your issue has been resolved
-
If the issue is resolved:
-
Reinstall any zip ties that were cut to secure cabling to the door
-
Reinstall the splash guard over the SBC
-
Reinstall the restock instruction card
-
Close the door
-
-
If the issue is NOT resolved:
-
Double check that all cables have been reconnected to the SBC.
-
Contact Bevi Support at 866-704-2384 for further assistance.
-
