[Guide] Bevi Standup 2.0 - Removal and Replacement - Manifold 3

  • Updated

Manifold 3 Removal and Replacement Guide



Part Number: 720-0064

Overview

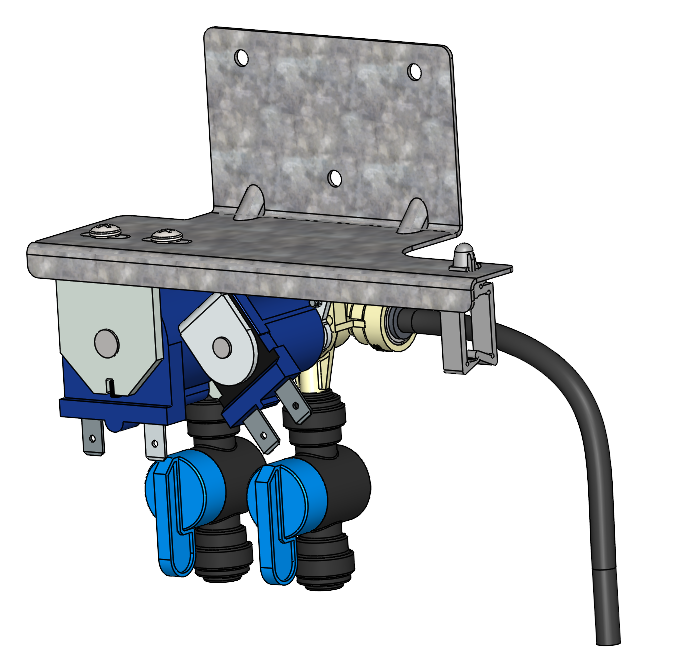

This document will show you how to remove and replace Manifold 3 in a Bevi Standup 2.0. Manifold 3 takes chilled, ambient and sparkling water from the carbonator outputs and sends it to the nozzle assembly.



Note: This document assumes a tech has already read through the appropriate troubleshooting guide for the issue at hand.  If the appropriate guide has not yet been reviewed, please begin there to ensure Manifold 3 is the source of the problem.



Components for Manifold 3

  • (2) solenoid valves
    • Still water solenoid
    • Sparkling water solenoid
  • (2) ¼” inputs from still and sparkling tubes
  • (1) ¼” output to nozzle

Questions Answered in this Document

Q.How to remove manifold 3?

Q: How to reinstall manifold 3?

Frequently Asked Questions

Q: What is manifold 3 used for?

A:  Manifold 3 is used to provide/control the flow of ambient and cold water to the dispense nozzle.

Q: What is connected to Manifold 3?

A:: Still water line from carbonator, Sparkling water line from carbonator, and output from Manifold 3 to nozzle.



Q: Where is Manifold 3 located?

A: Manifold 3 is located on the inside of the door, to the left of the nozzle assembly which is hidden behind the printed restocking instructions card.

Required Tools & Materials

  • #2 Phillips Screwdriver
  • Small Flathead screwdriver
  • Zip ties



Task 1: Remove Manifold 3 Assembly

  1. Open the door and locate Manifold 3.

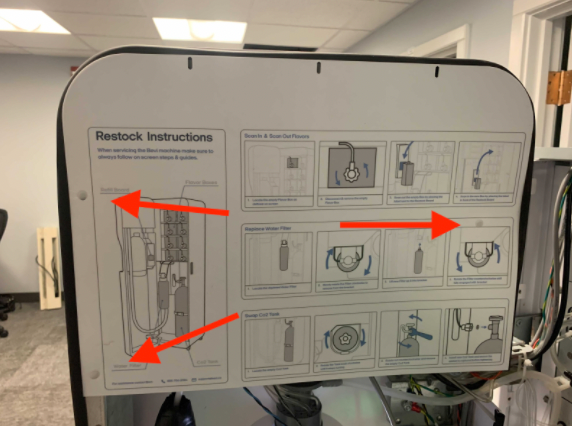

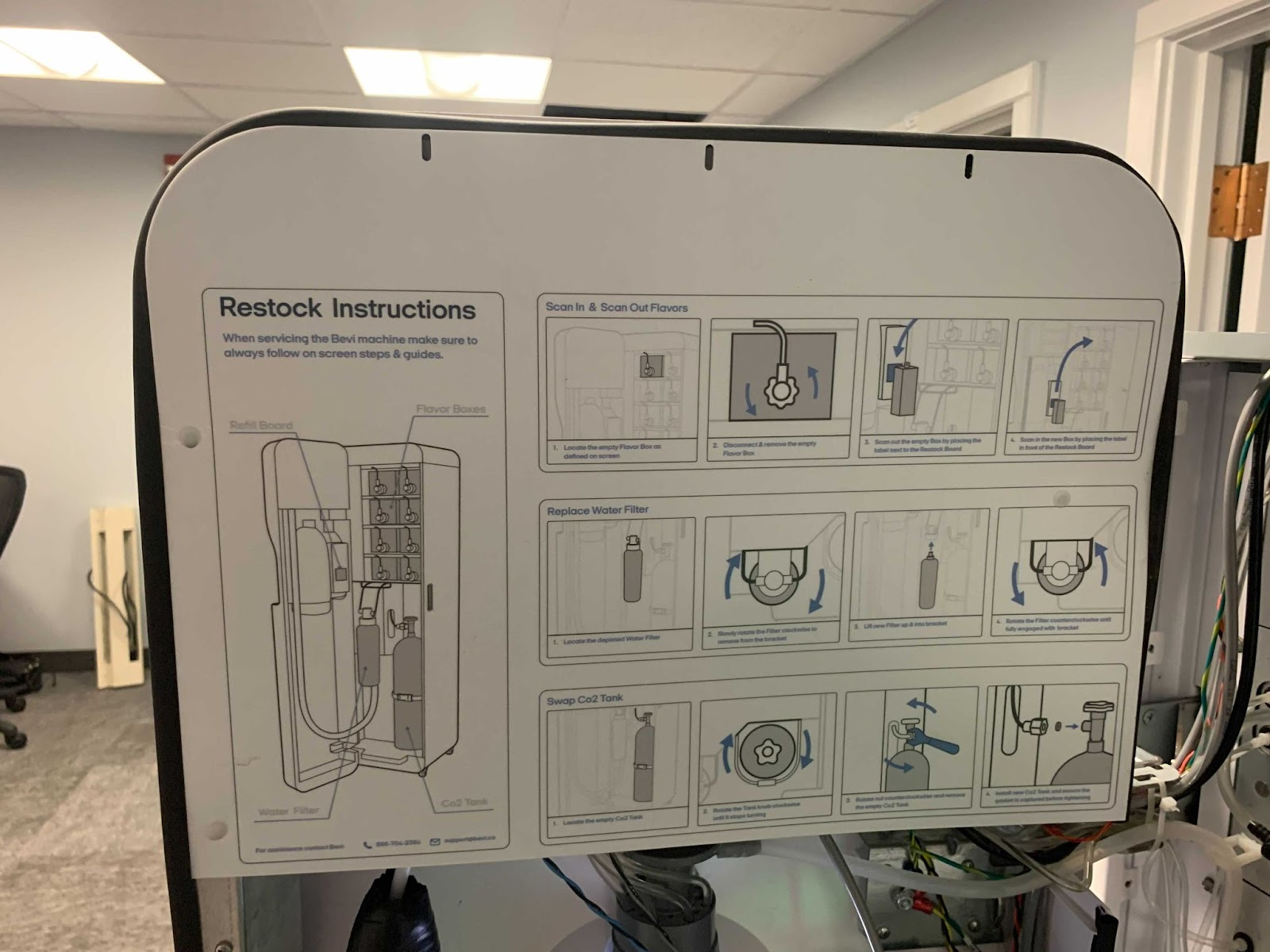

    1. Remove the restock instruction card by carefully removing the 3 plastic rivets securing the card to the door.
    2. Gently pry plastic rivets up using a small flathead screwdriver.

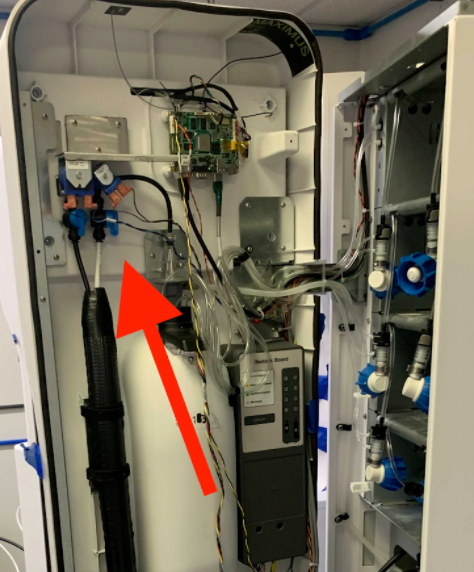

    3. Manifold 3 is located on the inside of the door, to the left of the dispense nozzle.

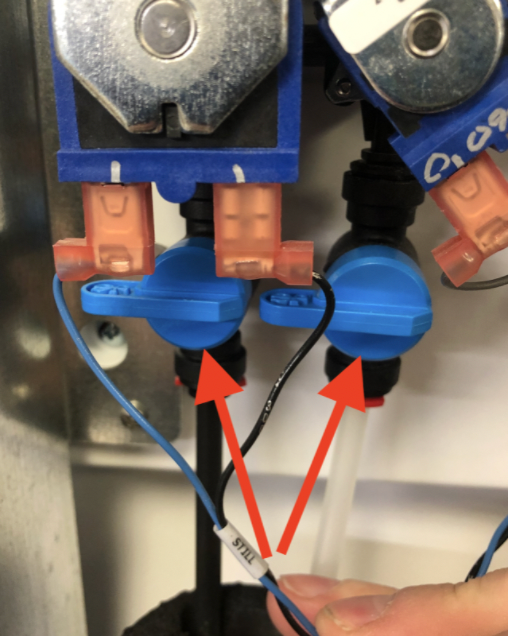

  2. Turn off Still and Sparkling shut off valves.
    1. Each line has its own ¼” ball valve.



  1. From the touchscreen, dispense Still and Sparkling water in order to depressurize the tubes after the shut off valves.  IF you don’t you will have a hard time disconnecting the lines

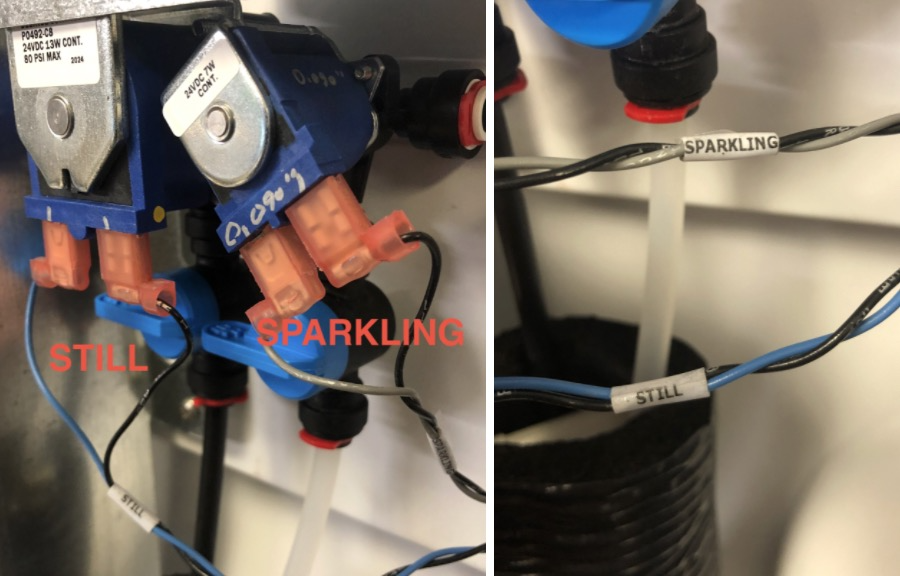

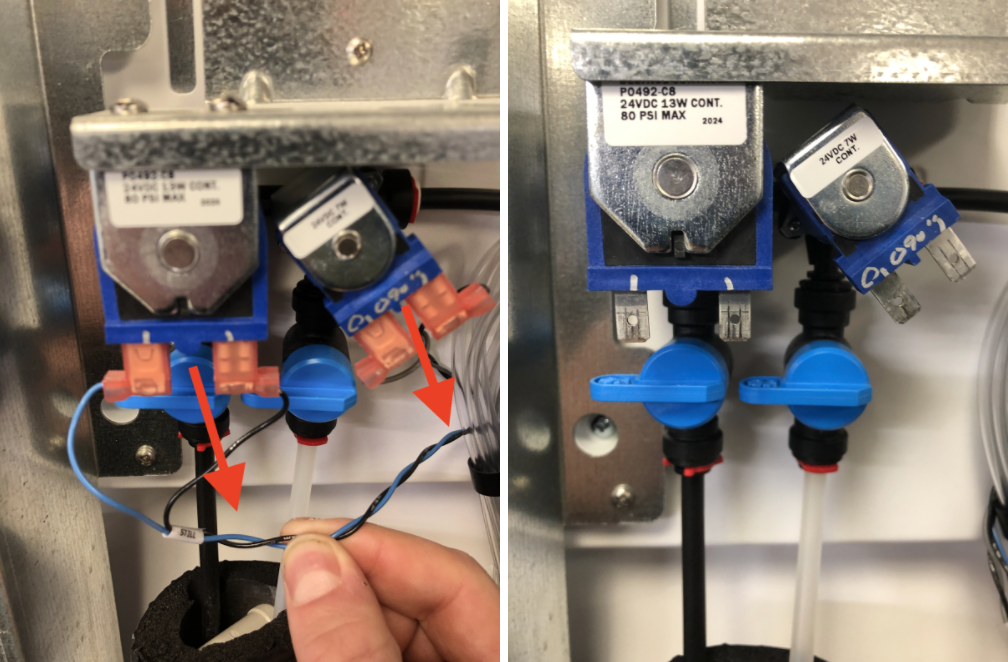

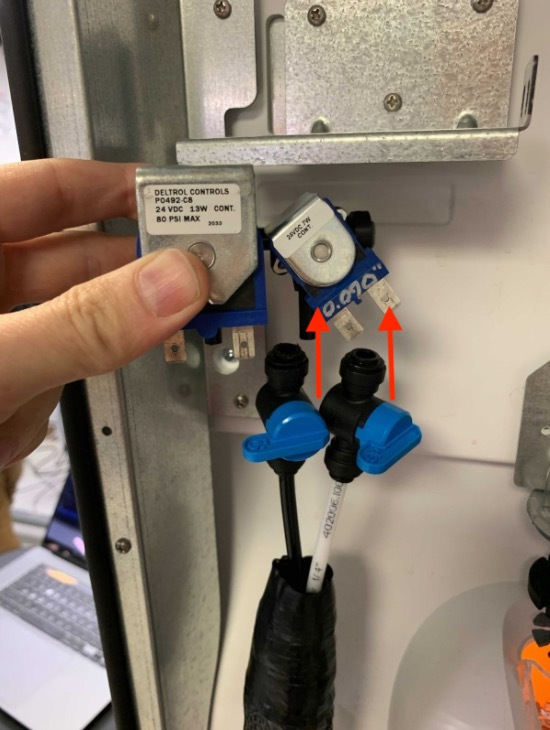

  1. Disconnect wiring connections for both Dispense Solenoids. - Note: Sparkling and Still - the wires are labeled.  The manifold is not - Black line = Still



WARNING: Do not pull directly on wire, this can result in pulling the wire out of the connector.

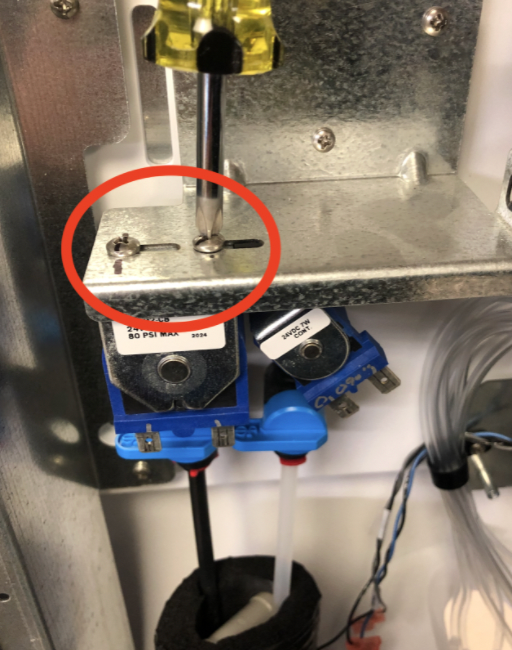

  1. Remove the 2 Phillips screws securing Manifold 3 to the mounting bracket.

NOTE: Do not remove the metal mounting bracket from the door.

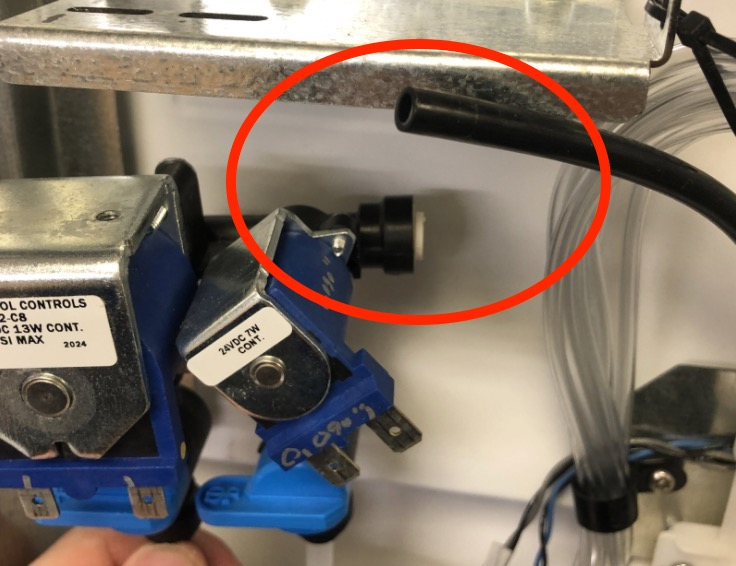

  1. Disconnect ¼” output line to nozzle to allow for easy access to Still and Sparkling tubes.



  1. Disconnect the manifold from both shut of valves, leaving the shut off valves connected to the Still and Sparkling tubes.
    1. Do not remove the shut of valves from the still and sparkling tubes

Task 2: Installing New Manifold 3 Assembly

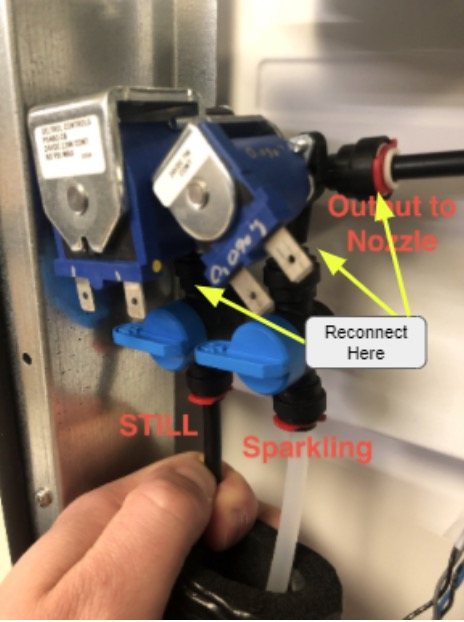

  1. Reconnect Still and Sparkling valves and ¼” output tube to Manifold 3.
    1. The still line is BLACK tubing, the sparkling line is WHITE tubing.
    2. Reinstall red safety clips.



  1. Reinstall the manifold assembly onto the mounting bracket, securing with the 2 Phillips screws.

  1. Reconnect Still and Sparkling dispense solenoid wiring.

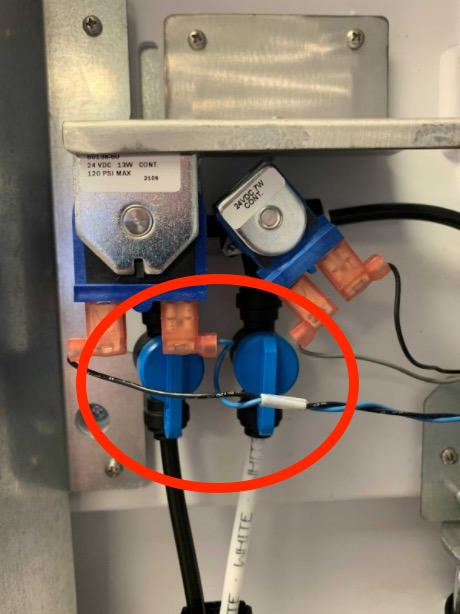

    1. Both pairs of solenoid wiring leads are labeled
      1. Blue and Black wires are for STILL
      2. Black and Grey wires are for SPARKLING
    2. The solenoids do not have a specific polarity, so the wires can be connected either way

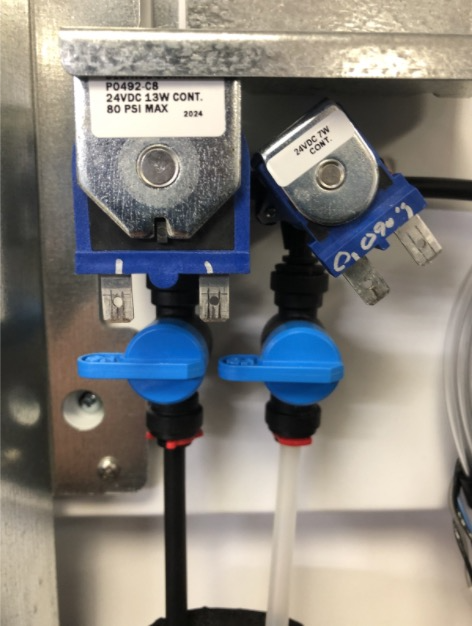

NOTE: The Still Solenoid Valve is the larger one. Sparkling is the smaller valve, rotated on an angle.





  1. Open both still and sparkling shut off valves.
    1. Once open, inspect all tubing connections for leaks
      1. If any leaks are present, check to make sure all tubing connections are fully seated in push-to-connect fittings



  1. Test still and sparkling dispense to ensure Solenoid Valves are functioning properly.



  1. Reinstall restock instruction card on door by reattaching the 3 plastic rivets, making sure the rivets are fully inserted.



NOTE: Ensure that the card is not interfering with the door seal. The card should not overlap the outer edge of the door at all, and should be tucked inside.
