The "Gen 2 CO2 Regulator & Hose Assembly" for Standup 2.0 REQUIRES the use of a different CO2 washer than the Gen 1 CO2 Regulator. The old washer from the Gen 1 regulator assembly is not compatible with the new Gen 2 regulator.
Key Changes:

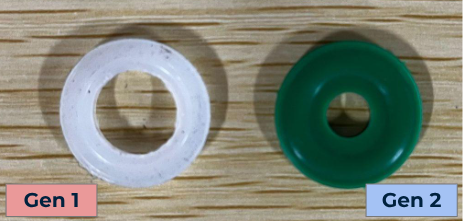

| Key Changes: | OLD Gen 1 Washer | NEW Gen 2 Washer |
|---|---|---|
| Internal Diameter |
Larger inner diameter. | Smaller inner diameter. |
| Washer is captive in high pressure hose fitting. | Washer is NOT captive in high pressure hose fitting. | |
| Washer Color |
Gen 1 washer is WHITE. | Gen 2 washer is GREEN. |
Compatibility

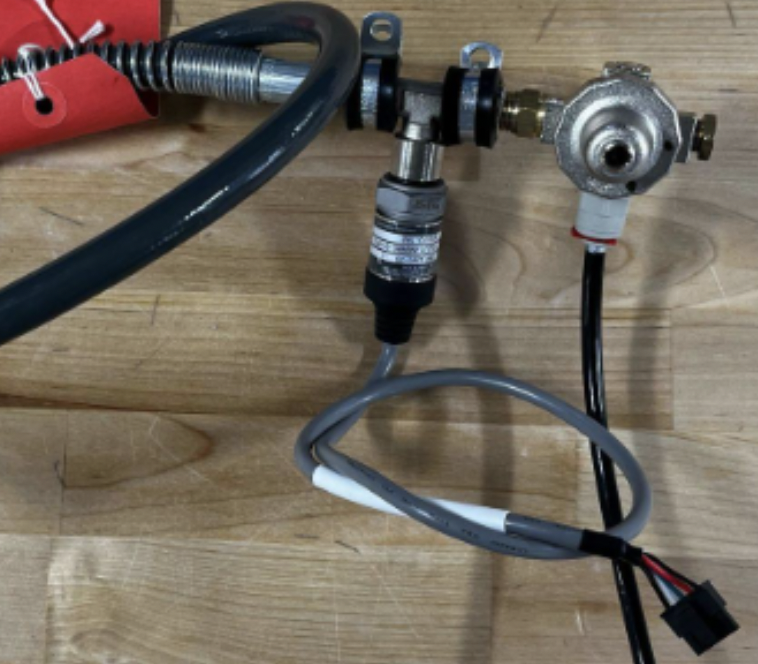

OLD Gen 1 Washer: Use with SU 2.0 "Gen 1" style CO2 Regulator/Hose, P/N: 720-0062 (FRU - CO2 REGULATOR & HOSE ASSEMBLY)
- Replacement washer part number 720-0143: FRU - WASHER, CO2 REGULATOR.
- ONLY the Gen 1 2.0 CO2 Regulator will use this larger-diameter WHITE washer.
- This white washer is not compatible with the Gen 2 Standup 2.0 regulator, or with any other CT or Standup CO2 regulators.

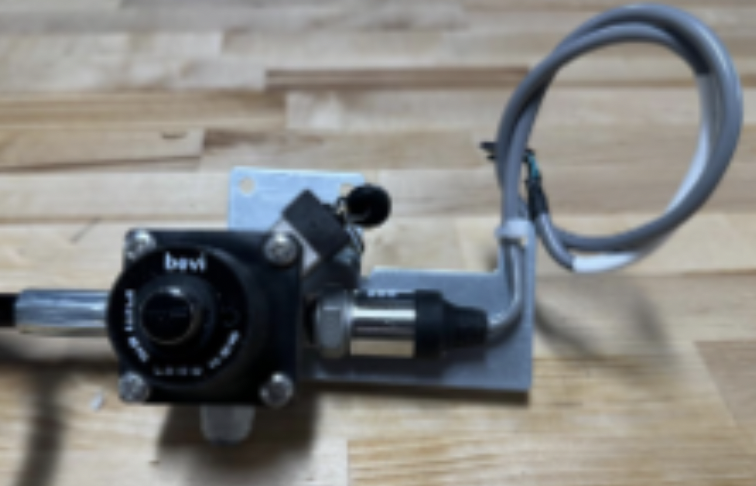

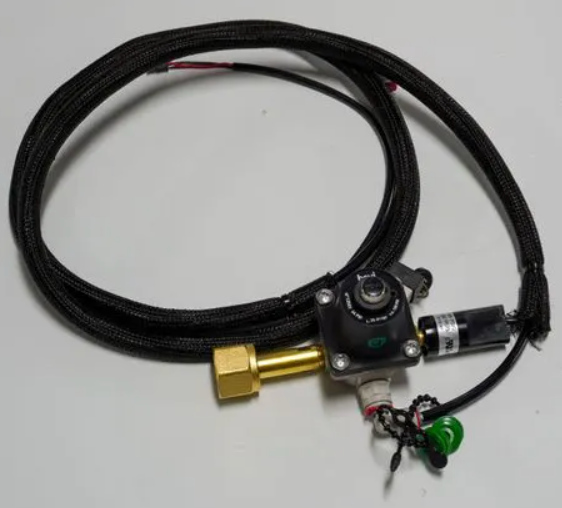

NEW Gen 2 Washer: Use with SU 2.0 "Gen 2" style CO2 Regulator/Hose, P/N: 720-0275 (FRU - CO2 REGULATOR & HOSE ASSEMBLY).

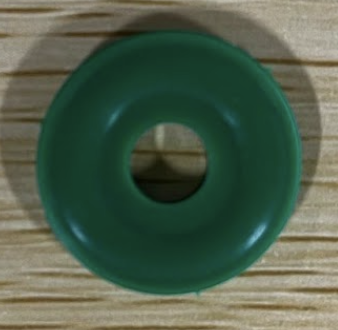

- Replacement washer part number 720-0276: FRU - CO2 REGULATOR GASKET 5-PACK.
- New FRU 720-0276 (green) replaces 720-0250 as FRU - CO2 REGULATOR GASKET, 5-PACK going forward.
- The Gen 2 GREEN washer is also compatible with SU 1.5, 1.0, 0.75, and all Countertop CO2 Regulators.
| CO2 Regulator Replacement Washer Compatibility Matrix | 720-0143 FRU, WASHER, CO2 REGULATOR |
720-0276 FRU, CO2 REGULATOR GASKET 5-PACK |
|
| Regulator Version | |||
| 720-0062 (SU 2.0, Gen 1) FRU: OLD V2 CO2 REGULATOR |
|||
| 720-0275 (SU 2.0, Gen 2) FRU: CO2 REGULATOR & HOSE ASSEMBLY |
|||

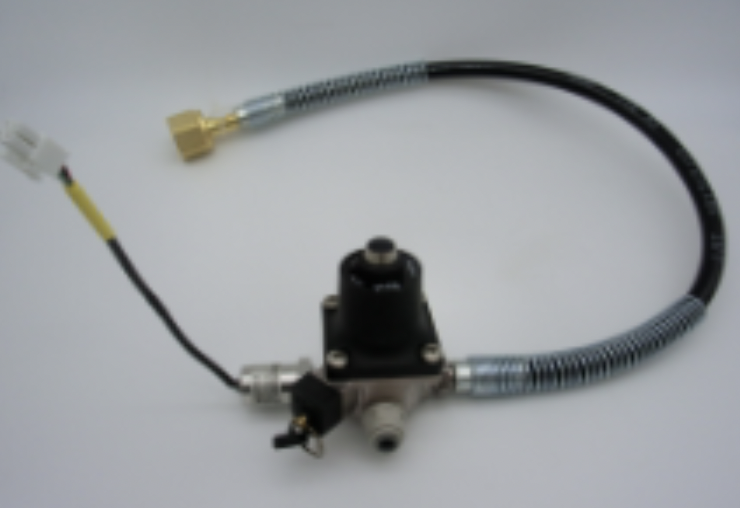

| 720-0071 (SU 1.5) FRU: CO2 Regulator, 1/4", 120 PSI w/Transducer |
|||
| 720-0218 (SU 1.0, 0.75, CT 1.0) FRU, CO2 Regulator, 3/8", 120 PSI |
|||
| 720-0320 (CT 1.5 Compact Chiller) FRU - CO2 REGULATOR, 0.25", 64 PSI |
|||
