[HARDWARE CHANGE NOTICE] Countertop Leak Detector & Pads - July 2024

Updated

Overview

From July 2024 on, a new leak detector assembly is used for Bevi Countertop Units, as well as new replacement leak detector pads (consumable) and tray.

The new replacement leak detector pads work with both the new and old leak detectors (backward compatible). However, the old pads only work with the old leak detector.

Additionally, the new and old leak detector units and tray hardware are not interchangeable.

In this article (click to jump):

Quick Reference

  • Have the older/original leak detector unit? It can take BOTH the old and new style of replacement pads.
  • Need to order replacement leak detector pads? Order the new pads (FRU P/N #720-0279), which are backward-compatible to work with both types of leak detectors.
    The older style (#720-0249) were discontinued from the ordering site on 7/16/24.
  • Already have some of the older/original pads on-hand? You can still use them, but only in the older/original "Gen 1" leak detector. Do not use older "Gen 1" pads in the new leak detector (Gen 2 "spring" style - see images below to confirm).

Compatibility Chart

OLD Gen 1: (720-0152)
Leak Detector, 3/8 Tube Fitting
a42b2dd9-6f43-466d-a275-2298019f4afe 		NEW Gen 2: (720-0281)
Spring Leak Detector
CT_new leak detector_transp.png
OLD FRU P/N #720-0249
Leak Detector Pucks, 2-Pack
✅ 		OLD FRU P/N #720-0249
Leak Detector Pucks, 2-Pack
❌
NEW FRU P/N #720-0279
Spring Leak Detector Pads, 2-Pack
✅ 		NEW FRU P/N #720-0279
Spring Leak Detector Pads, 2-Pack
✅
OLDGen 1: 720-0230 FRU - Carbonator Tray w/Leak Detector
(Not compatible with Gen 2 Leak Detector or Parts) 		NEW Gen 2: FRU P/N 720-0282
FRU - Carbonator Tray w/Spring Leak Detector
(Not compatible with Gen 1 Leak Detector or Parts)



Key Technical Specs

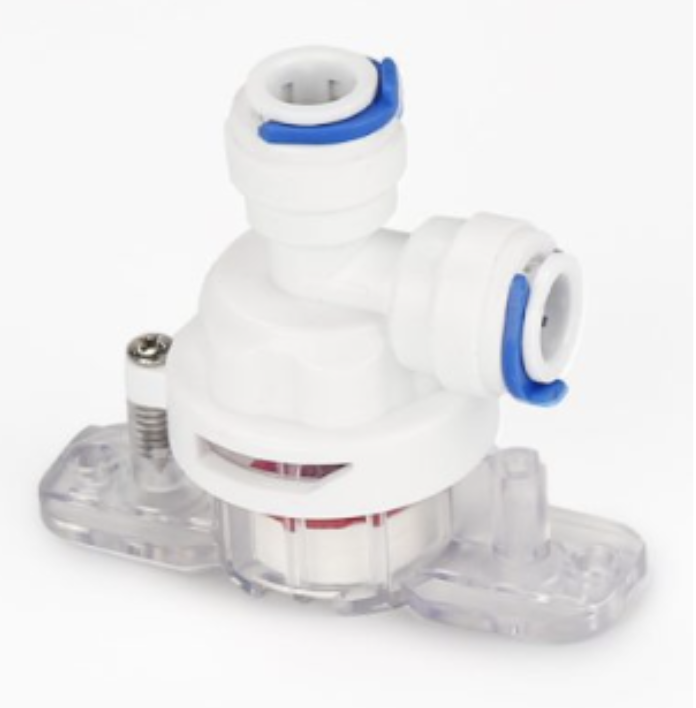

OLD “Gen 1” Leak Detector: FRU P/N #720-0152 (Leak Detector, 3/8 Tube Fittings)
  • Eastcooler Leak-02
  • Resetting: Replacing pads in Gen 1 may require tubes to be disconnected, and the top half of the leak detector to be removed to reset the valve.
  • Replacement Pad: FRU P/N #720-0249 Leak Detector Pucks, 2-Pack.
    •
      • Has larger outer diameter than the newer Gen 2 pads.
      • Only works with older Gen 1 leak detector; will NOT function in the new Gen 2 Spring Leak Detector.
      • Gen 1 Pad Dimension: 0.78” OD x 0.34”H
  • Tray Assembly: P/N #720-0230 Carbonator Tray w/Leak Detector; is NOT compatible with the Gen 2 Leak Detector.

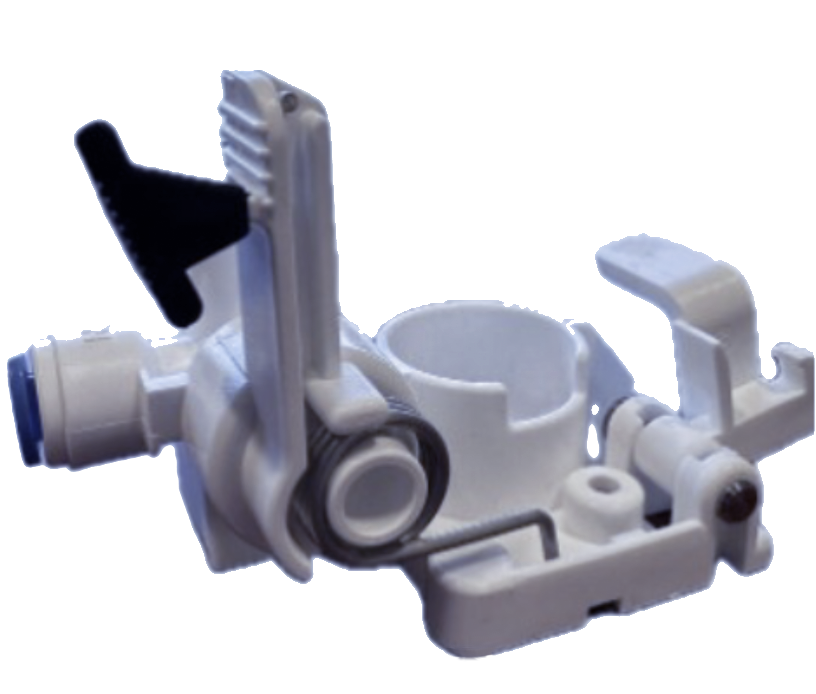

NEW“Gen 2” Leak Detector: FRU P/N #720-0281 (Spring Leak Detector)
  • Neofit LD01E66-AW
  • Resetting: Replacing pads in the Gen 2 Spring Leak Detector does not require disconnecting any tubes. Spring Leak Detector is reset by simply replacing the pad, and resetting the spring latch.
  • Replacement Pad: FRU P/N #720-0279 Spring Leak Detector Pads, 2-Pack.
    •
      • Has smaller outer diameter than Gen 1 pads.
      • Backwards compatibility: Works with both Gen 1 and Gen 2 Leak Detectors.
      • Gen 2 Pad Dimension: 0.67” OD x 0.41”H
  • Tray Assembly: The new Gen 2 Spring Leak Detector requires an updated Carbonator Tray.
    •
      • FRU P/N #720-0282 Carbonator Tray w/Spring Leak Detector
      • Screw mount locations are different from Gen 1 Leak Detector.

Video Overview

bevi droplet favicon.png If you have any questions or need further assistance, please contact Bevi Technical Services at support@bevi.co, or call our support line at 866-704-2384 (BEVI)
