Ice Bank Fill Solenoid Current Too Low/Too High (CT 1.5 Install Dx)

Required Tools

• Phillips Screwdriver (#2)

Before Continuing

During the Install Diagnostics test, the filter should not be installed, and water and CO2 should not yet be turned on. If these steps have already been done:

• Turn off water supply
• Turn off the CO2 tank by rotating the handle clockwise until it stops.
• Drain the Buffer tank.

Troubleshooting Steps

Task 1: Power Off the Bevi.

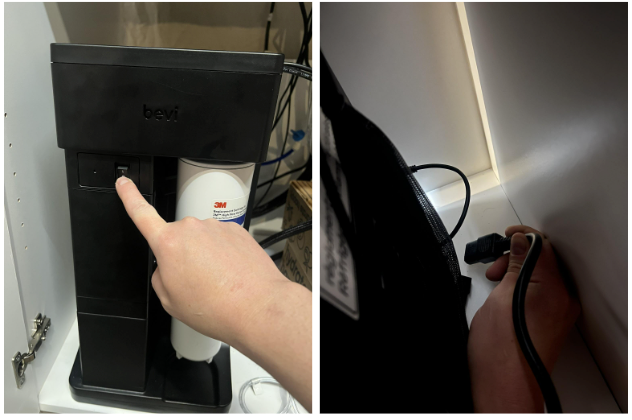

1. Power off the Bevi using the power switch on the front of the chiller.
2. Disconnect the power cord from the back of the chiller.

Task 2: Remove the chiller from the cabinet.

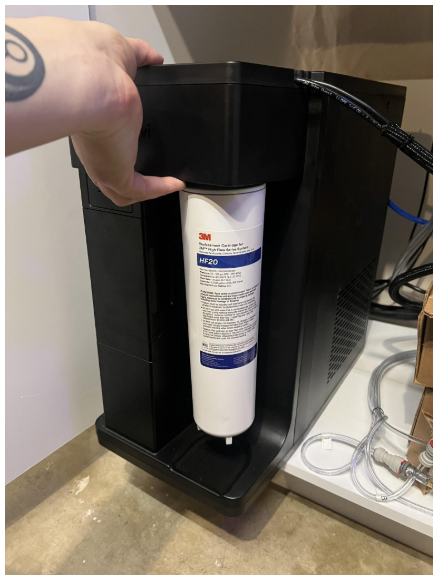

1. Carefully lift the front of the chiller so the locating tabs on the bottom can come up and out of the ventilation holes.
2. Slide the chiller forward so the front hangs over the edge of the cabinet.

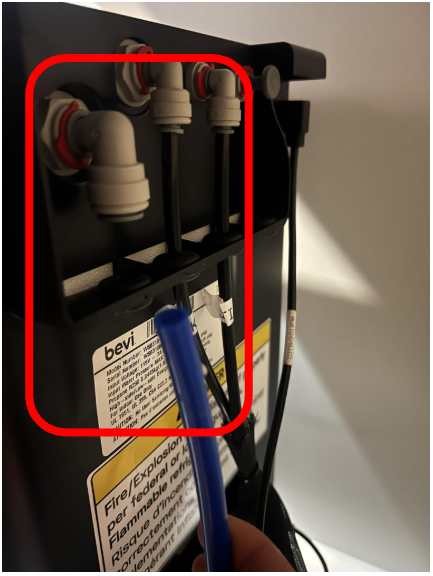

3. Remove the red locking clip and disconnect the 3/8" water supply line from the back of the chiller.
   •
     • This step may not be necessary if there is enough slack on the water line to fully remove the chiller without putting tension on the tubing.

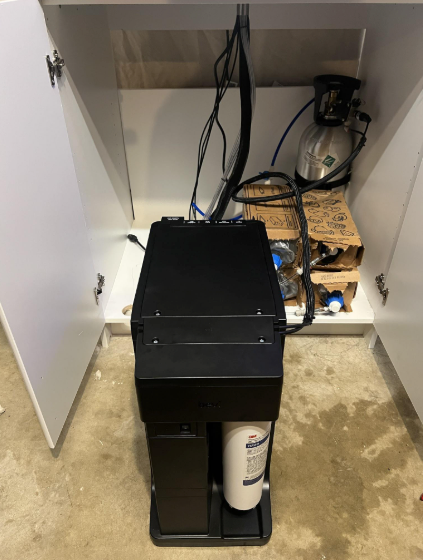

4. Lifting from the front and the rear grab handle, carefully lift the chiller out of the cabinet and place on the floor.

Task 3: Remove the top panel.

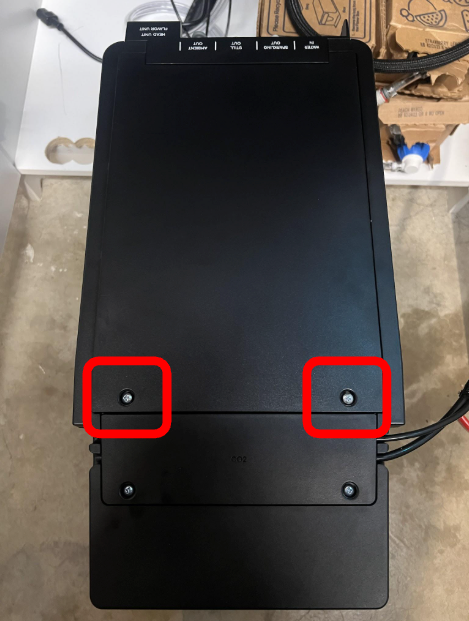

1. Using a #2 Phillips screwdriver, loosen the two screws securing the top panel of the chiller.

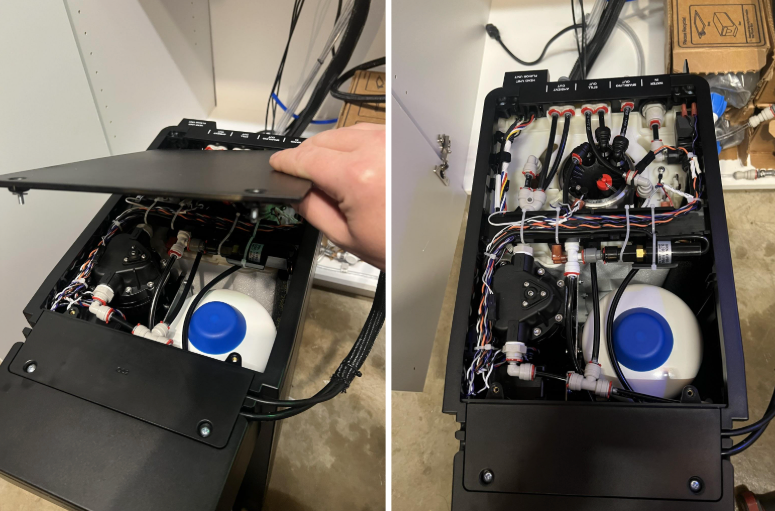

2. With the screws fully loosened, lift the front of the panel up, and slide forward to release the rear locating tabs.
3. Place the panel to the side.

Task 4: Remove the PCB panel.

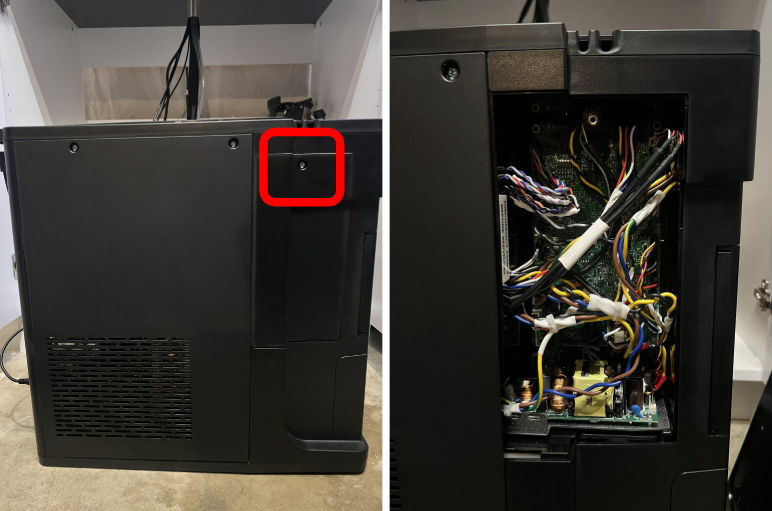

1. Using a #2 Phillips screwdriver, loosen the two screws securing the PCB panel on the left side of the chiller.
2. With the screws fully loosened, lift the panel to release the lower locating tab and remove.
3. Place the panel to the side.

Task 5: Inspect the Ice Bank Solenoid wiring connections.

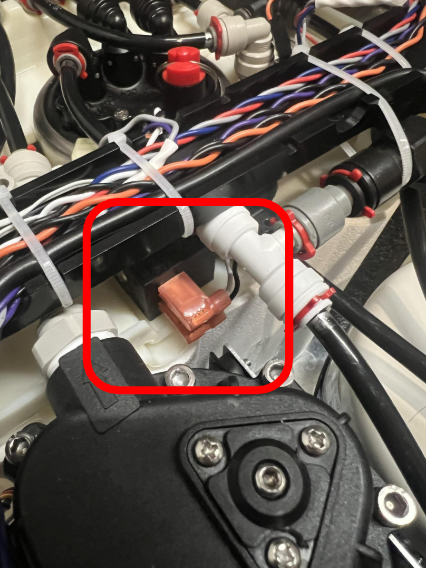

1. Locate the Ice Bank Solenoid at the top of the chiller, in the back right corner.
2. Inspect the two wires and connectors for any visible damage or loose connections.
   • If there is any damage to the cable or connector, please contact Bevi Support at 866-704-2384.
3. If the wires are disconnected, reconnect them to the Inlet Solenoid.
   • There is no polarity so it does not matter which orientation the wires are connected.

Task 6: Inspect the Valves and Agitator cable connection at the BUC Board.

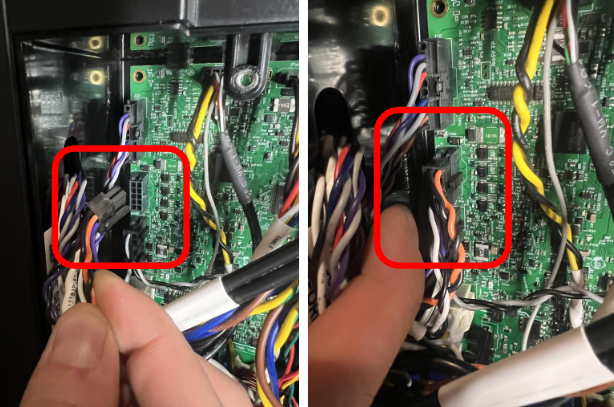

1. Locate the Valves and Agitator connector on the BUC Board.
2. Inspect the Valves and Agitator harness.
   • Confirm that the harness is connected to the BUC Board.
   • Inspect the wires and connector for any visible damage or loose pins.
     • If there is any damage to the cable or connector, please contact Bevi Support at 866-704-2384.
3. Gently disconnect, and reconnect the Valves and Agitator cable.
   • There is a lock latch on the connector that needs to be depressed to disconnect the cable.
   • When reconnecting, ensure the connector is fully seated and clicks into place.

Task 7: Reinstall the Chiller.

1. Reinstall the top panel, and the PCB panel.
   • Take care not to pinch any wiring in the panels.
   • Ensure the locating tabs slot into place
   • Tighten the screws to secure the panel.
2. Reconnect the chiller power cord.
3. Carefully lift the chiller into place in the cabinet.
   • Ensure the locating tabs on the bottom of the chiller fit into the ventilation holes and the chiller sits flush on the base of the cabinet.
4. If it was disconnected during removal, reconnect the 3/8" water supply tube.
   • Ensure the tubing is fully seated into the push to connect fitting.
   • Reinstall the red locking clip.
5. Power on the chiller.

Task 8: Repeat the Diagnostic Test

1. Once the Bevi starts up, continue through the Install Wizard back to the diagnostics step.
2. Rerun the test.
   • If the test passes, continue with Installation.
   • If the test continues to fail, please contact Bevi Support at 866-704-2384 (BEVI)
