Dispense Detect Pressure Too High/Low or Not Connected (CT 1.5 Install Dx)

Updated

Required Tools & Parts

  • #2 Phillips screwdriver

Before Continuing

During the Install Diagnostics test, the filter should not be installed, and water and CO2 should not yet be turned on. If these steps have already been done:

  • Turn off water supply
  • Turn off the CO2 tank by rotating the handle clockwise until it stops.
  • Remove the filter.
  • Drain the Buffer tank.

Troubleshooting Steps

Task 1: Repeat the Diagnostic Test

  1. Verify water and CO2 are turned off, and filter is NOT installed.
  2. Restart the diagnostic tests to see if it passes on the second attempt.
  3. If the test continues to fail, power cycle the Bevi via the power switch on the front of the chiller.
    • Navigate back through the installation steps to the Install Diagnostic step and repeat the test.
    • If the test continues to fail, continue to Task 2.

Task 2: Drain the Buffer Tank.

  1. The water supply should not have been opened yet at this point of installation.
    • If the water supply was turned on, turn it off.
  2. Open the access door on the front of the chiller.

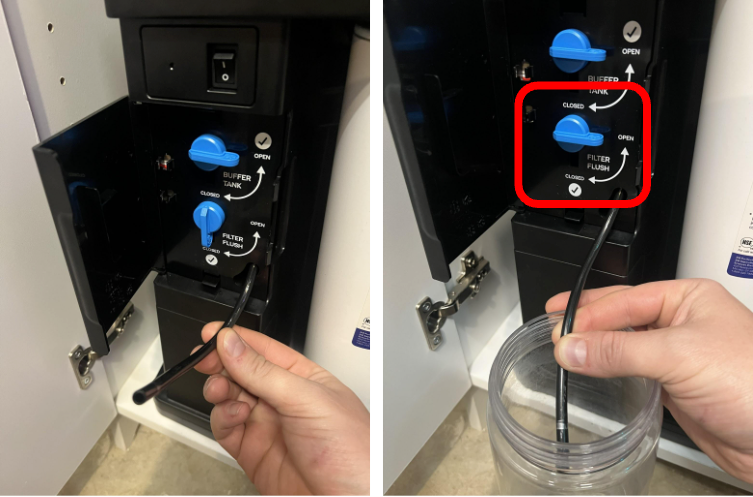

  3. Pull the filter flush tube out of the clips, and run it into a bucket or container.
  4. Open the filter flush valve to drain any water from the buffer tank.
    • Once empty, close the filter flush valve.

filter flush compact chiller.png

  1. Restart the install diagnostics test.
    • If the test passes, continue with installation.
    • If the test fails, continue to the next steps to check the pressure sensor cable.

Task 3: Remove the chiller from the cabinet.

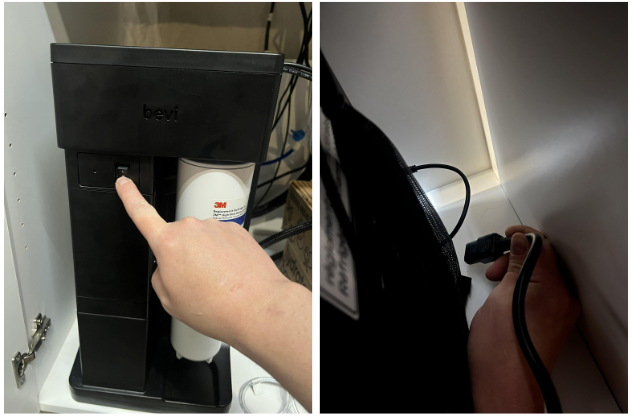

  1. Power off the Bevi using the power switch on the front of the chiller.
  2. Disconnect the power cord from the back of the chiller.

CT 1.5 power off chiller switch unplug plug.png

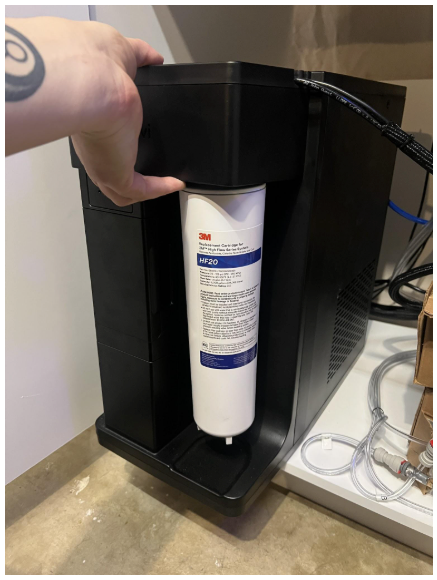

  1. Carefully lift the front of the chiller so the locating tabs on the bottom can come up and out of the ventilation holes.
  2. Slide the chiller forward so the front hangs over the edge of the cabinet.

CT 1.5 compact chiller pull out remove slide cabinet.png

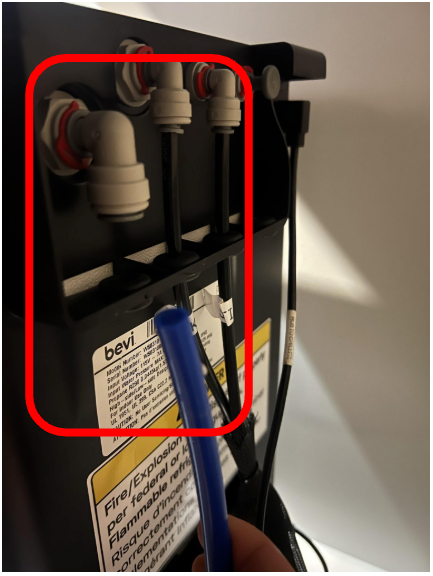

  1. Remove the red locking clip and disconnect the 3/8” water supply line from the back of the chiller.
    • This step may not be necessary if there is enough slack on the water line to fully remove the chiller without putting tension on the tubing.

CT 1.5 compact chiller water in disconnected tube.png

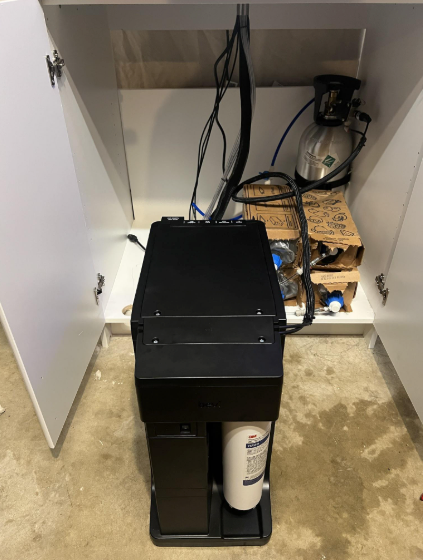

  1. Lifting from the front and the rear grab handle, carefully lift the chiller out of the cabinet and place on the floor.

on floor sitting outside cabinet pulled out CT 1.5 compact chiller.png

Task 4: Remove the left side panel.

  1. Using a #2 Phillips screwdriver, loosen the two screws securing the top panel of the chiller.
  2. With the screws fully loosened, lift the front of the panel up, and slide forward to release the rear locating tabs.
  3. Place the panel to the side.

left side panel removed compact chiller ct 1.5.png

Task 5: Remove the PCB panel.

  1. Using a #2 Phillips screwdriver, loosen the screw securing the PCB panel on the left side of the chiller.
  2. With the screws fully loosened, lift the panel to release the lower locating tab and remove.
  3. Place the panel to the side.

left panel and PCB buc panel removed compact chiller CT 1.5.png

Task 5: Inspect the Dispense Pressure Sensor Connection.

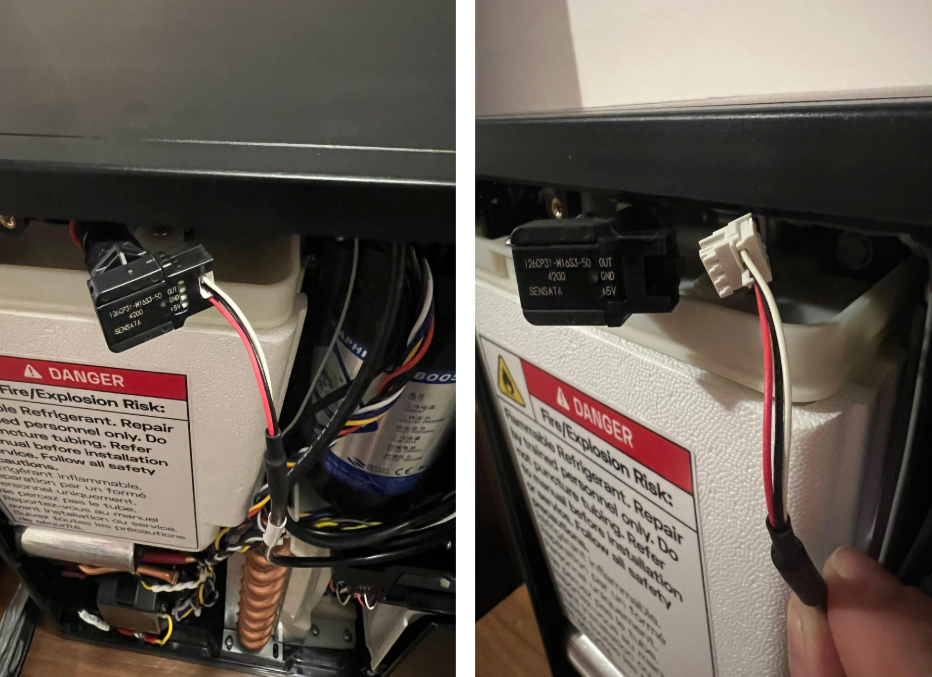

  1. Locate the Dispense Pressure Sensor at the top of the chiller, above the ice bank.
  2. Carefully pull the sensor out of the side of the chiller to access the connector.
  3. Inspect the sensor cable and connector.
    • Confirm that the connector is fully seated in the sensor.
    • Inspect the wires and connector for any visible damage.
      • If there is any damage to the cable or connector, please contact Bevi Support at 866-704-2384 (BEVI).
  4. Gently disconnect, and reconnect the Dispense Pressure Sensor.
    • There is a lock latch on the connector that needs to be depressed to disconnect the cable.
    • When reconnecting, ensure the connector is fully seated and clicks into place.

Task 6: Inspect the Pressure Sensor Harness Connection.

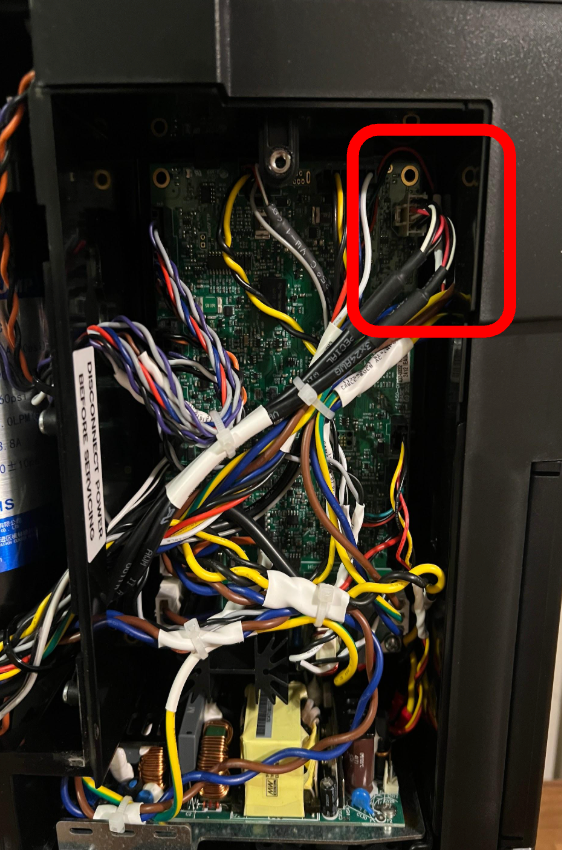

  1. In the PCB panel, locate the Pressure Sensor harness on the BUC Board.

pressure sensor harness connection on BUC board compact chiller.png

  1. Inspect the Pressure Sensor harness.
    • Confirm that the sensor harness is connected to the BUC Board.
    • Inspect the wires and connector for any visible damage.
      • If there is any damage to the cable, connector, or loose pins, please contact Bevi Support at 866-704-2384 (BEVI).

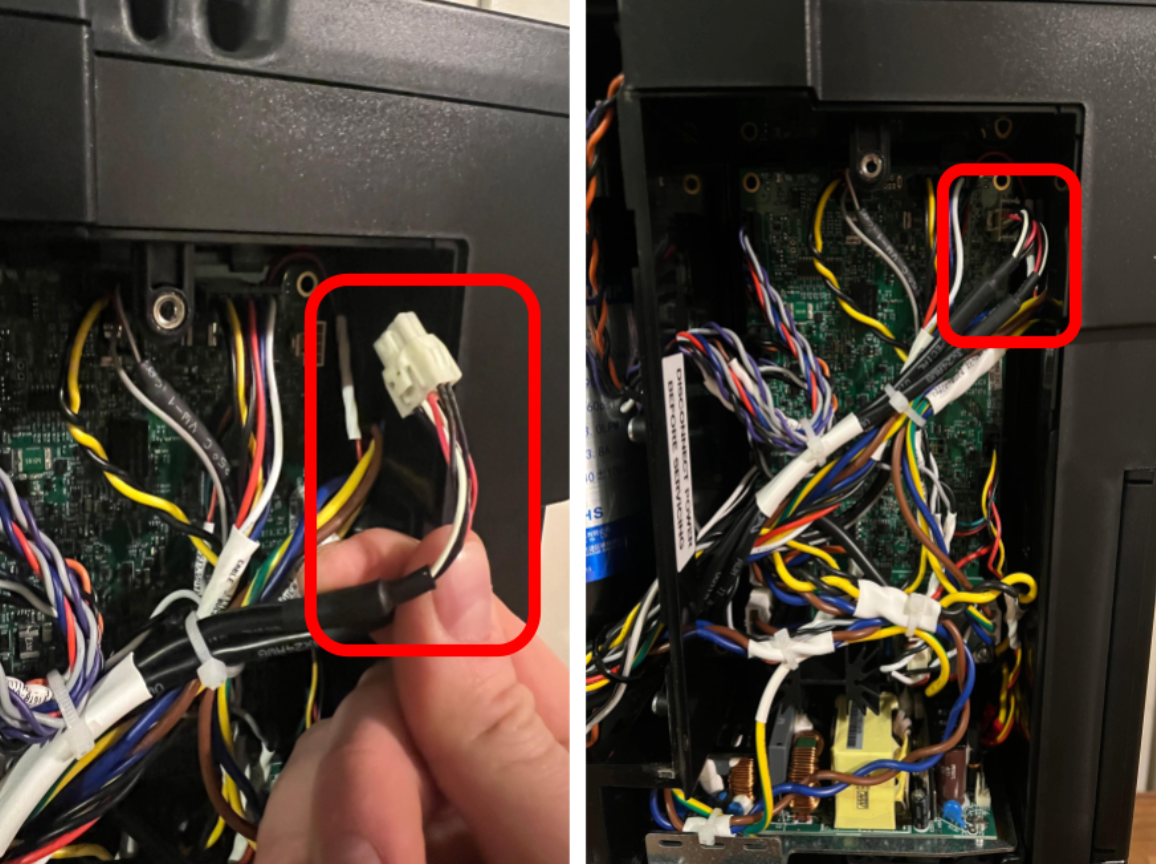

  2. Gently disconnect, and reconnect the Pressure Sensor Harness.
    • There is a lock latch on the connector that needs to be depressed to disconnect the cable.
    • When reconnecting, ensure the connector is fully seated and clicks into place.

pressure sensor sense harness compact chiller.png

Task 7: Reinstall the Chiller.

  1. Reinstall the left side panel, and the PCB panel.
    • Take care not to pinch any wiring in the panels.
    • Ensure the locating tabs slot into place
    • Tighten the screws to secure the panel.
  2. Reconnect the chiller power cord.
  3. Carefully lift the chiller into place in the cabinet.
    • Ensure the locating tabs on the bottom of the chiller fit into the ventilation holes and the chiller sits flush on the base of the cabinet.
  4. If it was disconnected during removal, reconnect the 3/8” water supply tube.
    • Ensure the tubing is fully seated into the push to connect fitting.
    • Reinstall the red locking clip.
    • Do NOT turn the water supply on yet.
  5. Power on the chiller.

Task 8: Repeat the Diagnostic Test

  1. Once the Bevi starts up, continue through the Install Wizard back to the diagnostics step.
  2. Rerun the test.
    • If the test passes, continue with installation.
    • If the test continues to fail, please contact Bevi Support at 866-704-2384
